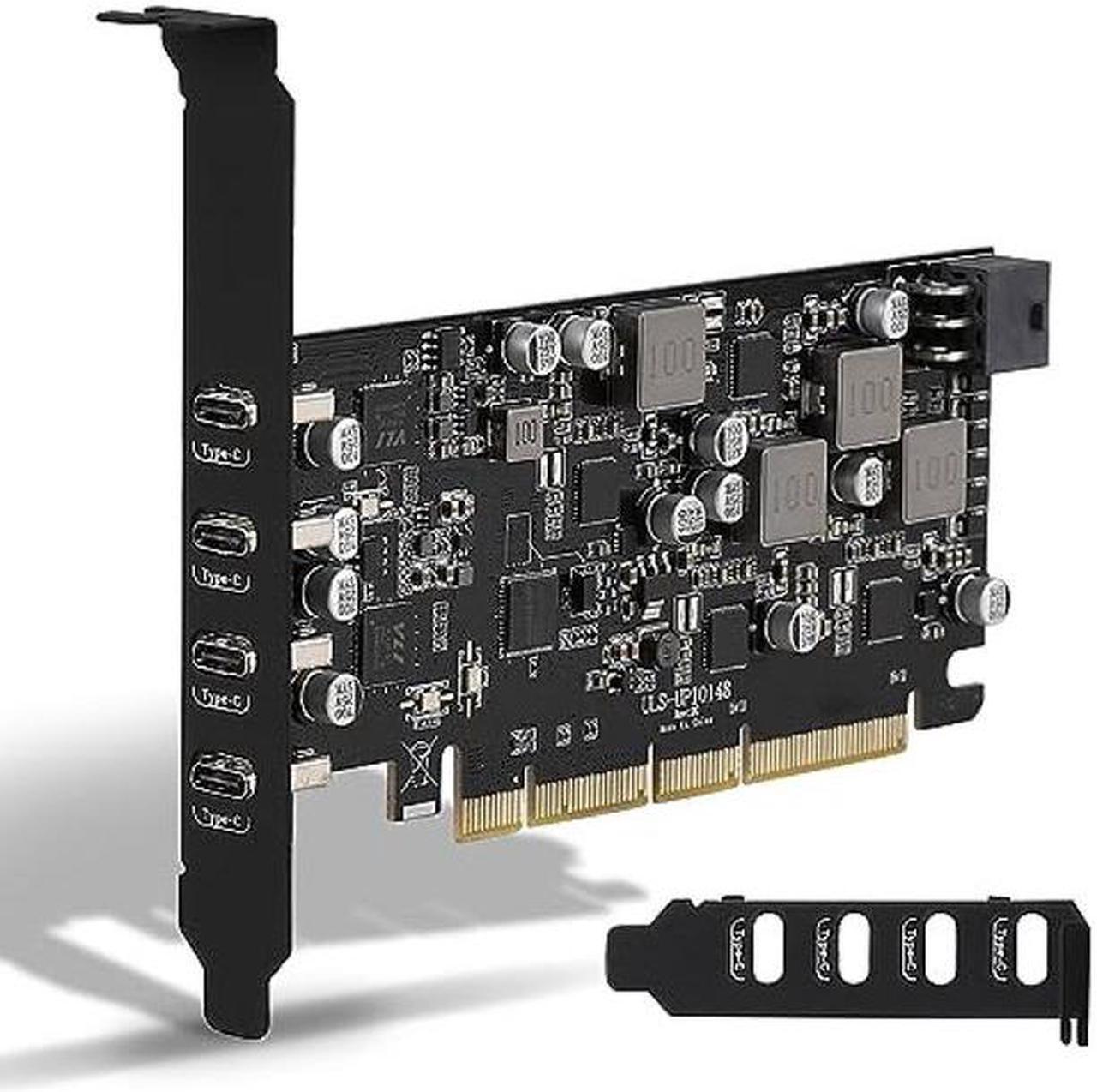

Sinefine USB PCIe Card Power Delivery 4 USB Type-C Ports, PCIe USB3.1(USB 3.2 Gen 2) with 10 Gbps Motherboard Card for PC Desktop, Support WindowsXP/7/8/10 and MAC OS

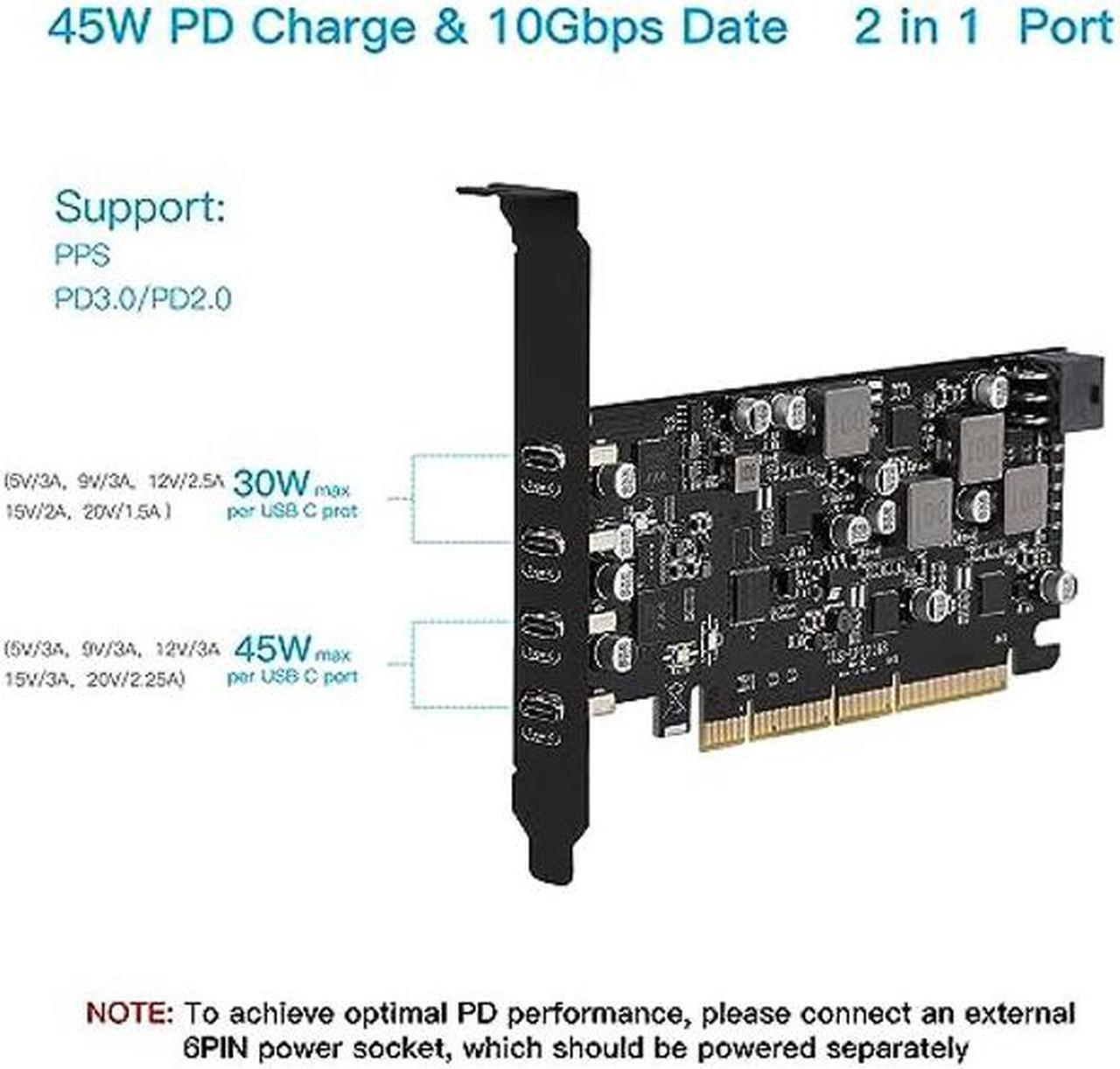

- [(Pice Card Super Power Delivery)] The product can provide you with 4 USB C ports. The 2 USB C ports support power delivery protocol and can provide up to 30W charging power per port, the rest of 2 USB C ports support power delivery protocol and can provide up to 45W charging power to recharge your phone, tablet or even laptop. All port support PPS/PD3.0/PD2.0. NOTE: To achieve optimal PD performance, please connect an external 6PIN power socket, which should be powered separately.

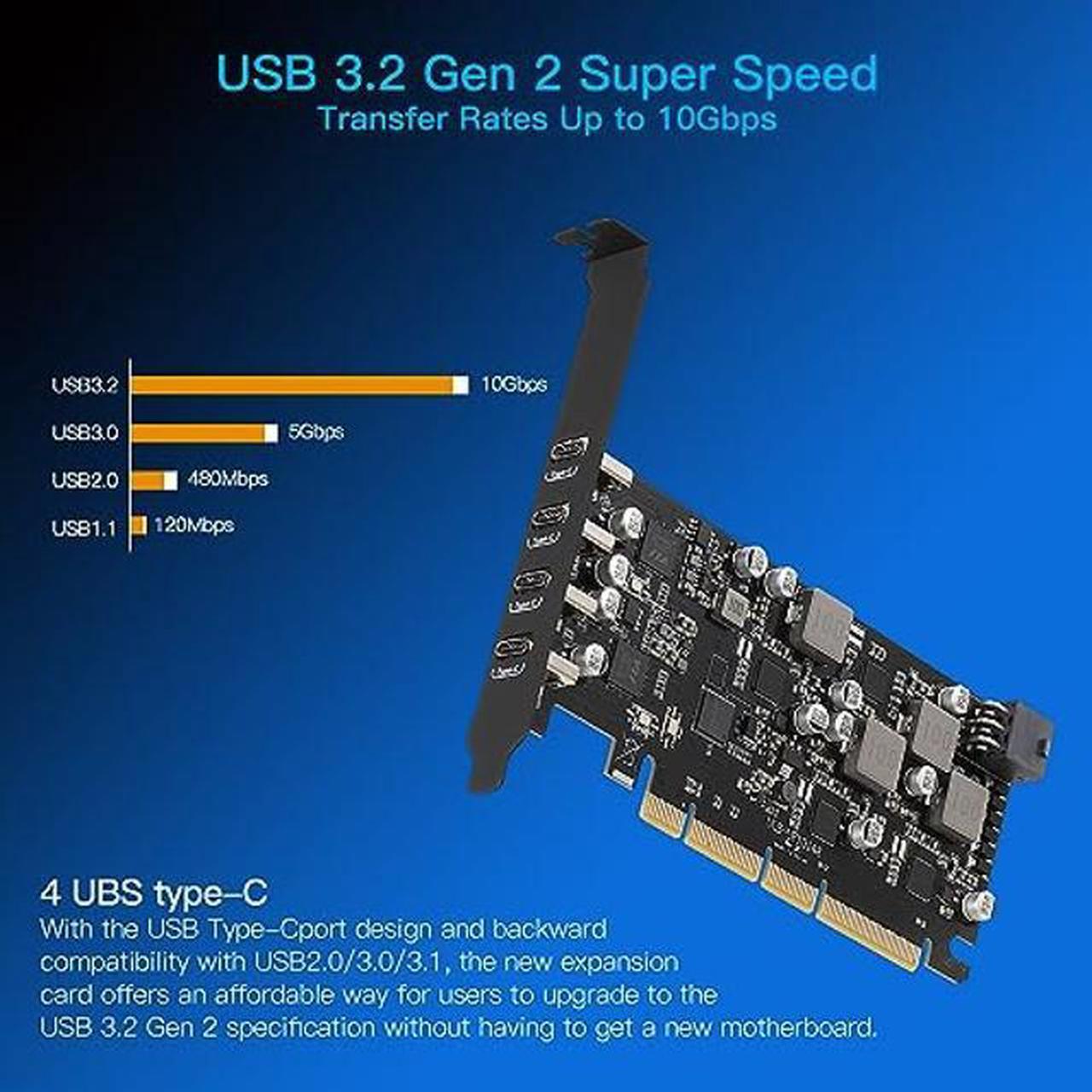

- [(Fast Transmission Speed)] With the newest USB 3.2 Gen 2 standard, each port can reach up to 10 Gbps transfer rate when used solely. Capable of transmitting your ultra large file within seconds and improving working efficiency. With the USB Type-C port design and backward compatibility with USB2.0/3.0/3.1, the new expansion card offers an affordable way for users to upgrade to the USB 3.2 Gen 2 specification without having to get a new motherboard.
- [(Flexible Power Supply Modes)] It can be used witho
+
+
Overview
Specs
Reviews
Product Dimensions
Product dimensions: 148*65*21mm ( 5.8 * 4.3 * 0.8 in)
Note:
1. Equipped with a Low-profile bracket. The overall size of the PCI-E card is 5.8 (in) in length and 4.3 (in) in height, The height of the iron sheet is 0.8 (in), It apply to small computers and servers chassis, like 1U and 2U.
2. The USB-C port is vertical. The vertical height is approximately 0.62 in. Please check the height of the expansion slot on the back of the computer host before choosing, to avoid the narrow expansion slot of the host computer that prevents the male port of the USB device from being plugged into the female PCIe card port.
3. Install the driver before inserting the USB card. In addition, for some special motherboards Windows 10/11 System there is no way to recognize the card, Please contact your motherboard vendor for additional USB drivers.
Frequently asked questions:
Why 10Gbps speed not achieved?
1. Please contact the manufacturer of the motherboard and check the following information.
1). PCI-E slot protocol requires PCIe version 3.0 or higher.

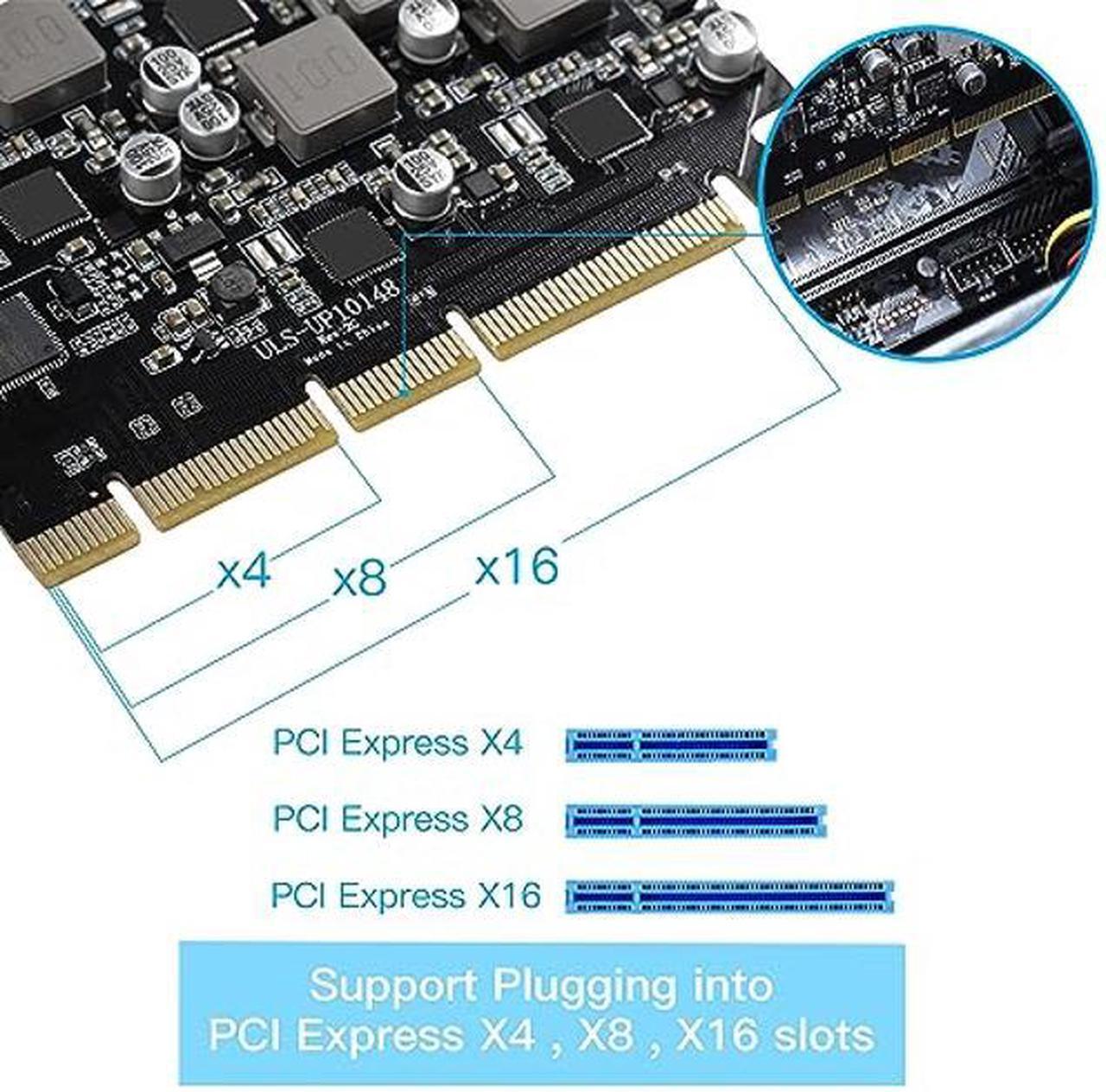

2). The lanes assigned to the PCI-E interface are x4 or higher (The lanes assigned to the PCI-E interface are x4 or higher.
2. When using a USB pcie card, USB devices have performance limitations on the throughput/performance of the card's data transfer. This depends on the USB protocol and cable material of the end device. you can check if your external USB device supports 10Gbps bandwidth by consulting your external USB device vendor.
Product dimensions: 148*65*21mm ( 5.8 * 4.3 * 0.8 in)
Note:
1. Equipped with a Low-profile bracket. The overall size of the PCI-E card is 5.8 (in) in length and 4.3 (in) in height, The height of the iron sheet is 0.8 (in), It apply to small computers and servers chassis, like 1U and 2U.
2. The USB-C port is vertical. The vertical height is approximately 0.62 in. Please check the height of the expansion slot on the back of the computer host before choosing, to avoid the narrow expansion slot of the host computer that prevents the male port of the USB device from being plugged into the female PCIe card port.
3. Install the driver before inserting the USB card. In addition, for some special motherboards Windows 10/11 System there is no way to recognize the card, Please contact your motherboard vendor for additional USB drivers.
Frequently asked questions:
Why 10Gbps speed not achieved?
1. Please contact the manufacturer of the motherboard and check the following information.
1). PCI-E slot protocol requires PCIe version 3.0 or higher.
2). The lanes assigned to the PCI-E interface are x4 or higher (The lanes assigned to the PCI-E interface are x4 or higher.
2. When using a USB pcie card, USB devices have performance limitations on the throughput/performance of the card's data transfer. This depends on the USB protocol and cable material of the end device. you can check if your external USB device supports 10Gbps bandwidth by consulting your external USB device vendor.
