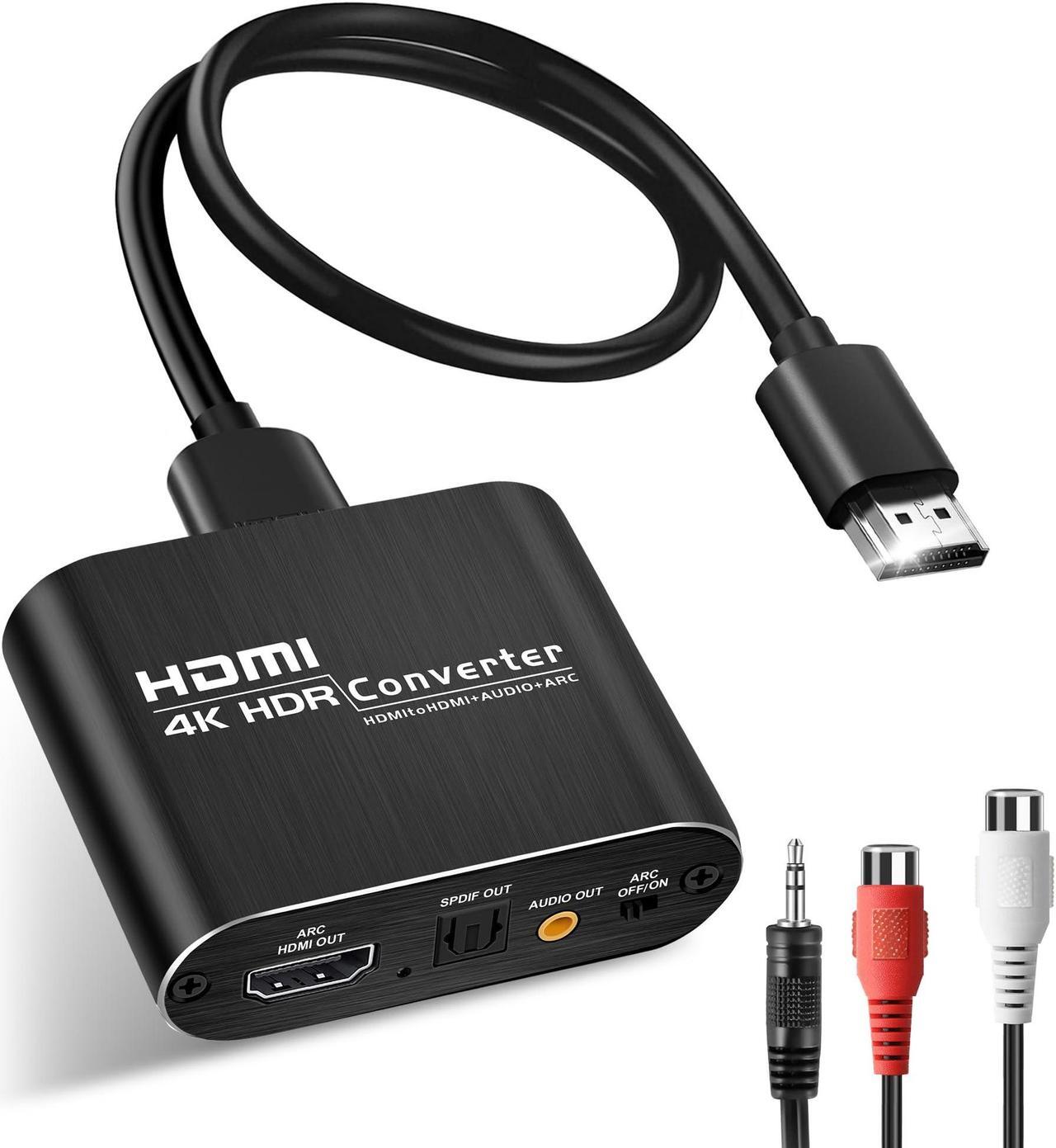

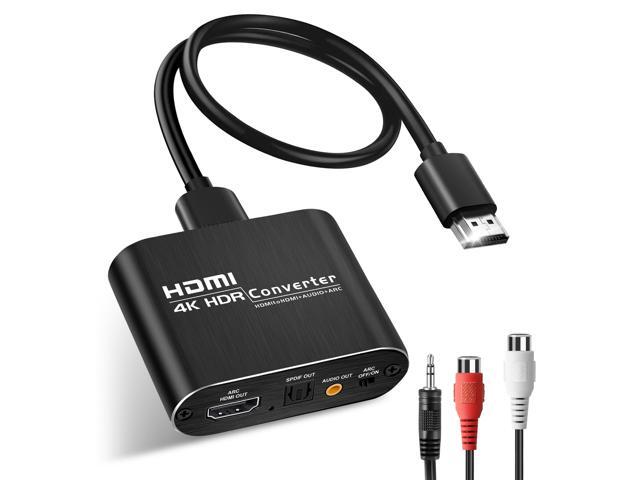

HDMI ARC Audio Extractor 4K@60Hz, HDMI to HDMI + Optical Toslink SPDIF + 3.5mm AUX Jack Stereo Audio Adapter, HDMI Audio Converter Splitter Inserter Embedder Support HDCP2.2 Digital PCM DTS 5.1

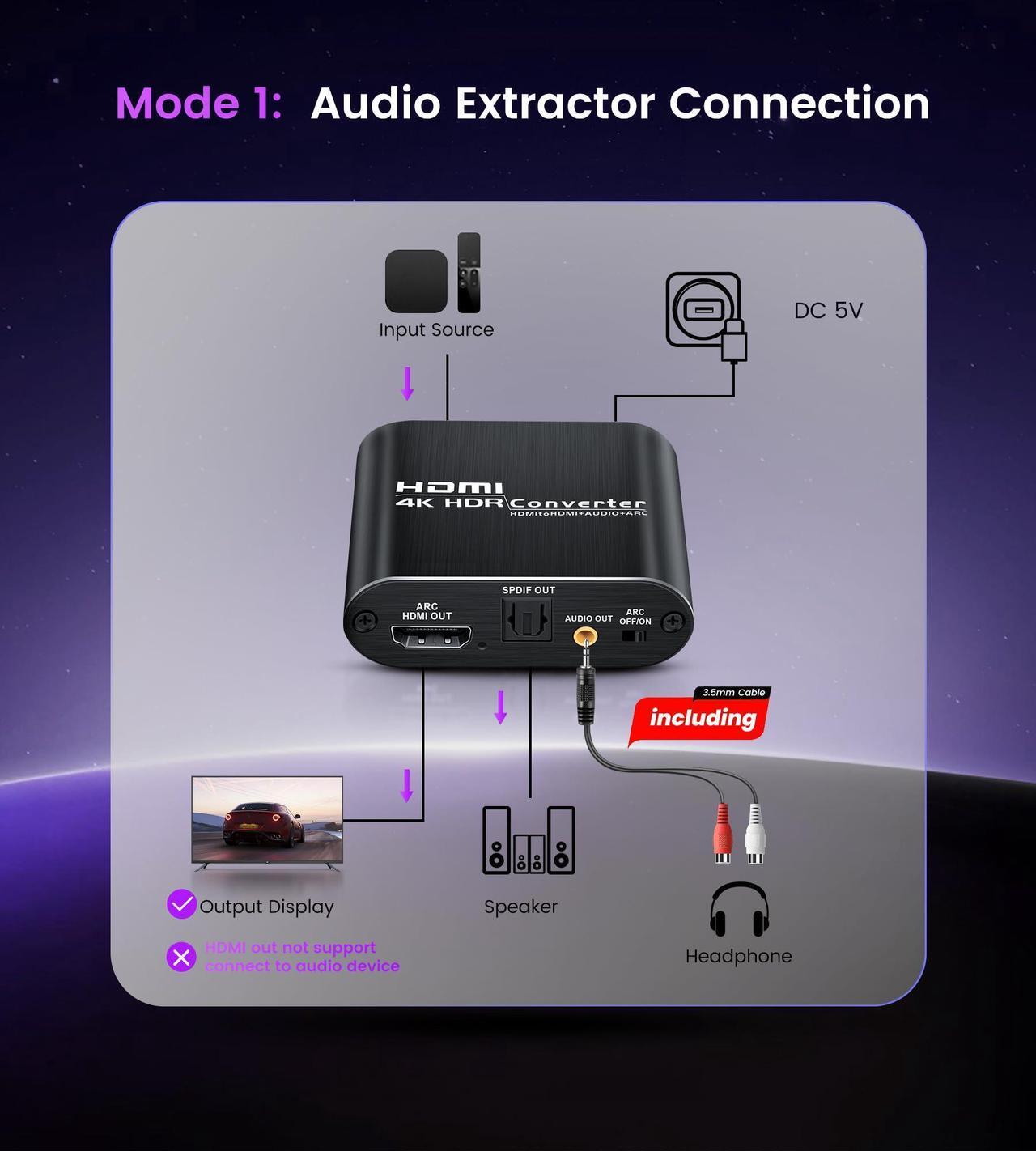

- HDMI Audio Extractor: Support one HDMI input source to one HDMI output + optical toslink SPDIF and analog 3.5mm stereo audio output. (Tips: SPDIF and 3.5mm audio support output separately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
- Three Audio Mode Settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH DoblIy Digital, DoblIy TrueHD, DTS-HD. (Note: 1. Our product don't support DoblIy Digital plus and CEC function; 2. To receive audio from both Optical and L/R output ports, the input source device format must be set to PCM/stereo.)
- 4K@60Hz High Resolution: avedio links HDMI audio Extractor Support 4KX2K@60Hz/ 3D/1080p/1080i/720p/576i/480p/480i. Support video color format: 24bit/deep color 30bit,36bit with sync sound; Maximum support HDMI 2.0, HDCP2.2;
- ARC (Audio Return Channel) Function: ARC lets your TV send audio to an ex
+
+
Overview
Specs
Reviews
Overview: avedio links 4K x 2K HDMI audio extractor extracts the digital audio signal from the HDMI input and converts it to 2 channel analog stereo output or 5.1 channel Audio outputs. Simple solution for your amplifier / soundbar / 5.1 surround system / analog speaker that have no HDMI inputs, and compatible with various HDMI source devices that do not have dedicated audio output. How to use

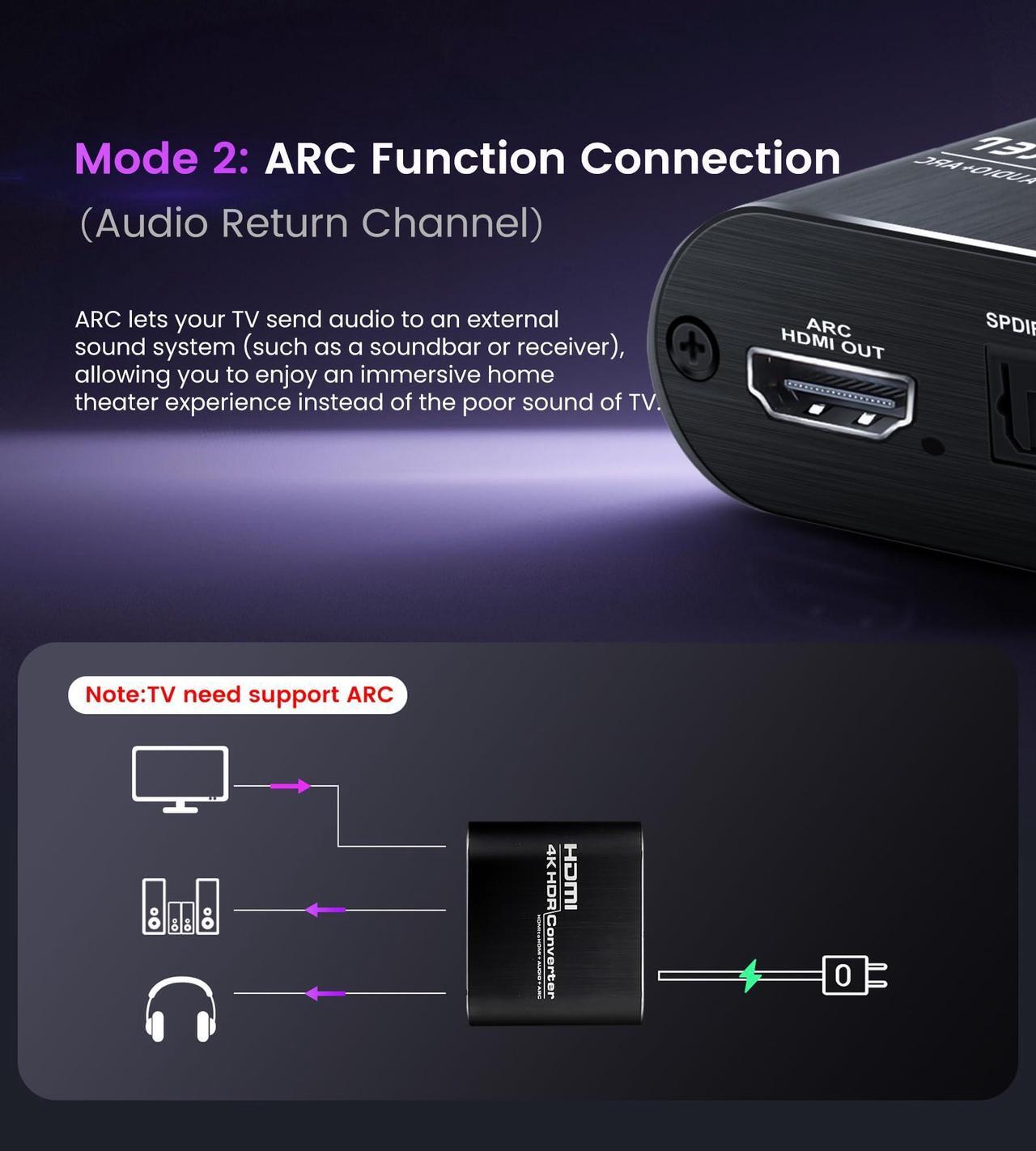

ARC function: Connect your TV HDMI (ARC) Port to our this switch HDMI Output Port with HDMI Cable, then using optical cable connect to the soundbar, Speaker, home theater, A/V receivers etc, No distortion of audio or video.
Features: Input
Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/ 5.1CH )
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5 mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit, 36bit
Max bandwidth: 340MHz
Max baud rate: 10.2G bps
Max working current: 350mA
Note: The maximum support is 4K@60Hz Mirroring Mode More convenient to enjoying and sharing high-definition movie and projection speech while duplicate signals to two monitors, which makes you amazing vision. Extended Mode You can do both of surfing & be watching a movie at the same time, which solves multitasking demand.

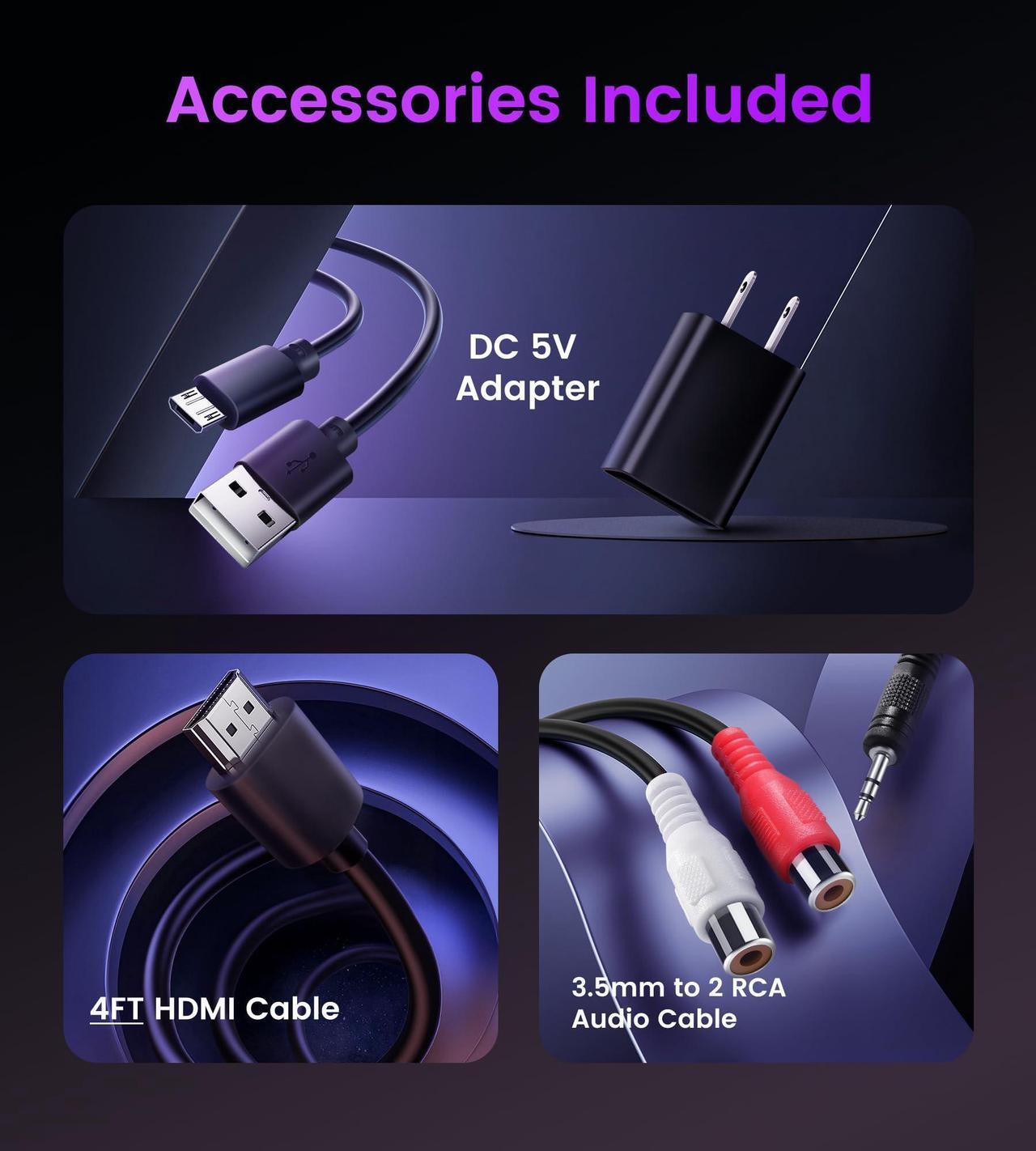

Package include: 1 X HDMI Audio Extractor 1 x HDMI cable 1 X 3.5 mm to RCA Stereo Audio Cable 1 x 5V/1A Power Adapter 1 X User Manual
ARC function: Connect your TV HDMI (ARC) Port to our this switch HDMI Output Port with HDMI Cable, then using optical cable connect to the soundbar, Speaker, home theater, A/V receivers etc, No distortion of audio or video.
Features: Input
Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/ 5.1CH )
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5 mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit, 36bit
Max bandwidth: 340MHz
Max baud rate: 10.2G bps
Max working current: 350mA
Note: The maximum support is 4K@60Hz Mirroring Mode More convenient to enjoying and sharing high-definition movie and projection speech while duplicate signals to two monitors, which makes you amazing vision. Extended Mode You can do both of surfing & be watching a movie at the same time, which solves multitasking demand.
Package include: 1 X HDMI Audio Extractor 1 x HDMI cable 1 X 3.5 mm to RCA Stereo Audio Cable 1 x 5V/1A Power Adapter 1 X User Manual
