AVMATRIX SDI/HDMI Up/Down/Cross Converter, DlP Switches, SD/HD/3G-SDI Scaling Frame Rate Conversion Scaler, 3.5mm Jack Audio Embedding, Auto Signal Detection SC2030
- HDMI / SDI Signal Conversion All Outputs ActiveThe AVMATRIX SC2030 video converter features 1HDMI, 1SDI, and 1 analog audio input, with 23G-SDI and 1HDMI outputs. Supports HDMI to SDI, SDI to HDMI, and cross-conversion modes, making it a flexible professional HDMI SDI converter for live production, streaming, and broadcast setups.

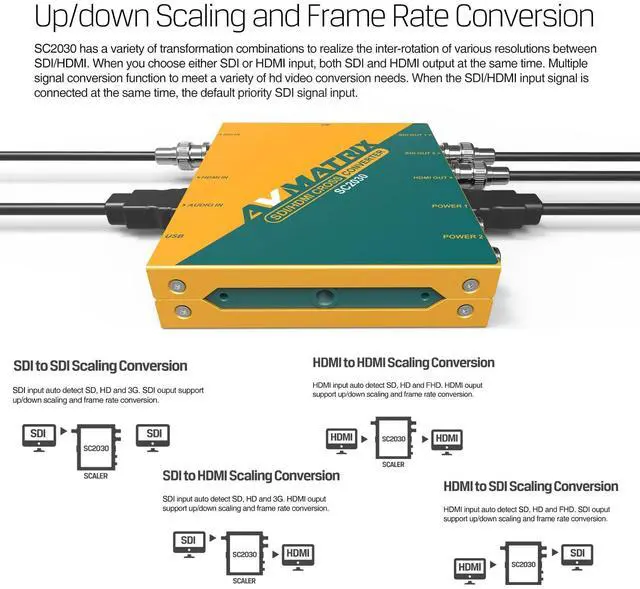

- Broadcast-Grade Up/Down Scaling & Frame Rate Conversion for Multi-Format WorkflowsThis video scaler converter supports real-time up/down scaling (SD HD) and frame rate conversion (e.g., 1080i to 1080p),ensuring compatibility between cameras, switchers, and displays. Ideal for users needing a versatile SDI HDMI scaler in mixed-resolution environments.

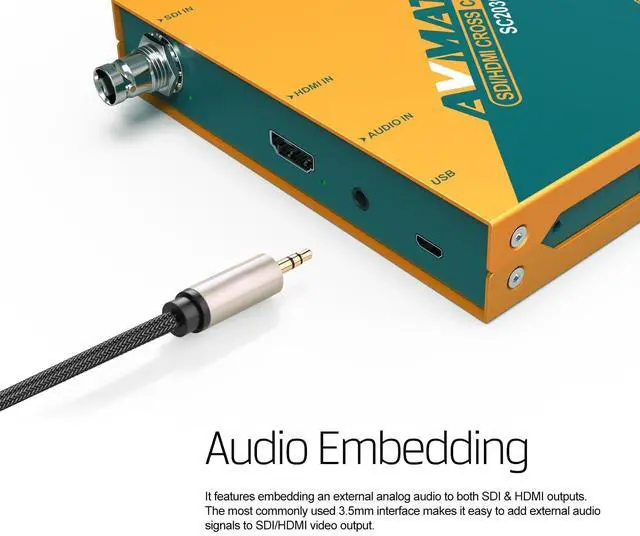

- Audio Embedding Synced to VideoEmbed external audio (via 3.5mm jack) into both SDI and HDMI outputs with tight audio-video sync. Perfect for adding mic or commentary audio without extra geargreat for live streaming, video conferencing, or broadcast where clean embedded audio is required.
- Easy Setup: D
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

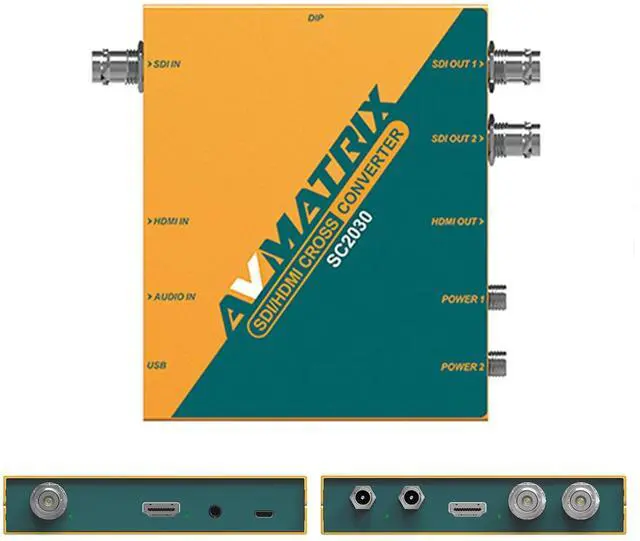

AVMATRIX SC2030 is a professional SDI/HDMI cross converter built for broadcast, live streaming, AV production, postproduction, and commercial presentation systems. It supports bidirectional signal conversion between SDI and HDMI, with builtin up/down scaling and frame rate conversion to deliver stable, highquality video output for all SD/HD/3GSDI and HDMI formats up to 1080p60. This converter comes with 1SDI input, 1HDMI input, 2SDI outputs, 1HDMI output, and a 3.5 mm analog audio input for flexible audio embedding, allowing users to switch between embedded video audio and external analog audio easily via DIP switches.
It supports a full range of video formats including 1080p60/ 59.94 /50, 1080i, 720p, 576i/p, and 480i/p, and is fully compliant with SMPTE 292M, 259M, and 424M professional standards, providing precise color processing with
SDI YUV 4:2: 2 and
HDMI RGB 4:4: 4/YUV
4:2: 2/YUV
4:4: 4 to preserve original image clarity and color accuracy.

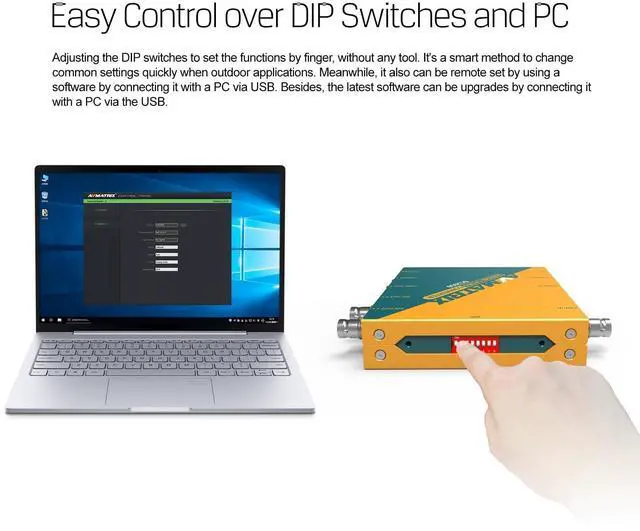

It offers two control methods: quick hardware setup via onboard DIP switches for output format, input source, audio embedding, and SD aspect ratio adjustment, or advanced configuration via micro USB with PC software to meet different onsite and remote control needs. Equipped with dual power input (DC 624V and micro USB 5V) and a rugged metal chassis, it runs reliably in temperatures from 20C to 60C and supports stable 24/7 operation in professional environments. Compact, durable, and highly compatible with video switchers, cameras, monitors, recorders, and broadcast equipment, the AVMATRIX SC2030 SDI/HDMI converter is the ideal allinone solution for AV integrators, broadcasters, live streamers, and postproduction teams looking for stable signal conversion, scaling, and audio embedding in a compact design.
It supports a full range of video formats including 1080p60/ 59.94 /50, 1080i, 720p, 576i/p, and 480i/p, and is fully compliant with SMPTE 292M, 259M, and 424M professional standards, providing precise color processing with
SDI YUV 4:2: 2 and
HDMI RGB 4:4: 4/YUV
4:2: 2/YUV
4:4: 4 to preserve original image clarity and color accuracy.
It offers two control methods: quick hardware setup via onboard DIP switches for output format, input source, audio embedding, and SD aspect ratio adjustment, or advanced configuration via micro USB with PC software to meet different onsite and remote control needs. Equipped with dual power input (DC 624V and micro USB 5V) and a rugged metal chassis, it runs reliably in temperatures from 20C to 60C and supports stable 24/7 operation in professional environments. Compact, durable, and highly compatible with video switchers, cameras, monitors, recorders, and broadcast equipment, the AVMATRIX SC2030 SDI/HDMI converter is the ideal allinone solution for AV integrators, broadcasters, live streamers, and postproduction teams looking for stable signal conversion, scaling, and audio embedding in a compact design.
