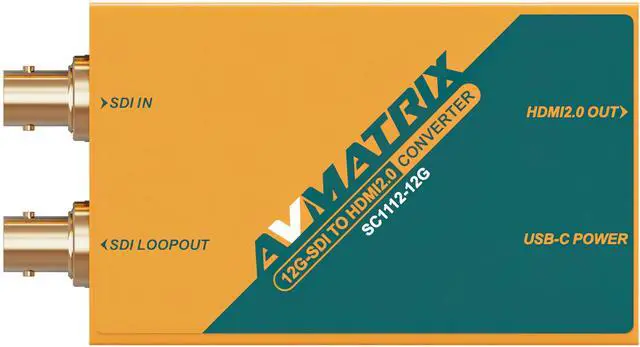

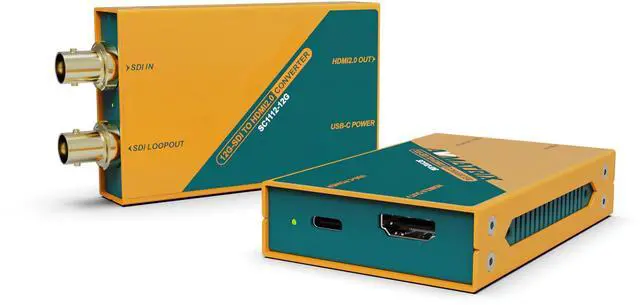

SC1112-12G 12G-SDI to HDMI2.0 4K Broadcast Converter; 12G-SDI Loop-Out; Up to 4K60 Resolution; USB Type-C Power; SDl with Equalization and Re-Clock; Video and Power Signal LEDs

AVMATRIX SC1112-12G 12G-SDI TO HDMI 2.0 4K Broadcast Converter; 12G-SDI Loop-out; Up to 4K60 Resolution; USB Type-C Power; SDl with Equalization and Re-clock; Video and Power Signal LEDsSC1112-12G is a portable 12G-SDI to HDMI 2.0 converter. With USB Tpye-C power supply, SC1112-12G is the best choice for outdoors and indoors. With 12G-SDI input and 12G-SDI loop-out, SC1112-12G can auto-detect HD/3G/6G/12G-SDI signal up to 4K@60, and support both Level A and Level B. HDMI output is compatible for more consumer electronics such as HDMI Television, projector, VCR, etcKey
Features: - 12G-SDI TO HDMI 2.0 - 12G-SDI Loop-out- Up to 4K60 resolution- USB Type-C Power- SDI with Equalization and Re-clock- Video & power signal LED indicators-
Included: SC1112-12G, 5V 2A Special Power Adapter, and USB 2.0
A-C CableSpecifications: -

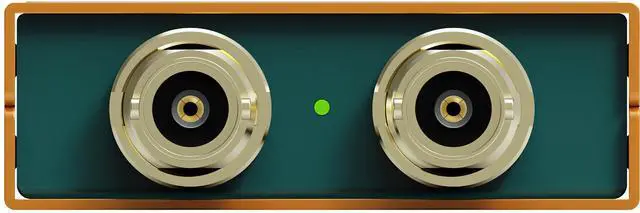

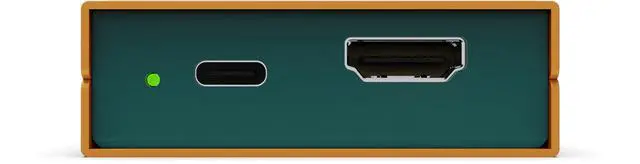

Connections: 1x HD/3G/6G/12G-SDI (75 Ohm BNC) SDI Video Input; 1xHD/3G/6G/12G-SDI (75ohm BNC) SDI Video Loop Output; 1x HDMI A HDMI Video Output; USB Type-C Power and software update-
HDMI Output Format Support: (4K) 4096x2160p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98; (4K) 3840x2160p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98; (HD) 1920x1080p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98; (HD) 1920x1080i 60/ 59.94 /50/48/ 47.98; (HD) 1280x720p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98 -
SDI Auto Switching: Auto selects HD/3G/6G/12G-SDI on input-
SDI Video Rate: HD/3G/6G/12G-SDI- SDI Color Space and
Precision: YCbCr
4:2: 2 10bit- HDMI Color Space and
Precision: RGB
4:4: 4 8bit;
YCbCr 4:2: 2 8bit, 10bit, 12bit;
YCbCr 4:4: 4 8bit-
Voltage Range: 5V-
Power Consumption: Less than 4.5W (5V 0.9A )-
Power: USB
Type-C- Overall Dimensions: 4.24 x 2.28 x 0.75 inches-
Weight: 0.51 pounds
