AVMATRIX Multi Camera Video Switcher Mixer for Live Streaming, 4CH SDI/HDMI in, 6CH Audio Mixer Swither, USB/SD-Card Record, LAN & USB Output Live Stream Shark S4

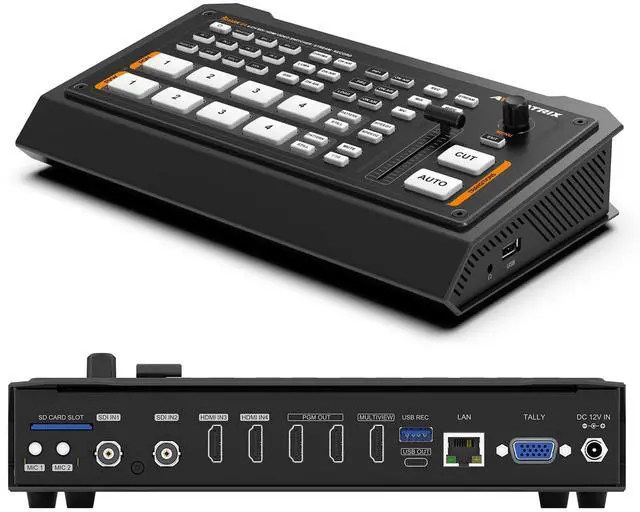

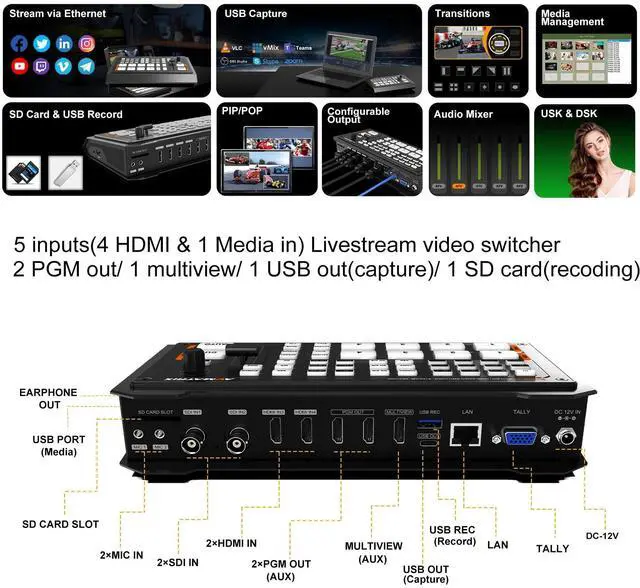

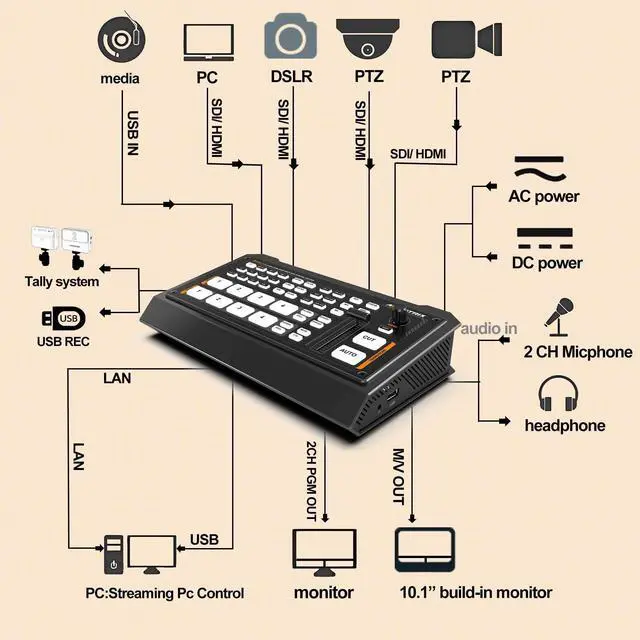

Rich InterfaceThis Video Switch integrated 2CH HDMI and 2CH 3G-SDI inputs, 2HDMI PGM outputs, 1HDMI multiview output, 1x USB Type-C output and 1x LAN output (only for livestream). All outputs also can be defined assignable to IN1/ IN2/ IN3/ IN4 /PVW/ PGM/ clean PGM/ color bar and Multiview out. ^^ RTMP/ SRT/ USB livestreamAVMATRIX video switcher Shark S4 integrated 2 stream ports. The LAN port supports lP streaming transmission through the RTMP (S) & SRT protocol. The USB type-C port can capture video & audio and stream to various softwares & platforms such as OBS, vMIX, ZOOM, Teams, Skype and VLC.

lt is compatible with Windows, Linux, and Mac. ^^ USB Disk & SD Card Recordsupport 2 method to recode, SD card and USB-A interface enable direct recording of PGM signal, making it easy to record high-quality videos. Bitrate of encode up to 32Mbps, and the supported file formats are MP4/TS. ^^ Up to 6 layers of effects Chroma Key, luma Key, Logo, DSK Support add post-production in real time, Up to six layers of effects can be stacked. WIPE, DIP, MIX transition effects can help to make live streaming more interesting and fantastic.

It is also a ideal live streaming equipment for church. ^^ Up to 6 audio mix and audio monitor 2 HDMI/ 2 SDI enbedded audio and 2-CH MIC/ Line in, audio delay available. This video switcher equips an earphone output, for monitoring each audio. ^^ PC remote controlall settings of the switcher can be controlled remotely by PC-based control software. Making livestream easier and faster. ^^ Other Professional fearturesT-bar/ Auto/ Cut transitions; various effects: WIPE (92 patterns) / MIX/ DIP
Audio mixer: HDMI embedded audio and 2-Ch MIC/ line In; audio delay available
Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators LAN port for PC software remote control FTB/ MUTE/ STILL/ GPIO for tally customer configuration import and export
