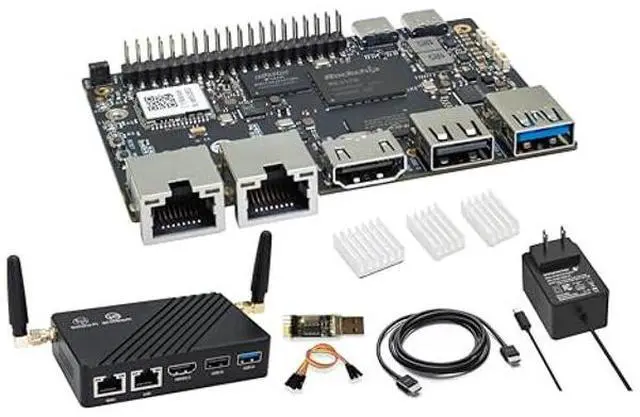

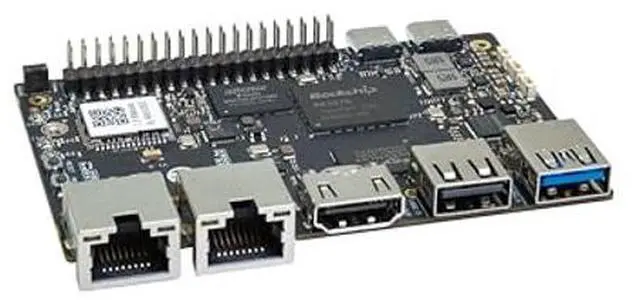

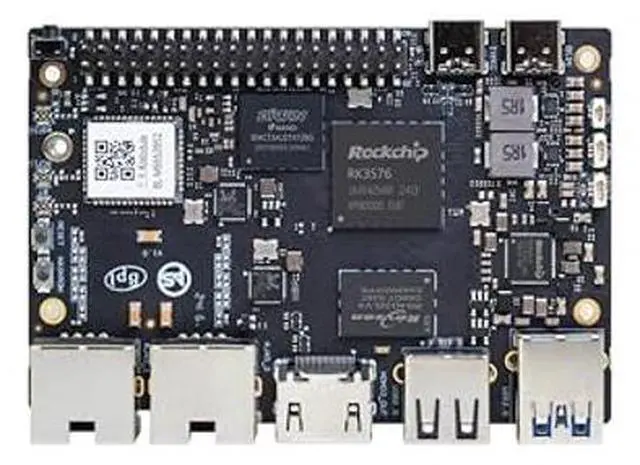

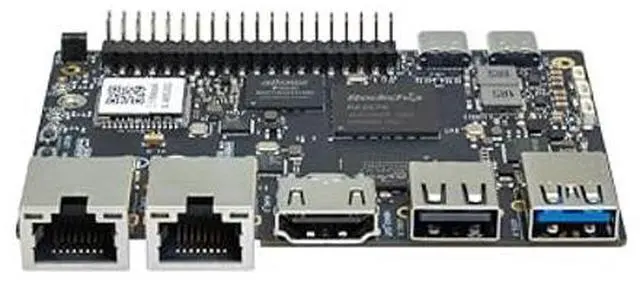

Banana Pi BPI-M5 Pro 8GB LPDDR4x Single Board Computer, Octa-core RK3576 CPU Mali G52 GPU 6TOPs NPU, with 2xGbE Ethernet Slot for AI IoT Enhancements, ARM PCs and Edge Computing Devices (8+64GB SET1)

-Specification-
SOC: Rockchip RK3576
CPU processor: RK3576 quad-core Cortex-A72@ 2.2GH z and quad-core Cortex-A53@ 1.8GH z, 8nm process
GPU graphics processor: ARM Mali G52 MC3 GPU Fully compatible with OpenGL ES 1.1, 2.0 and 3.2, OpenCL up to 2.0 and Vulkan 1.1 Dedicated 2D hardware engine with MMU will maximize display performance and provide very smooth operation.
NPU: 6 TOPS@INT8
Support INT4, INT8, INT16, FP16, BF16 and TF32 mixed operations
Support deep learning frameworks: TensorFlow, Caffe, Tflite, Pytorch, Onnx NNAndroid NN, etc.
VPU Visual Processing Unit/Codec: Video decoder supports H. 264, H. 265, VP9, AV1 and AVS2, up to 8K@30fps or 4K@120fps Video encoder supports H. 264 and H. 265 up to 4K@60fps, high-quality JPEG encoder/decoder supports up to 4K@60fps
ISP: 1-channel ISP, 16 million pixels
Memory: 8GB/16GB (maximum 16GB) 32-bit LPDDR4/LPDDR4x, default 8GB LPDDR4x
Storage: 32GB/128GB eMMC, default 64GB eMMC,
support MicroSD card expansion
PCIe: 1x M. 2 Key M interface (PCIe 2.0, 1-lane), expandable
SSD: type 2280/2260/2242/2230, current default is 2280
Network: 2 Gigabit Ethernet ports, Onboard IEEE 802.11 a/b/g/n/ac/ax WIFI6 and BT5 (rtl8852bs)
Video output:
1x HDMI OUT 2.1, supports 4K@120fps
1x MIPI DSI, up to 2K@60fps
1x DP 1.4, up to 4K@120fps
Video input:
2x 2-lane MIPI CSI, up to 2.5G bps per channel
Sound:
1x HDMI audio output
1x HP-OUT audio output
1x USB Type-C 3.0 (DP 1.4 ) audio output
USB ports:
1x USB 3.0 (supports USB 3.1 Gen1), up to 5Gbps data rate
1x USB Type-C 3.0 (DP 1.4 /OTG)
1x USB 2.0, supports high speed (480Mbps), full speed (12Mbps) and low speed ( 1.5M bps) modes
40-pin GPIO:
Compatible with Raspberry Pi 40-pin GPIO, supports various accessories and peripherals
Support UART/SPI/I2C/I2S/PWM/5V power supply/ 3.3V power supply
Power input: USB Type-C PD 2.0, 9V/2A, 12V/2A, 15V/2A
Buttons:
1x PWRON button for sleep/wake-up
1x reset button for restart
1x Maskrom button for Maskrom burn-in mode
--OS support--
Official: Android 14.0, Debian11, Buildroot
Third-party: Armbian
Size: 92 mm x 62 mm
Operating temperature: 0~80

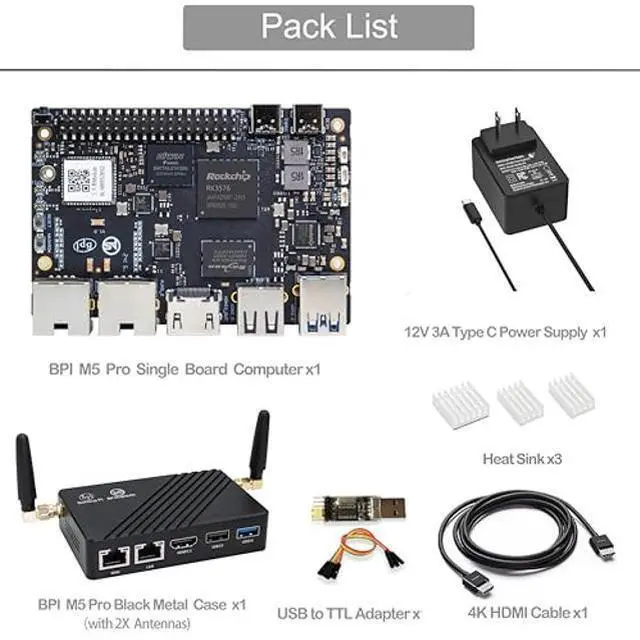

-Package Content-
BPI-M5 Single Board Computer x1
Heat Sink x4
