H81 LGA 1150 Motherboard, Channel DDR3 Micro ITX Computer Motherboard, M.2 Support, 2 SATA Gaming Motherboard for Core I3 I5 I7 4th 5th Generation CPU

1. LGA 1150
SLOT: The H81 motherboard utilizes the LGA 1150 slot to support for Core i3/i5/i7 for 4th/5th generation CPU (for HASWELL architecture) processors.
2.
DDR3 SUPPORT: The PC motherboard utilizes 240pin DDR3 S0 DRAM slots and supports up to 16GB of memory capacity, supporting DDR3 1066/1333/1600 MHz, and an integrated Gigabit Ethernet adapter for fast and stable network connectivity.
3.
EXPANSION SLOTS: The Mini ITX motherboard offers 1 M PCI Express slot and 1 M. 2 Nvme slot, allowing you to add other expansion devices such as graphics cards and storage devices, as well as a 6 channel HD audio codec for excellent sound quality and front audio interfaces.

Spec:
Item Type: H81 Motherboard
Material: PCB
Model: H81
Battery: CR2032 (Ship with Inbuilt Battery)
Battery Capacity: 240 mAh
CPU: For Core for i3/i5/i7 4th/5th Generation CPUs
Memory: 240pin DDR3 S0 DRAM Slots, Memory Up to 16GB, Supports DDR3 1066/1333/1600MHz
Onboard Interface:
1x4pin ATX(12V/19V) Power Connector
2xUSB Ports, Supports 4xUSB 3.0
2x Serial SATA Connector Ports
1xF PANEL Connector
1xF Speaker Connector
2xFan Connectors
1xJLVDS Connector
1x30pin LVDS CON Connector
1x16pin HD Multimedia Interface Compatible CON Connector
1x 6pin Inverter Connector
Integrated Audio: Onboard 6 Channel HD Audio Codec, Front Audio Interface, Front Stereo Mic Interface
LAN: Onboard 10/100/1000Mbps LAN

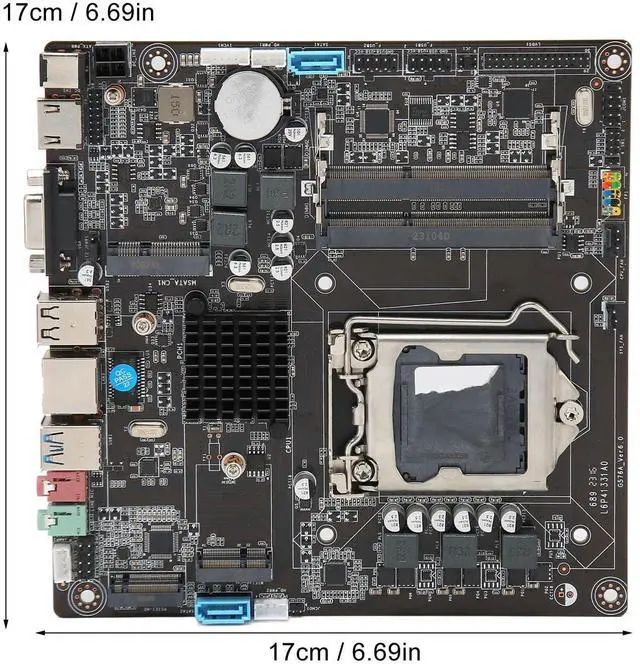

Architecture: Micro ITX Architecture (Approx. 17 x 17cm / 6.69 x 6.69 in)

How to Use:
Take out the product and use it

Package List:
1 x H81 Motherboard (Ship with Inbuilt Battery)

Notice:
Manual measurement, there may be slight errors
