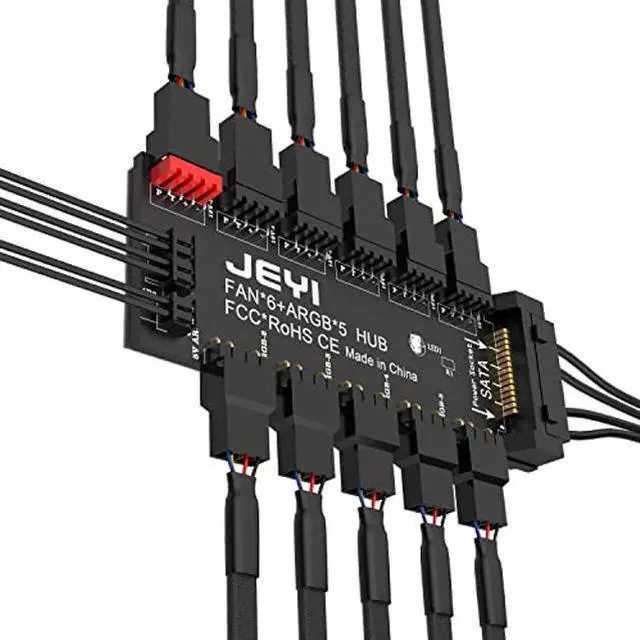

JEYI ARGB PWM 5 Way Fan Hub, Addressable 12V 4Pin PWM & 5V 3Pin ARGB 2-in-1 Hub, RGB Fan, RGB Strip Splitter

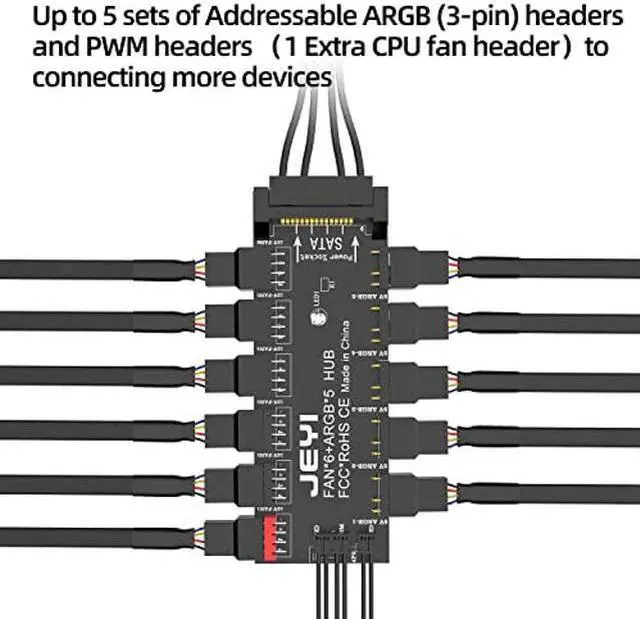

- JEYI ARGB PWM 2-in-1 5 way hub support up to 5 sets of Addressable 5V RGB headers and 12V PWM headers. Add 1 CPU PWM signal fan.

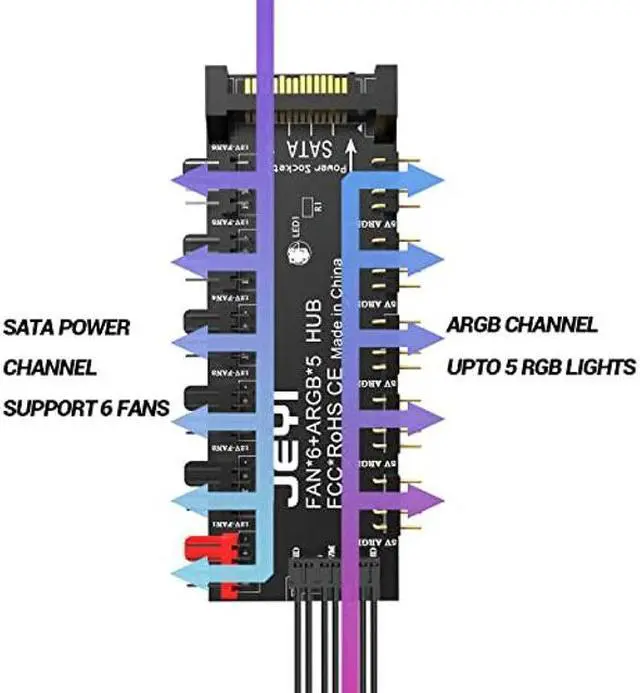

- This CPU Cooling fan hub is powered by SATA 15PIN, which can supply power to the PWM fan and 5V ARGB lights. The motherboard has no power supply burden and can maintain a stable output even at full load.
- This type of 5V ARGB header could connect to ARGB fans, light strips. Only compatible with 3pin 5V addressable RGB headers or controllers, don't connect to 12V RGB components, otherwise it might burn out.

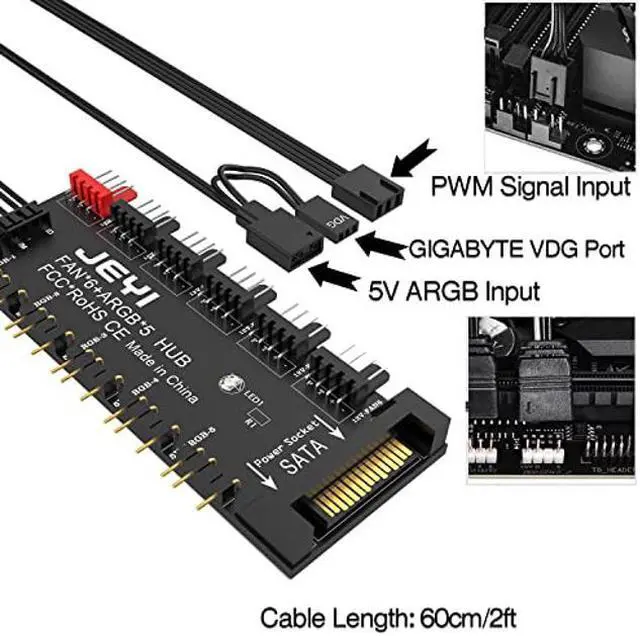

- The PWM interface is connected to the CPU fan interface of the motherboard, and the red is the dedicated interface for the CPU fan (with speed measurement function). The black interface is a PWM conventional fan interface (no speed measurement signal, but does not affect the PWM function).
- The back of the hub PCB board has adhesive foam, which is convenient for sticking in a flat place.
+
+
Overview
Specs
Reviews
Motherboard 1 to 6 4 Pin PWM Cooler Fan and 5 ARGB Ports HUB Splitter
Extension 12V Power Supply Socket PC Speed Controller Adapter
Feature:

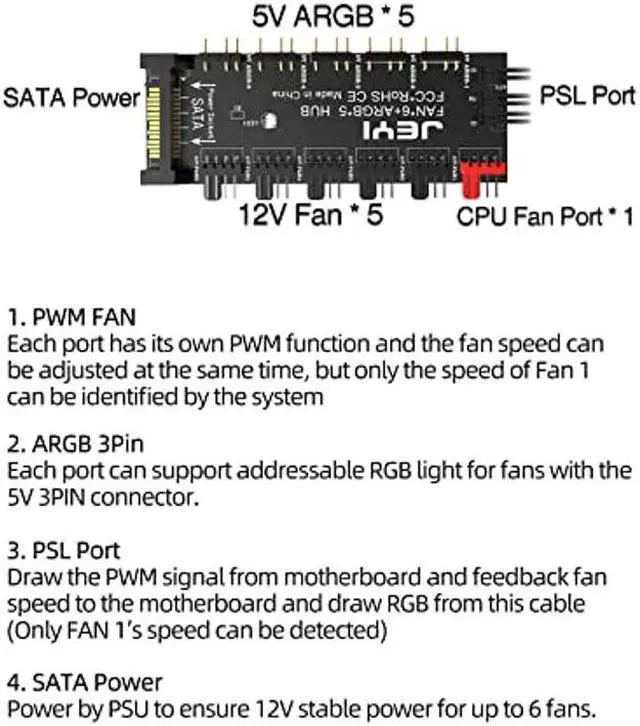

1. Expand the 6*4-pin PWM interfaces and 5*5V ARGB ports to solve the lack of motherboard interface and centralize the processing of fan wires.
2. The PWM interface is connected to the CPU fan interface of the motherboard, and the red is the dedicated interface for the CPU fan (with speed measurement function). The black interface is a PWM conventional fan interface (no speed measurement signal, but does not affect the PWM function).
3. The power supply can be directly powered by the power supply, which can reduce the load pressure on the motherboard. The temperature control line PWM is separately connected from the motherboard, and the power supply and temperature control are correct.
4.
Scope of application: suitable for 12V motherboard 3pin / 4pin fan, 3pin fan can also be used, but plug in to run at full speed, because 3pin fan has no PWM speed regulation
5: The back of the hub PCB board has 3M adhesive, which is convenient for sticking in a flat place. Also comes with a fixed reel hole (product comes with a 40cm long PWM temperature control cable)
Type: Large 4D port power supply, SATA power supply (optional)
Line Interface: Small 4Pin PWM
Size: 70x45x15mm/ 2.76 * 1.77 * 0.59 in
Notes:
1. Avoid speed measurement confusion, the computer freezes, and the multi-channel interface extended by one interface only shows the speed measurement of one of the fans!
2. This product is a PWM speed regulator. Its function is to expand a single motherboard's four-pin port into multiple ports for unified speed adjustment. If your fan is a 3-pin fan, you can also plug it in, but you cannot achieve PWM control speed!
Extension 12V Power Supply Socket PC Speed Controller Adapter
Feature:
1. Expand the 6*4-pin PWM interfaces and 5*5V ARGB ports to solve the lack of motherboard interface and centralize the processing of fan wires.
2. The PWM interface is connected to the CPU fan interface of the motherboard, and the red is the dedicated interface for the CPU fan (with speed measurement function). The black interface is a PWM conventional fan interface (no speed measurement signal, but does not affect the PWM function).
3. The power supply can be directly powered by the power supply, which can reduce the load pressure on the motherboard. The temperature control line PWM is separately connected from the motherboard, and the power supply and temperature control are correct.
4.
Scope of application: suitable for 12V motherboard 3pin / 4pin fan, 3pin fan can also be used, but plug in to run at full speed, because 3pin fan has no PWM speed regulation
5: The back of the hub PCB board has 3M adhesive, which is convenient for sticking in a flat place. Also comes with a fixed reel hole (product comes with a 40cm long PWM temperature control cable)
Specifications
:Type: Large 4D port power supply, SATA power supply (optional)
Line Interface: Small 4Pin PWM
Size: 70x45x15mm/ 2.76 * 1.77 * 0.59 in
Notes:
1. Avoid speed measurement confusion, the computer freezes, and the multi-channel interface extended by one interface only shows the speed measurement of one of the fans!
2. This product is a PWM speed regulator. Its function is to expand a single motherboard's four-pin port into multiple ports for unified speed adjustment. If your fan is a 3-pin fan, you can also plug it in, but you cannot achieve PWM control speed!
