UHF RFID Card Reader Writer, 915MHZ RFID Reader Writer USB Desktop Reader Writer NonContact Electronic Tag Access Control System Plug and Play

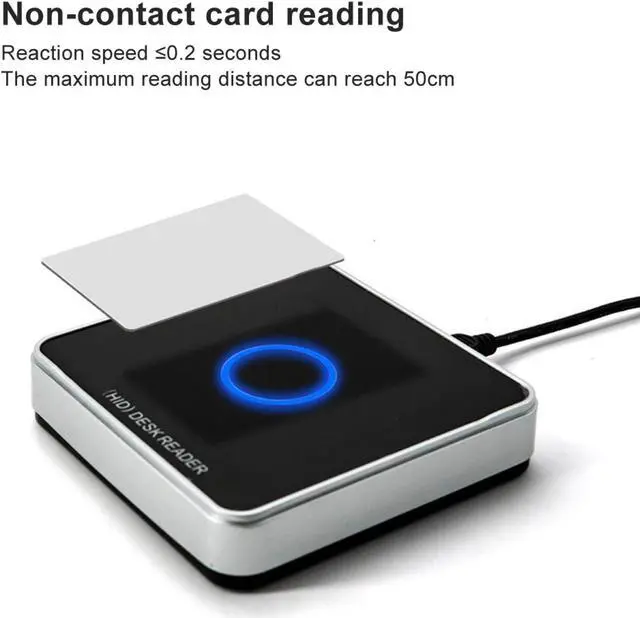

- [(Non-contact card reader)] Non-contact UHF long distance card reader, response speed is not higher than 0.2 seconds, the maximum reading distance can reach 50cm, responsive.

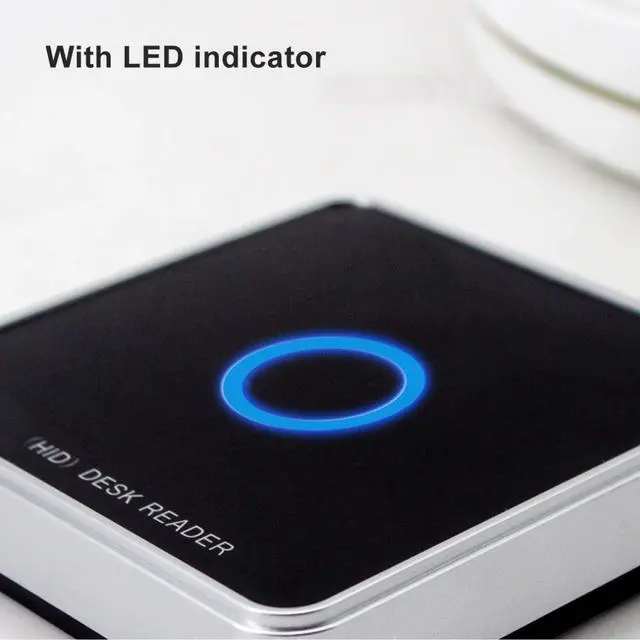

- [(LED card reader)] with LED indicator, using round LED indicator technology. Responsive, while the built-in 2dbi circularly polarized antenna, output power 12.5dBm ~ 26dBm (software adjustable)
- [(USB Card Reader)] With USB interface, wire extension about 1.4m, plug and play, no need to install driver to connect with computer. Suitable for logistics and warehouse management; parking control system; manufacturing management; product anti-counterfeiting detection; other fields: club management, library, student registration, attendance management and swimming pool system, etc.
- [(Desktop Reader)] Fashionable and compact -- Small and square appearance, desktop reader with built-in buzzer, suitable for indoor desktop placement, easy to operate and can obviously remind you when there is a problem.
- [(After-sales
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
Specification:
Condition: 100% Brand New
Item Type: Desktop Reader
Color: Black
Material: ABS
Size: Approx. 107x107x24mm/ 4.2 x 4.2 x 0.9 in
Working Frequency:
CN: 920-925MHz
US: 902-928MHz

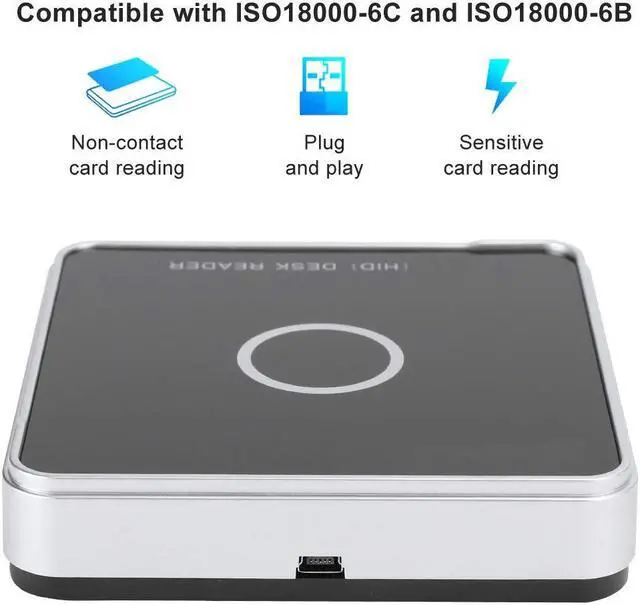

Label Protocol: ISO18000-6C (EPC GEN2), ISO18000-6B
Frequency Hopping Mode: Wide Spectrum Frequency Hopping (FHSS) or Fixed Frequency, which can be set by software

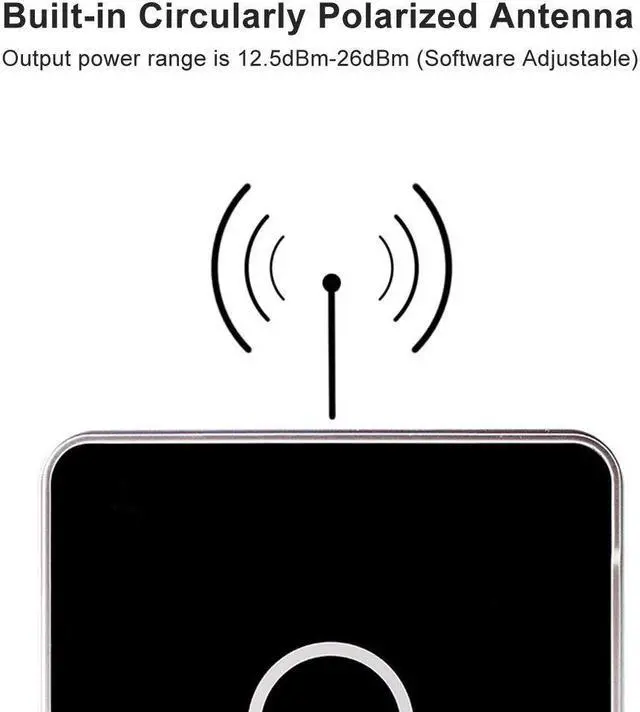

Antenna Parameters: 2dBi Circularly Polarized Antenna (built-in)
Output Power: 12.5 dBm-26dBm (Software Adjustable)
Reader/Writer Distance:
Maximum Distance of Reading Label: Approx. 0.5 m/ 19.7 in(Related to transmission power, antenna type, label type and application environment)
Maximum Distance of Writing Label: Approx. 0.2 m/ 7.9 in(Depending on transmitting power, antenna type, label type and application environment)
Working Mode: Active mode, Passive mode, Response mode (not recommended)
Power Interface: DC+5V
Working Temperature: -20-55
Storage Temperature: -40-85
Communication Interface: USB Virtual Keyboard
Power Adapter: USB Power Supply
RS-232 Signal Wire: Equipped
Power Cable: Equipped
Development Kit: Provide the SDK
Package List:
1 x Desktop Reader 1 x Data Cable
Note:
Specification:
Condition: 100% Brand New
Item Type: Desktop Reader
Color: Black
Material: ABS
Size: Approx. 107x107x24mm/ 4.2 x 4.2 x 0.9 in
Working Frequency:
CN: 920-925MHz
US: 902-928MHz
Label Protocol: ISO18000-6C (EPC GEN2), ISO18000-6B
Frequency Hopping Mode: Wide Spectrum Frequency Hopping (FHSS) or Fixed Frequency, which can be set by software
Antenna Parameters: 2dBi Circularly Polarized Antenna (built-in)
Output Power: 12.5 dBm-26dBm (Software Adjustable)
Reader/Writer Distance:
Maximum Distance of Reading Label: Approx. 0.5 m/ 19.7 in(Related to transmission power, antenna type, label type and application environment)
Maximum Distance of Writing Label: Approx. 0.2 m/ 7.9 in(Depending on transmitting power, antenna type, label type and application environment)
Working Mode: Active mode, Passive mode, Response mode (not recommended)
Power Interface: DC+5V
Working Temperature: -20-55
Storage Temperature: -40-85
Communication Interface: USB Virtual Keyboard
Power Adapter: USB Power Supply
RS-232 Signal Wire: Equipped
Power Cable: Equipped
Development Kit: Provide the SDK
Package List:
1 x Desktop Reader 1 x Data Cable
Note:
