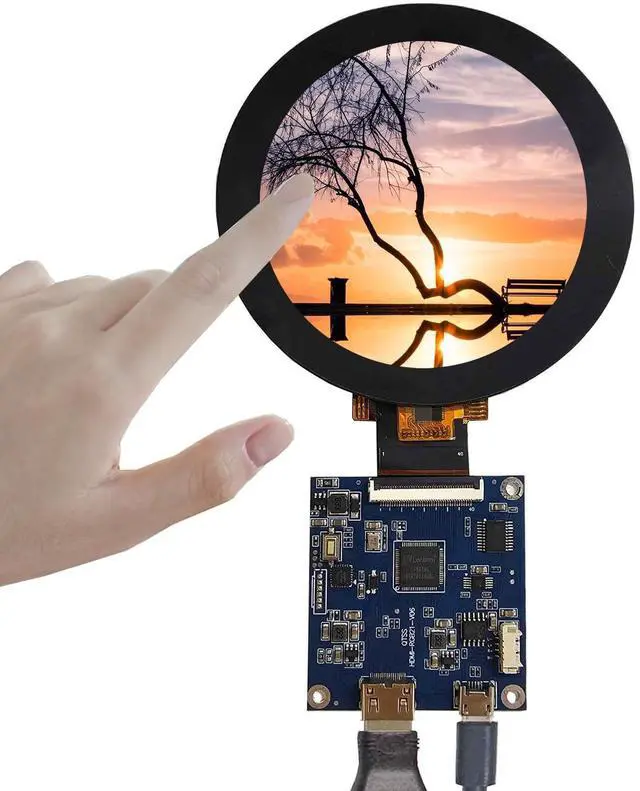

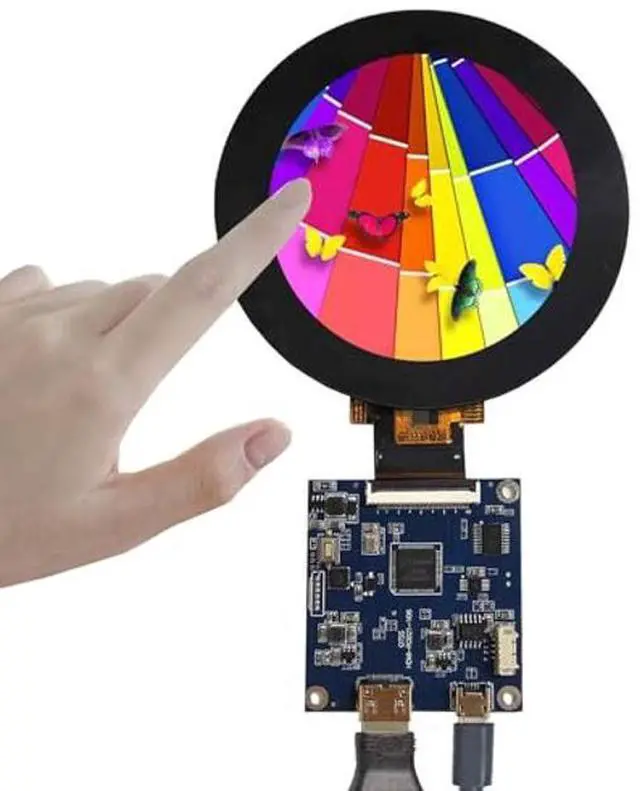

FanyiTek 2.8 inch 480X480 IPS MIPI 330nit Circle LCD Touch Screen and 40 pins Controller Board,
- [(Round MIPI screen)] 2.8" 480x480 circle display,IPS full viewing angle,outline size:77.59x73x2.4(WxHxD)mm,display area:70.13x 70.13(WxH)mm,330nit high brightness ,WLED backlight ,input voltage: 2.8V .
- [(Controller board)] Video input :port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.
- [(Capacitive Touch sensor panel)] The design of touch panel makes the operation more convenient, No button damage issue for after long time use.
- [(Input Power)] 5Vdc More than 1A,Pls prepare it seperately .

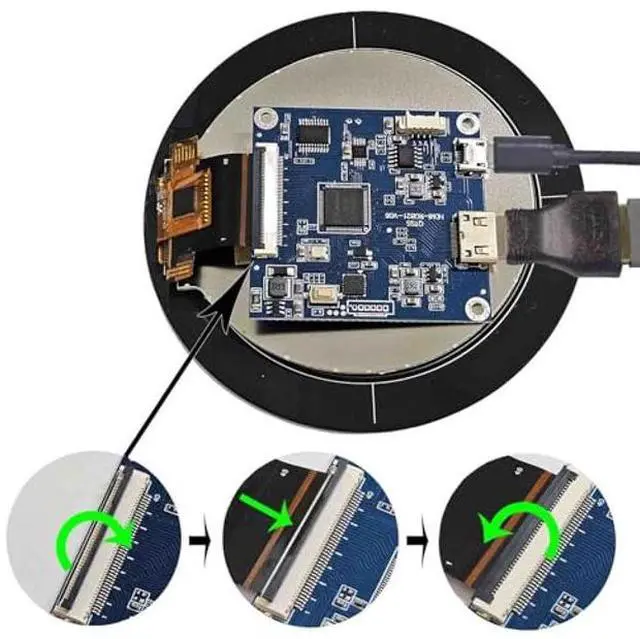

- [(Plug and play)] Connecting cables and ports according to link picture details ,Power on and enter signal cable ,the touch screen can work well after powering.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

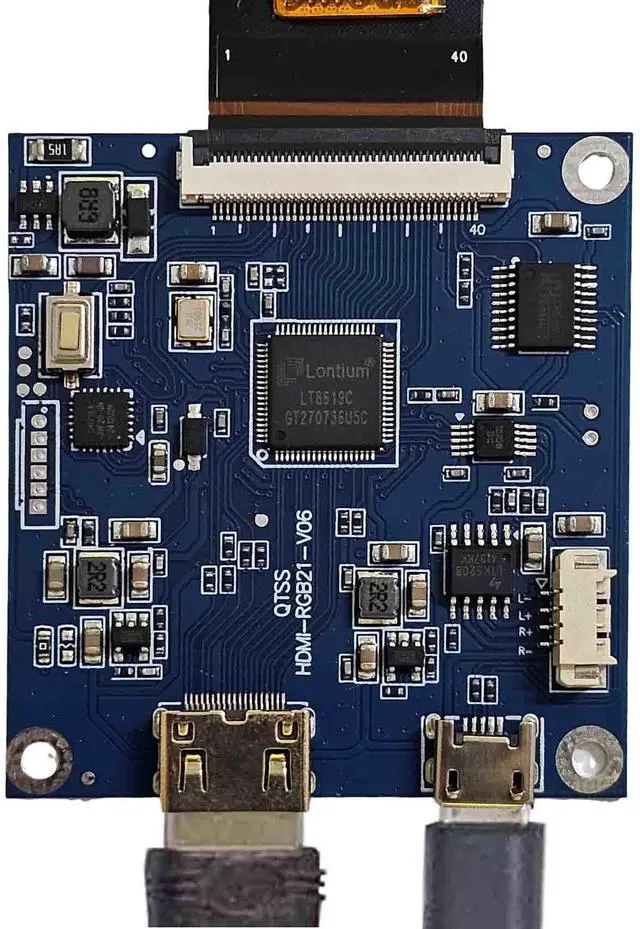

LCD Controller Board:
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Board Size: 50mm x 35mm x 5mm
2.8" VS276001C40-V2 480X480 Capacitive Touch LCD Screen:
Display Mode IPS, Normally White, Transmissive
Resolution 480 (RGB) x480
Outline Size 96.8 x 96.8 x4 (WxHxD) mm
Display Area 70.13 x 70.13 (WxH) mm
Brightness 330 cd/m2 (Typ. )
Contrast Ratio 300:1 (Typ. ) (TM
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Mipi, 40 pins,
Backlight WLED
Input Voltage 2.8V (Typ. )

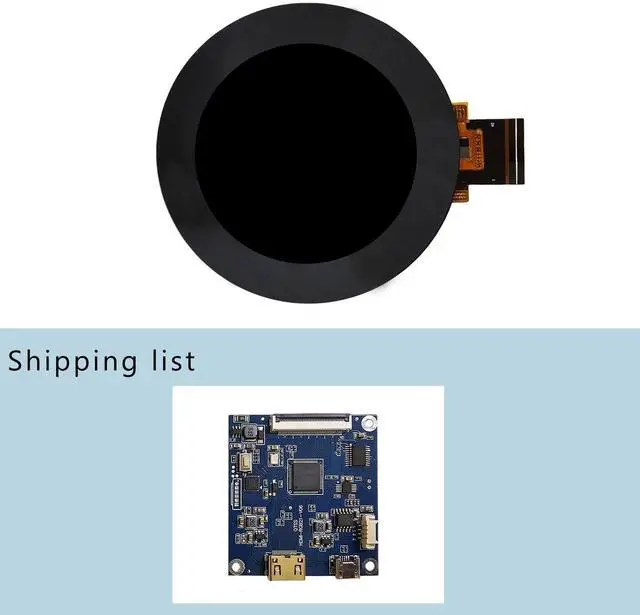

Packing list:
1x LCD Board
1x 2.8 inch VS276001C40-V2 480x480 Capacitive Touch LCD Screen
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Board Size: 50mm x 35mm x 5mm
2.8" VS276001C40-V2 480X480 Capacitive Touch LCD Screen:
Display Mode IPS, Normally White, Transmissive
Resolution 480 (RGB) x480
Outline Size 96.8 x 96.8 x4 (WxHxD) mm
Display Area 70.13 x 70.13 (WxH) mm
Brightness 330 cd/m2 (Typ. )
Contrast Ratio 300:1 (Typ. ) (TM
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Mipi, 40 pins,
Backlight WLED
Input Voltage 2.8V (Typ. )
Packing list:
1x LCD Board
1x 2.8 inch VS276001C40-V2 480x480 Capacitive Touch LCD Screen
