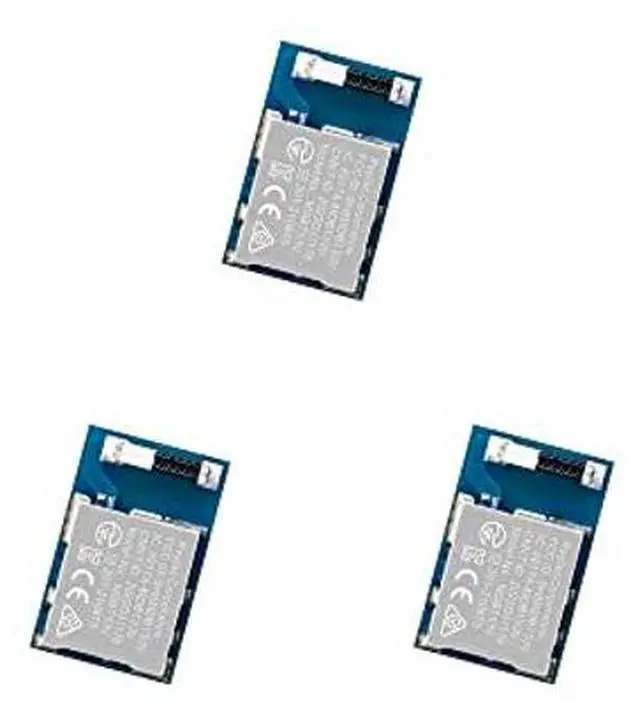

MDBT53V-1M Nordic nRF5340 Dual Core Chip ANT 25 GPIO Bluetooth Module BT5.2 FCC IC CE Telec KC SRRC (3pcs Pak)
- Nordic nRF5340 Chip Antenna Module / MDBT53V-1M (3pcs Pak)
- Dual Core Processors: Network Core (256 kB flash + 64 kB RAM) / Application Core (1 MB flash + 512 kB RAM)
- Supports Bluetooth LE Audio

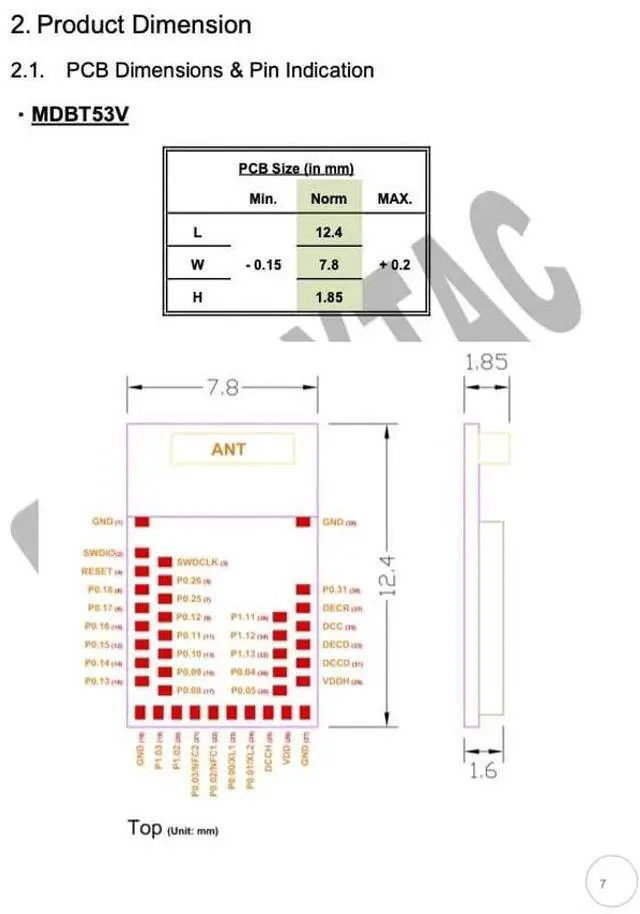

- 25 GPIO / 7.8 x 12.4 x 1.85 mm
- Interface: QSPI & USB & I2C & SPI & UART & I2S & PDM & PWM & NFC
- Operation Temp.: -40degC to 105 degC (-40degF~221degF) / 1.7 to 5.5 V supply voltage
- RoHS & Reach Compliant

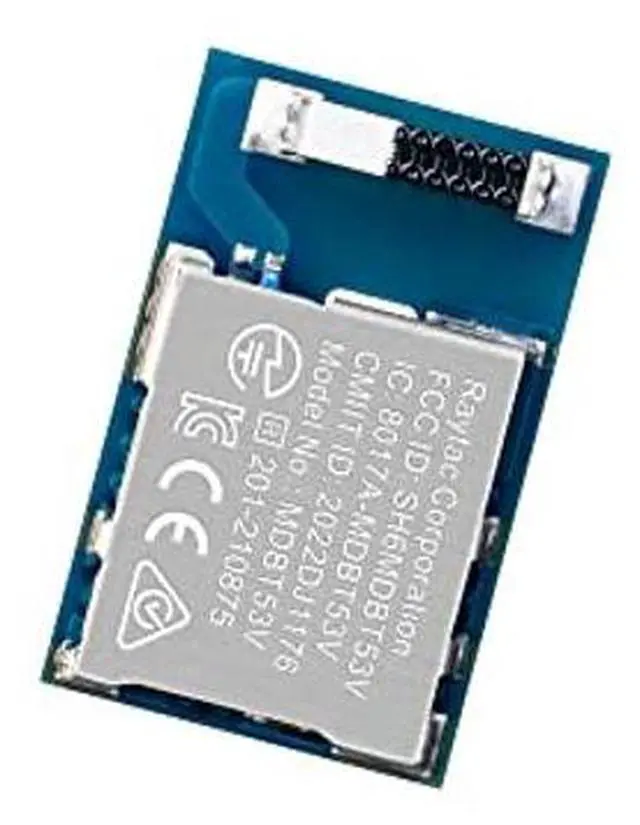

- Raytac Part No.: MDBT53V-1M
+
+
