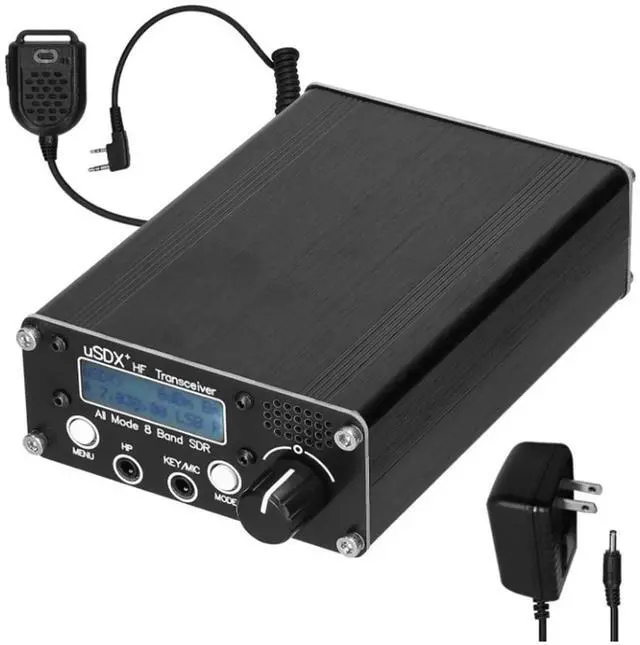

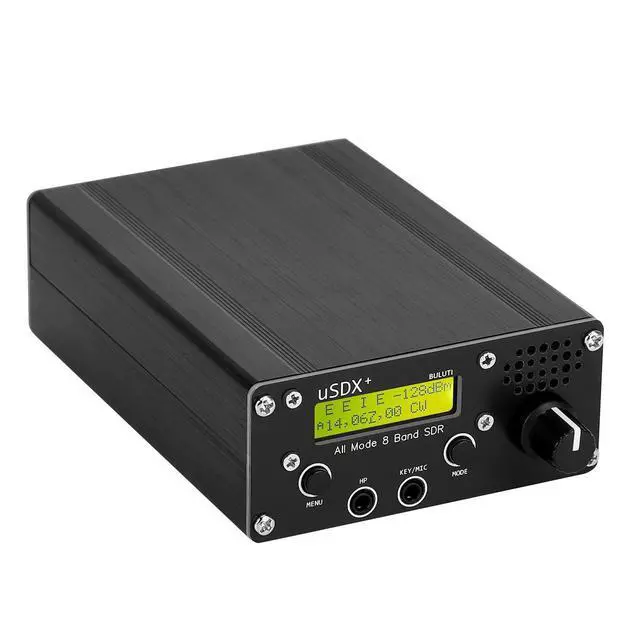

8 Band Shortwave Radio Transceiver, LCD Display Full Mode HF SSB SDR QRP Ham Radio with BNC Antenna Connector for Amateur Radio Operators,Support Connection to Computer
- 8-Band Coverage: This transceiver features an 8-band design covering 80m, 60m, 40m, 30m, 20m, 17m, 15m, and 10m frequencies, delivering high transmission efficiency.
- Practical: This is a shortwave QRP SSB/CW transceiver. Its ultra-compact size makes it easy to carry for outdoor use. It features a clear LCD display and a built-in speaker. Supports connection to a computer for software control of digital modes like FT8, JS8, and FT4. Also supports CW automatic decoding.
- Built-in Speaker: Enhanced built-in speaker performance delivers stable, clearer sound with improved noise resistance. Supports rapid QRP CW frequency changes and adjustable CW side tone volume.
- Layout Optimization: Intuitive Design: Headphone jacks, power button, and microphone port are positioned on the front panel for easy access. Larger touch surfaces enhance button responsiveness and provide a more comfortable user experience. PCB includes pre-soldered pads for various upgrades, offering out-of-the-box funct
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Move the headphone and power button/microphone jacks to the front panel for easy access to headphones and the power button. Relocate the buttons to the bottom of the LCD screen for a larger touch area and more comfortable button operation. Upgrade the built-in speaker effects for twice the sound! PCB includes pads for various upgrades, ready to use out of the box and serves as a template for DIY upgrade learning. Quickly change QRP CW frequencies. Supports CW sidetone volume adjustment. Supports CW sidetone tuning. This is a shortwave QRP SSB/CW transceiver.
Its ultra-compact size makes it easy to carry for outdoor use. (built-in 4000mAh lithium battery) Features a LCD display and built-in speaker. Supports computer connection for software control of FT8, JS8, FT4, and other modes. Includes CW auto-decoding.
Features: 8
track coverage: 80m/60m/40m/30m/20m/17m/15m/10m bands. Superior PCB layout adhering to high-frequency circuit design principles ensures exceptional performance. Delivers 8-step 3-5W power output whether using internal battery or external 13.8V power supply, with reserved SOT-223 and TO-220 pack pads for future upgrades.
High transmission efficiency: >80% on 80m/60m/40m/30m/20m bands, >70% on 17m, >60% on 15m/10m. Frequency accuracy better than 1ppm, frequency stability better than 0.5 ppm.

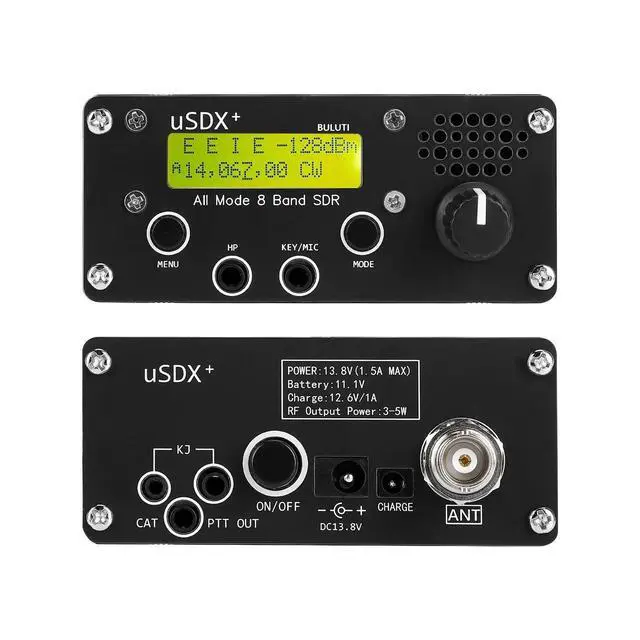

Ultra-compact dimensions: 88*39*124mm (excluding protrusions). Rich interfaces (CAT, PTT Out, Mic/Key, K-head Mic). All LPF components utilize 100V C0G/NP0 capacitors. Features genuine Omron magnetic latching relays. Employs low-noise operational amplifier chips. Includes cavity-mounted internal speaker. BNC antenna connector.
Package Contents: 1 x Transceiver1 x Microphone
Its ultra-compact size makes it easy to carry for outdoor use. (built-in 4000mAh lithium battery) Features a LCD display and built-in speaker. Supports computer connection for software control of FT8, JS8, FT4, and other modes. Includes CW auto-decoding.
Features: 8
track coverage: 80m/60m/40m/30m/20m/17m/15m/10m bands. Superior PCB layout adhering to high-frequency circuit design principles ensures exceptional performance. Delivers 8-step 3-5W power output whether using internal battery or external 13.8V power supply, with reserved SOT-223 and TO-220 pack pads for future upgrades.
High transmission efficiency: >80% on 80m/60m/40m/30m/20m bands, >70% on 17m, >60% on 15m/10m. Frequency accuracy better than 1ppm, frequency stability better than 0.5 ppm.
Ultra-compact dimensions: 88*39*124mm (excluding protrusions). Rich interfaces (CAT, PTT Out, Mic/Key, K-head Mic). All LPF components utilize 100V C0G/NP0 capacitors. Features genuine Omron magnetic latching relays. Employs low-noise operational amplifier chips. Includes cavity-mounted internal speaker. BNC antenna connector.
Package Contents: 1 x Transceiver1 x Microphone
