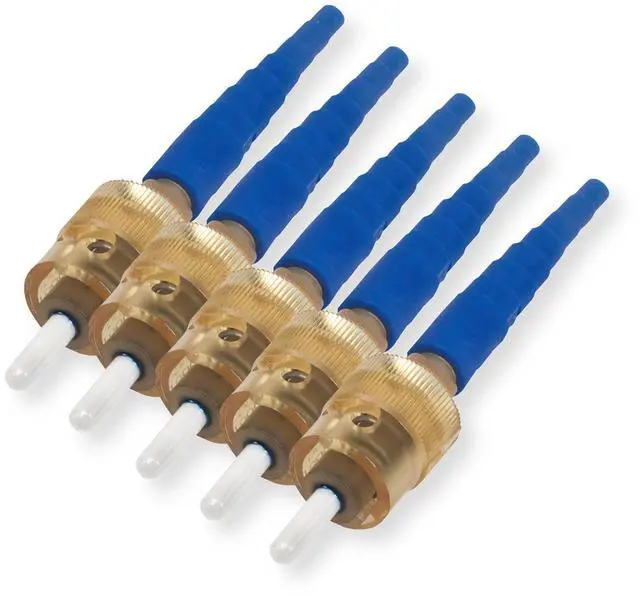

Corning 95-200-51 Pack of 5 UniCam Connectors, ST Compatible; Single-Mode OS2 Pretium Fiber Optic Connector; Amber Housing, Blue Boot; Field-Installable; Corning Logo
- Performance: Ensures consistent optical performance with a typical insertion loss of 0.2 dB
- Quick Installation: No epoxy or polishing required, enabling fast and easy field termination
- Durable Design: Supports up to 500 rematings with minimal performance degradation
- Wide Temperature Range: Operates reliably in extreme temperatures from -40F to 167F
- Lightweight and Compact: Ideal for tight spaces and portable installations
- Low Reflectance: Provides reflectance levels below -55 dB for superior signal integrity
- Factory-Polished End Face: Guarantees optimum optical performance straight out of the box
- Universal Compatibility: ST-compatible design ensures interoperability with standard systems
- Compliance: Compliant with RoHS standards, free from hazardous substances
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Corning 95-200-51 UniCam Connectors, ST compatible; Single-mode OS2 Pretium Fiber Optic Connector; Amber Housing, Blue Boot; Field-Installable; Corning LogoThe Corning UniCam 95-200-51 ST Compatible Single Mode Fiber Optic Connector is a high-performance, field-installable solution designed for fast and reliable fiber optic network terminations. With no epoxy or polishing required, this connector offers a quick, cost-effective installation process while maintaining exceptional optical performance. Its durable design and wide operating temperature range make it ideal for various applications, ensuring long-lasting reliability and efficiencyKey
Features: No epoxy or polishing required for installation ST-compatible design for universal application Insertion loss typical at 0.2 dB, maximum at 0.5 dB Reflectance less than -55 dB for high signal quality Durable with up to 500 rematings without significant loss Operates in temperatures from -40F to 167F (-40C to 75C) RoHS compliant Lightweight and portable for easy handling in the field Includes crimp band and boots for secure connectionsSpecifications: Fiber
Category: Single-mode (OS2)
Corning Logo: Yes
Technology: No-Epoxy/No-Polish
Temperature Range,
Operation: -40C to 75C (-40F to 167F)
Connector Type: ST-compatible
Housing Color: Amber
Boot Color: Blue Tensile Strength 900 m
Cable: 4.9 N ( 1.1 lb) change, less than or equal to 0.2 dB, FOTP-6
Pulling Force: 125 lbs Insertion Loss, Max.: 0.5 dB Insertion Loss, Typical: 0.2 dB

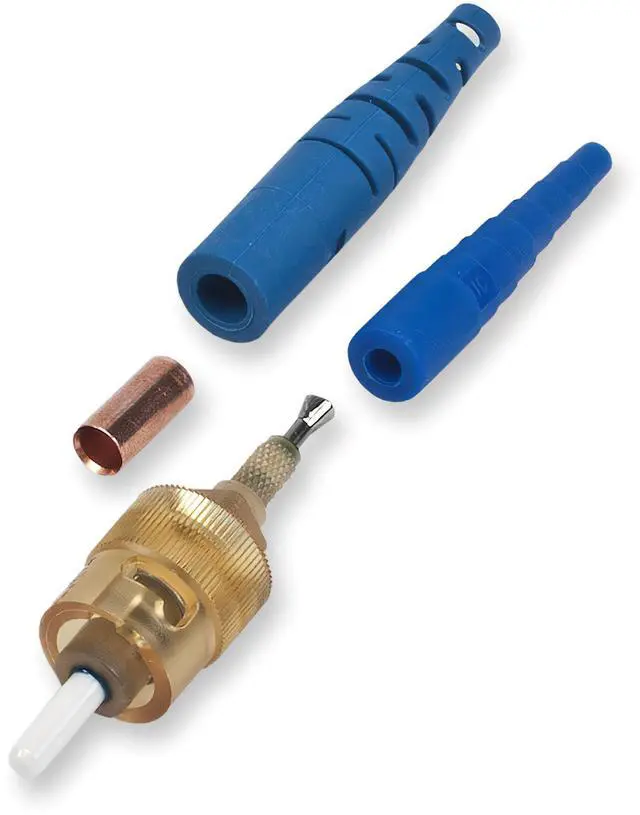

Package Contents: Connector, crimp band, boot (900 m), boot ( 3.0 mm)
Features: No epoxy or polishing required for installation ST-compatible design for universal application Insertion loss typical at 0.2 dB, maximum at 0.5 dB Reflectance less than -55 dB for high signal quality Durable with up to 500 rematings without significant loss Operates in temperatures from -40F to 167F (-40C to 75C) RoHS compliant Lightweight and portable for easy handling in the field Includes crimp band and boots for secure connectionsSpecifications: Fiber
Category: Single-mode (OS2)
Corning Logo: Yes
Technology: No-Epoxy/No-Polish
Temperature Range,
Operation: -40C to 75C (-40F to 167F)
Connector Type: ST-compatible
Housing Color: Amber
Boot Color: Blue Tensile Strength 900 m
Cable: 4.9 N ( 1.1 lb) change, less than or equal to 0.2 dB, FOTP-6
Pulling Force: 125 lbs Insertion Loss, Max.: 0.5 dB Insertion Loss, Typical: 0.2 dB
Package Contents: Connector, crimp band, boot (900 m), boot ( 3.0 mm)
