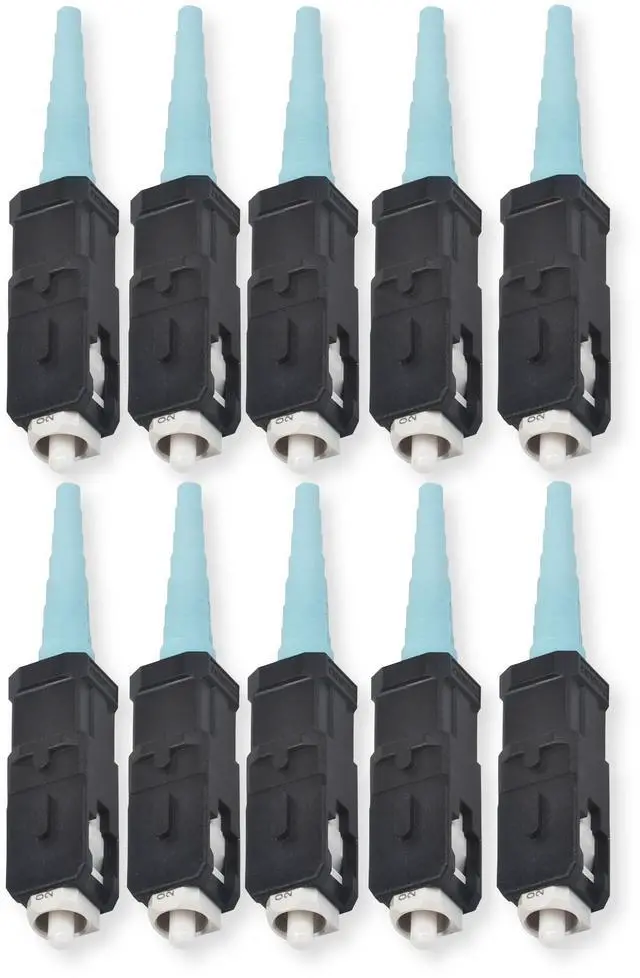

Main image of Corning 95-050-41-X Pack of 10 UniCam SC Connectors, 50 Micron Multimode, OM3/OM4 Compatible, Field-installable, No-Epoxy No-Polish, High Performance Fiber Optic Connector, Aqua Boot, Black Housing

Alt view image 2 of 2 - Corning 95-050-41-X Pack of 10 UniCam SC Connectors, 50 Micron Multimode, OM3/OM4 Compatible, Field-installable, No-Epoxy No-Polish, High Performance Fiber Optic Connector, Aqua Boot, Black Housing

Shop All Corning Products | Visit CloudBeast Store

Corning 95-050-41-X Pack of 10 UniCam SC Connectors, 50 Micron Multimode, OM3/OM4 Compatible, Field-installable, No-Epoxy No-Polish, High Performance Fiber Optic Connector, Aqua Boot, Black Housing

High-Performance Ceramic Ferrule: Ensures precise alignment and superior optical performance for 50 m multimode fiber (OM3/OM4)
Fast Field Installation: No epoxy or polishing required, enabling quick termination in about 50 seconds with the UniCam installation tool
Low Insertion Loss: Typical insertion loss of 0.1 dB and maximum of 0.5 dB, minimizing signal degradation
Excellent Reflectance: Reflectance less than or equal to -26 dB for reliable signal integrity in high-speed networks
Durable Composite Housing: Black housing with aqua boot provides robust protection and easy fiber identification
Broad Operating Temperature: Functional from -40C to 75C (-40F to 167F), suitable for diverse environments
Consistent Optical Performance: Factory-polished end face guarantees uniform quality and performance

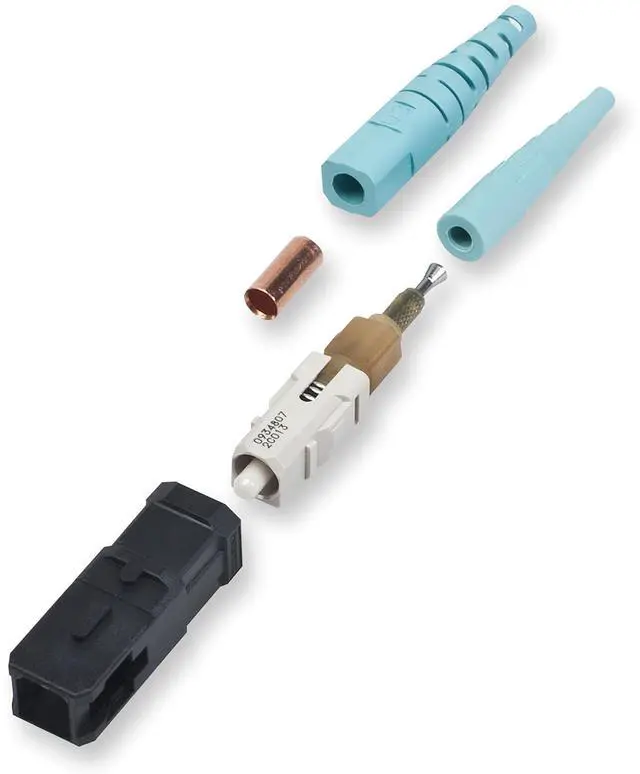

Comprehensive Kit Included: Connector, shroud, crimp band, 900 m boot, and 3.0 mm boot for versatile cable compatibility
Industry Standards Compliant: Meets EIA/TIA 5

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Corning 95-050-41-X Pack of 10 UniCam SC Connectors, 50 Micron Multimode, OM3/OM4 Compatible, Field-installable, No-Epoxy No-Polish, High Performance Fiber Optic Connector, Aqua Boot, Black HousingThe Corning 95-050-41-X UniCam SC Connector is a high-performance, field-installable fiber optic connector designed for 50 m multimode fibers compatible with OM3 and OM4 standards. This connector is perfect for fiber-to-the-workstation and high-speed data applications requiring consistent, high-quality optical connections.
Key Features: Pack of 10 field-installable SC connectors Compatible with 50 m multimode OM3/OM4 fiber No epoxy, no polish installation process Typical insertion loss of 0.1 dB Maximum insertion loss of 0.5 dB Ceramic ferrule for precise alignment Composite black housing with aqua boot Operating temperature range -40C to 75C Includes shroud, crimp band, 900 m and 3.0 mm boots Pulling force rating of 125 lbs Tensile strength of 4.9
N on 900 m cableSpecifications: Fiber
Category: 50 m MM (OM3/OM4)
Technology: No-Epoxy/No-Polish
Temperature Range,
Operation: -40C to 75C (-40F to 167F)
Connector Type: SC
Housing Color: Black
Boot Color: Aqua
Ferrule Material: Ceramic Nominal Fiber
Outer Diameter: 125 m
Tensile Strength Jacketed Cable: 50 N ( 11.24 lbf) Tensile Strength 900 m
Cable: 4.9 N ( 1.1 lb) change Less than or equal to 0.2 dB, FOTP-6 Insertion Loss, Max.: 0.5 dB
Reflectance: Less than or equal to -26 dB
Package Contents: Connector, shroud, crimp band, boot (900 m), boot ( 3.0 mm) per pack
