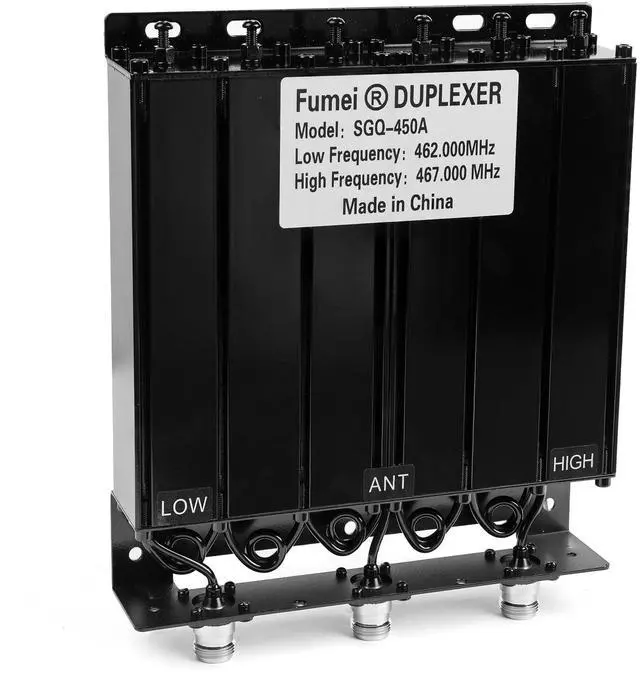

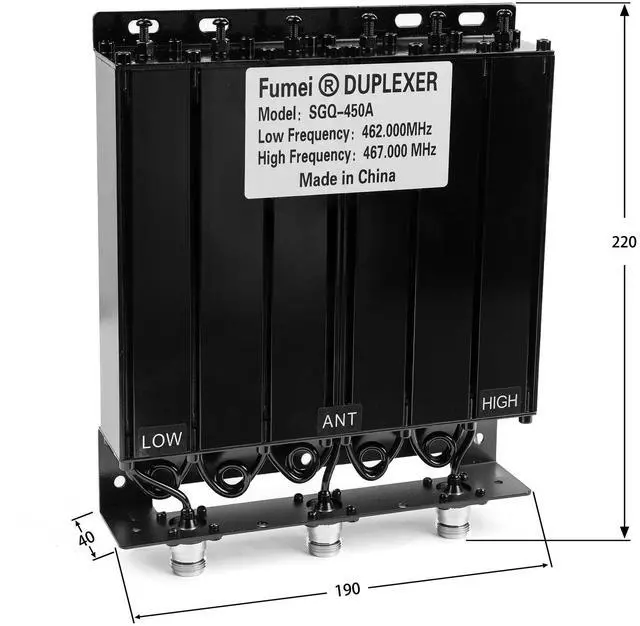

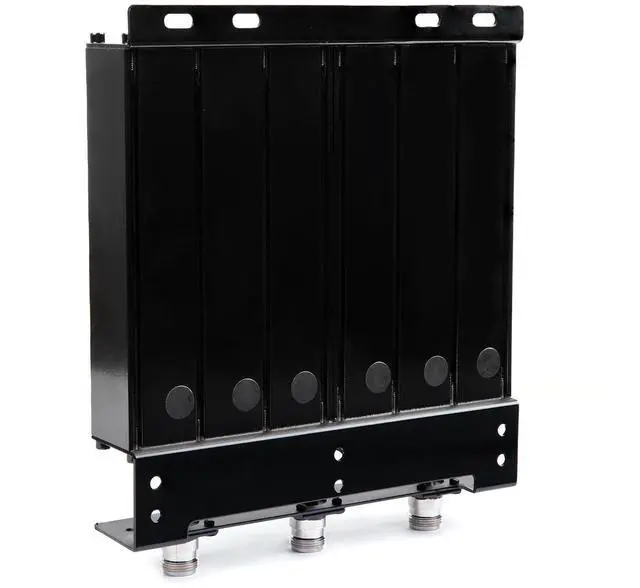

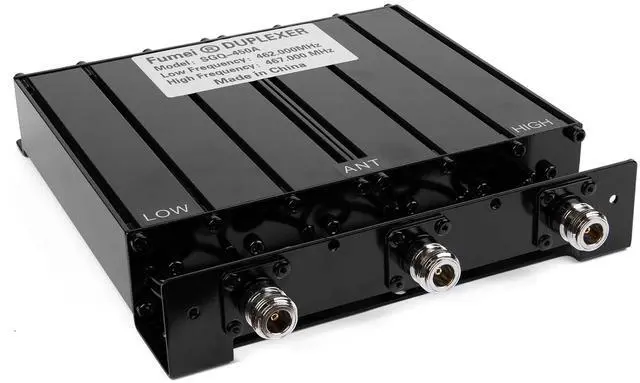

Fumei UHF 400-470MHz 50W Duplexer for Radio Repeater with Preset Low Frequency 462MHz & High Frequency 467MHz & N Female connectors

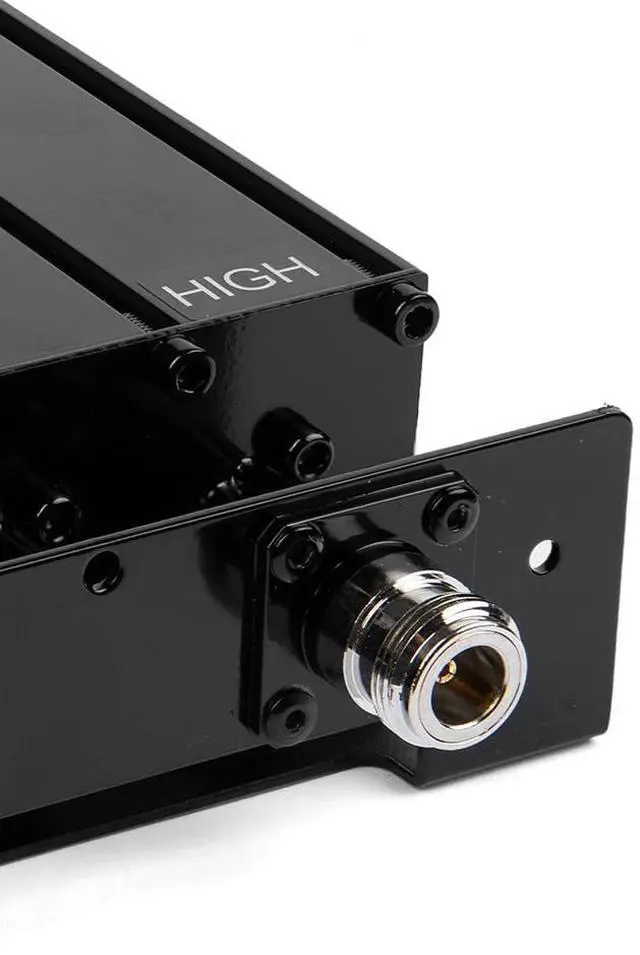

- This item has been set by factory with low frequency 462MHz, high frequency 467MHz and N female connector type, it is easy to build your repeater.
- It is tunable between 400-470MHz, you can turn it by yourself when you have the tools.
- Contact us before order it if you want other low/high frequency tuning
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
:Max power Input: 50W
Frequency Range: 400-470MHz
Isolation Loss: <1dB
V. S. W.
R: <1.3
Isolation: >80dB
Suppression: >80dB
Impedance: 50O
Operating temperature: -25-+55
Packages includes:
1 x duplexer
How to tune the frequency:
1. Prepare the tools inc. three-port network analyzer, dummy load with N male connector, 2 x RF cable from duplexer to the network analyzer, slotted screwdriver and spanner.
2. Power on your network analyzer, according the guidance on frequency network, using it to monitor the frequency, adjust the six screw poles with on duplexer slotted screwdriver to the frequency you want.
