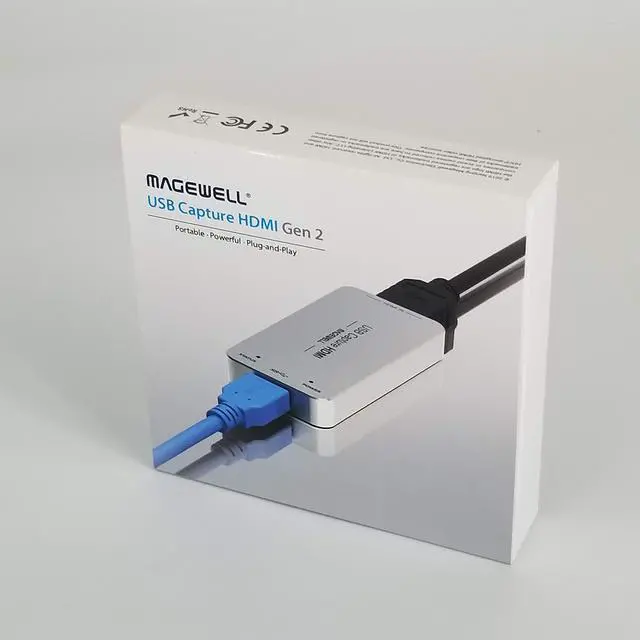

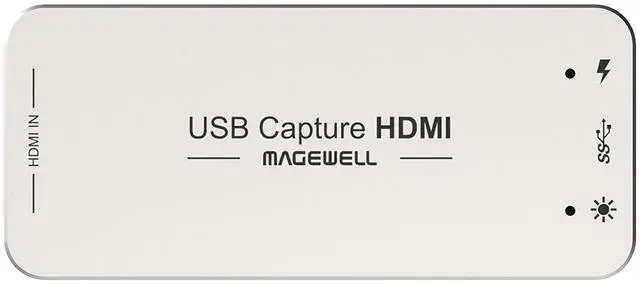

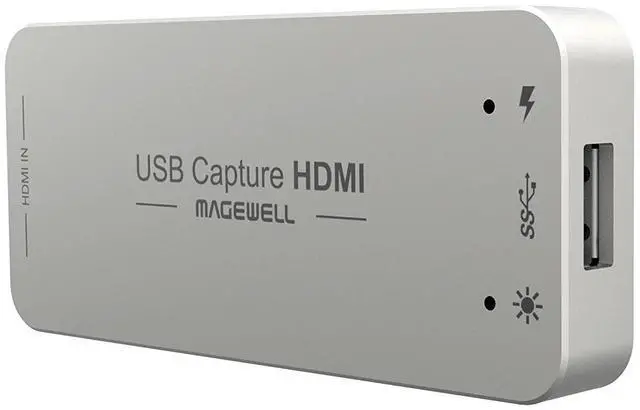

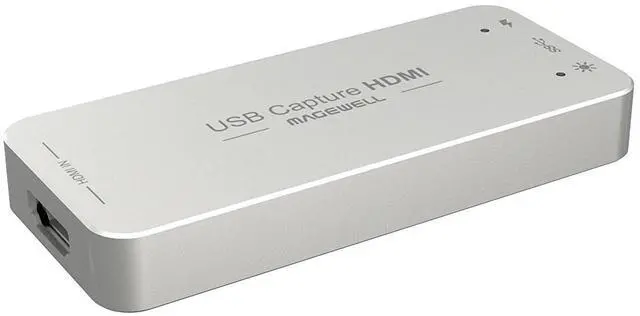

Magewell USB Capture HDMI Gen2 - USB 3.0 HD Video Capture Dongle Model 32060
- Works on Windows, Mac, Linux - No driver needed.
- HDMI + Embedded Audio
- Supported by hundreds of software programs and apps
- Input video resolutions supported up to 2048x2160
- Capture (output) resolutions up to 2048x2160
- 8/10/12-bit color depth
- RGB 4:4:4YCbCr 4:4:4YCbCr 4:2:2 color sampling
- Firmware upgradable
- Many advanced options available through the USB Capture Utility and SDK
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Magewell USB Capture HDMI is a USB 3.0 (USB 2.0 ) dongle that enables a single channel of auto detected HDMI video with embedded stereo audio. Full UVC compatible makes it Driver-Free and Plug and Play on Windows, Linux, and Mac. It will work with any software that supports a native webcam on these platforms. Firmware upgradable makes it future Proof. Two-Year warranty ensures reliability. USB 3.0 cable - Include Supported OS Windows oWindows Desktop 7/8/ 8.1 /10 oWindows Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) Linux (support x86, x64 & ARM architecture) oUbuntu 12.04 / 14.04 / 16.04 / 17.04 / 17.10 / 18.04 (x86 & x64) oCentOS 6.5 /7 (x86 & x64) oFedora 25/26/27 (x86 & x64) oRed hat 6.5 and above (x86 & x64) oOther Linux OS with kernel version 2.6.
35 and above Mac oOS X 10.9 / 10.10 / 10.11 omacOS 10.12 and above Chrome OS Compatible Software - Virtually any software that supports native video devices on the above systems.
This includes: Zoom Skype Mircosoft Teams GoToMeeting Gstreamer VLC OBS StudioXSplit QuickTime Player Any software which uses the native capture API (DirectShow/V4L2/AVCaptureSession) for capture, encoding or streaming HDMI Input Interfaces (HDMI 1.4 a, DVI-D 1.0 ) Host Interface USB 3.0 (compatible with USB 2.0 & USB 3.1 Gen 1) Input features Support for input video resolutions up to 2048x2160
HDMI Specific Features: 165MHz HDMI receiver, support for cables lengths up to 30M, Customized EDID, Extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames, Full colorimetry, 8/10/12-bit color depth, RGB
4:4: 4YCbCr
4:4: 4YCbCr
4:2: 2 color sampling, 2 channel IEC60958 audio streams, Extraction of audio formation information & channel status data, Extraction of video timing information, Extraction of 3D format information, Video capture resolutions up to 2048x2160, up to 120fps*, YUY2 (default)
& UYVY 4:2: 2 8-bit, RGB24
& RGB32 4:4: 4 8-bit, Custom options available Many on-board video processing features
35 and above Mac oOS X 10.9 / 10.10 / 10.11 omacOS 10.12 and above Chrome OS Compatible Software - Virtually any software that supports native video devices on the above systems.
This includes: Zoom Skype Mircosoft Teams GoToMeeting Gstreamer VLC OBS StudioXSplit QuickTime Player Any software which uses the native capture API (DirectShow/V4L2/AVCaptureSession) for capture, encoding or streaming HDMI Input Interfaces (HDMI 1.4 a, DVI-D 1.0 ) Host Interface USB 3.0 (compatible with USB 2.0 & USB 3.1 Gen 1) Input features Support for input video resolutions up to 2048x2160
HDMI Specific Features: 165MHz HDMI receiver, support for cables lengths up to 30M, Customized EDID, Extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames, Full colorimetry, 8/10/12-bit color depth, RGB
4:4: 4YCbCr
4:4: 4YCbCr
4:2: 2 color sampling, 2 channel IEC60958 audio streams, Extraction of audio formation information & channel status data, Extraction of video timing information, Extraction of 3D format information, Video capture resolutions up to 2048x2160, up to 120fps*, YUY2 (default)
& UYVY 4:2: 2 8-bit, RGB24
& RGB32 4:4: 4 8-bit, Custom options available Many on-board video processing features
