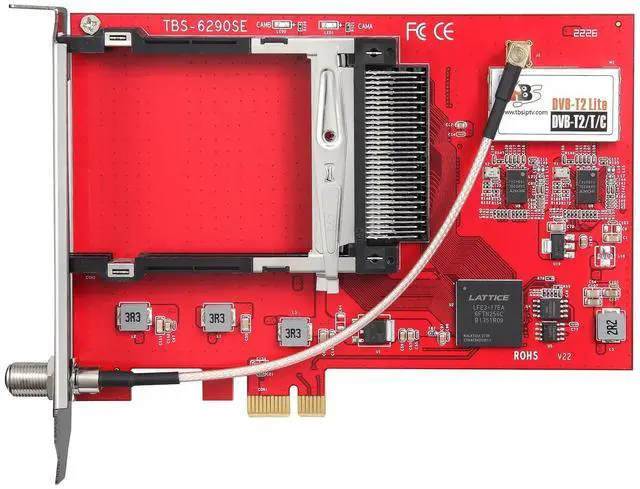

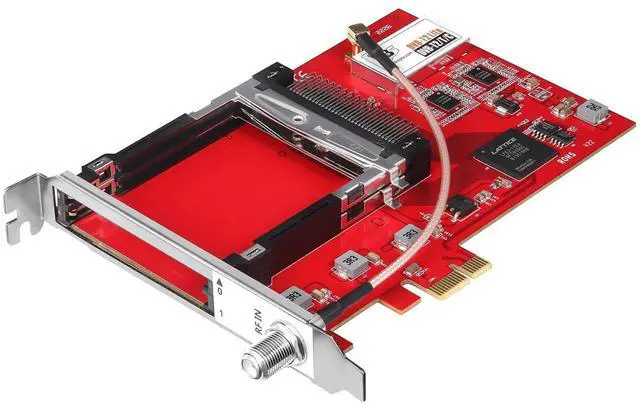

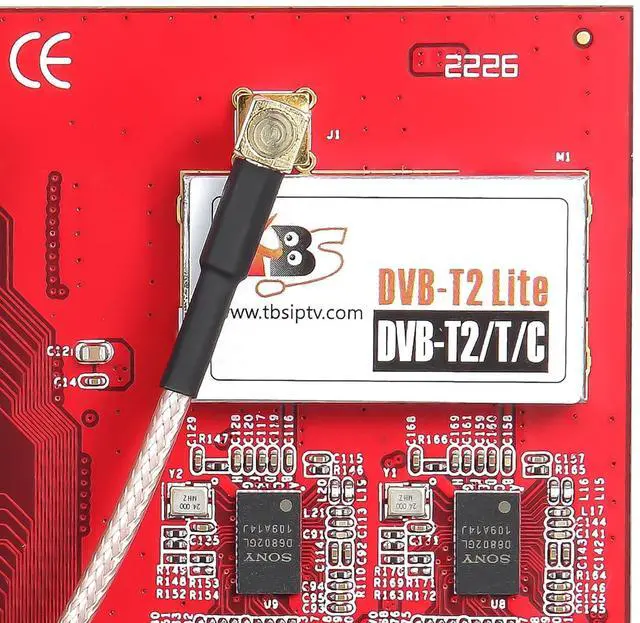

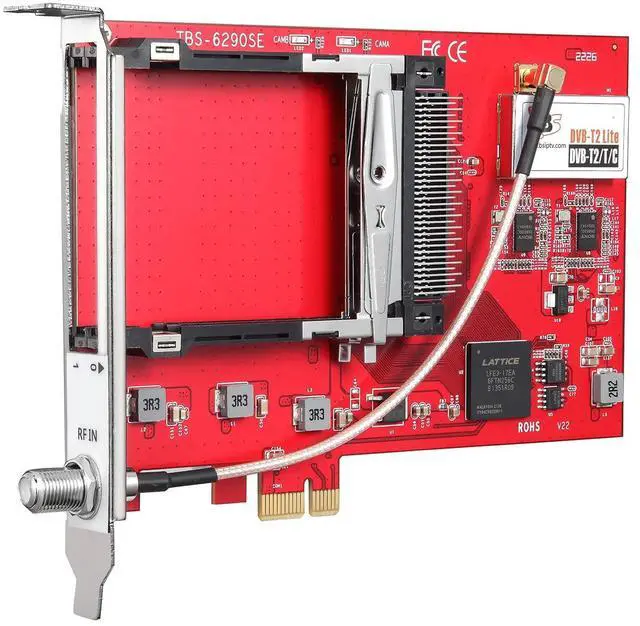

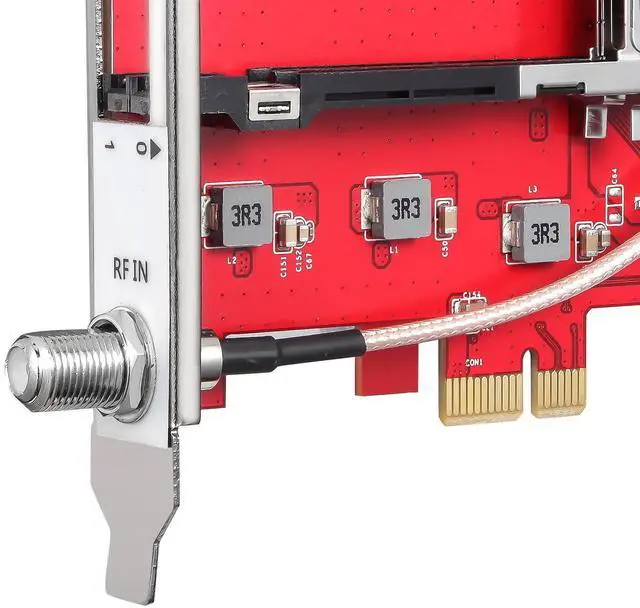

TBS6290se DVB-T2/T/C Dual PCI Express Terrestrial Cable TV Tuner Card with Dual CI Slot for FTA and Encrypted TV Channels
- NETWORK PCI-E CARD: Use with any PC or server (based on linuxwhich has PCI-e slots, receive signals from IP (udp/rtp/http), then decryption and remux , will output FTA channels to IP (udp/rtp/http)
- DUAL CI SLOTS: Can insert 2 CAM inside to decrypt the pay channels
- TBS REMUX SOFTWARE: Receive MPEG TS from multicast (udp/rtp) or http and combine them into one multiple program streams that is suitable for outputing as /dev/dvb/adapterx/secy (x=0-16, y=0,1), then use DVB tools like DVBLAST, TVHEADEND, ASTRA to scan the transponder, then output to network via udp/rtp/http protocol
- DVB-IP GATEWAY: Compatible with TBS tuner cards and servers, this means you can use it with our tuner cards with all DVB standard or server together
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DVB-T2/T2 Lite/T:
Receiving channel: VHF band and UHF band
Channel bandwidth: 6, 7, 8 MHz
DVB-T2/ T modulation type: QPSK, 16QAM, 64QAM, 256QAM
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8
Guard internal: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128, 19/256
Intermediate frequency
IF mode: low IF
Center IF Frequency: 3 ~ 5 MHz
Note: default 4MHz
RF-Input impedance 75 (IEC-DIN female)
RF-Output impedance 75 (IEC-DIN male)
DVB-C:
Fully compliant with DVB-C and ITU J83 A/B/C specifications
Receiving Frequency: 47~862 MHz Tuning Range
Input level: -65~-10dBm
16QAM, 32QAM, 64QAM, 128QAM and 256QAM Support
Symbol Rate: 0.87 to 9Mbaud
System Requirements:
Windows XP / Vista/7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
CD/DVD drive for software installation
Package Contents:
1 x TBS Dual Tuner Dual CI PCIe Card
1 x F connector
Receiving channel: VHF band and UHF band
Channel bandwidth: 6, 7, 8 MHz
DVB-T2/ T modulation type: QPSK, 16QAM, 64QAM, 256QAM
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8
Guard internal: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128, 19/256
Intermediate frequency
IF mode: low IF
Center IF Frequency: 3 ~ 5 MHz
Note: default 4MHz
RF-Input impedance 75 (IEC-DIN female)
RF-Output impedance 75 (IEC-DIN male)
DVB-C:
Fully compliant with DVB-C and ITU J83 A/B/C specifications
Receiving Frequency: 47~862 MHz Tuning Range
Input level: -65~-10dBm
16QAM, 32QAM, 64QAM, 128QAM and 256QAM Support
Symbol Rate: 0.87 to 9Mbaud
System Requirements:
Windows XP / Vista/7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
CD/DVD drive for software installation
Package Contents:
1 x TBS Dual Tuner Dual CI PCIe Card
1 x F connector
