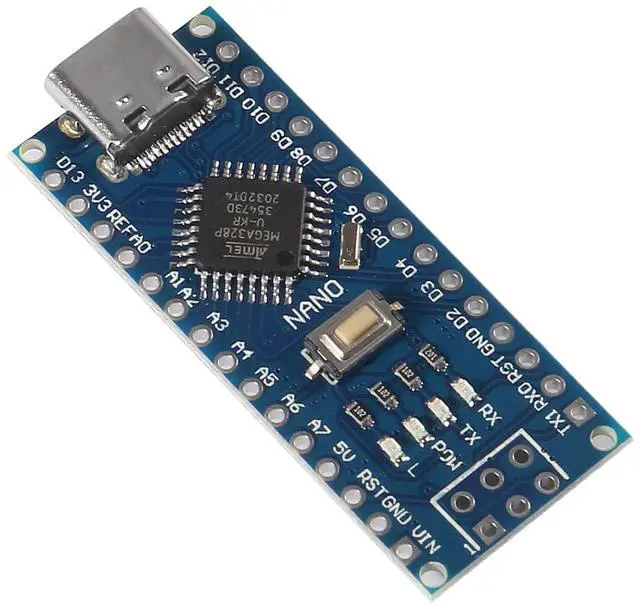

AITRIP 5pcs for Nano Board CH340/ATmega+328P Without USB Cable, Type-C Connection Compatible with Arduino Nano V3.0
- The Nano can be powered via the Type-C USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
- Support for external 5V~12V DC power supply, Support power supply by 9V battery.

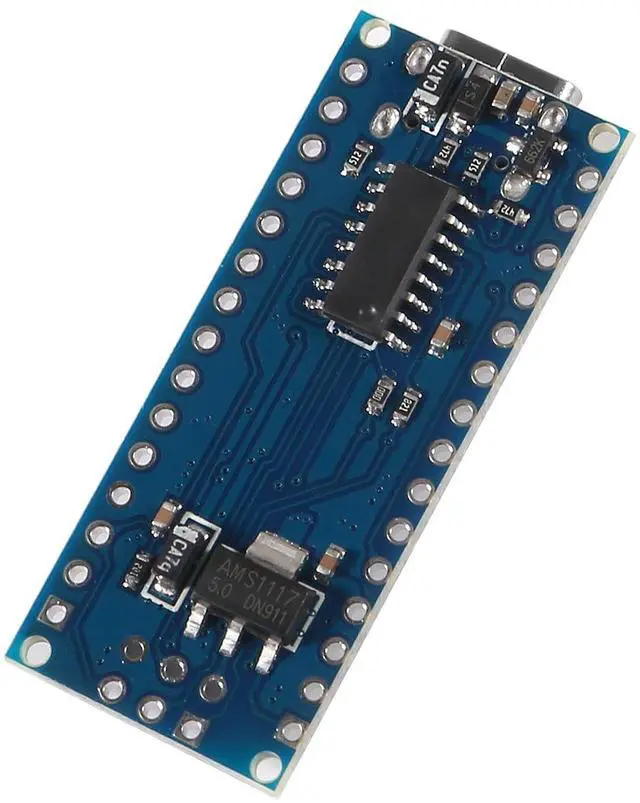

- The Nano is using the chips ATmega328P and CH340, Replace FT232RL.
- It is a smallest, complete, and breadboard friendly board. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper.
- Uses the CH340G instead of the FTDI FT232RL IC which can improve the transfer speed, increase the stability in windows and solve the issues with FTDI drivers bricking non-original chips, ATMEGA328P offers even more programming and data memory space. It also has a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one side, power, and ground on the other).
- Comes with 5packs of Nano V3.0 M
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

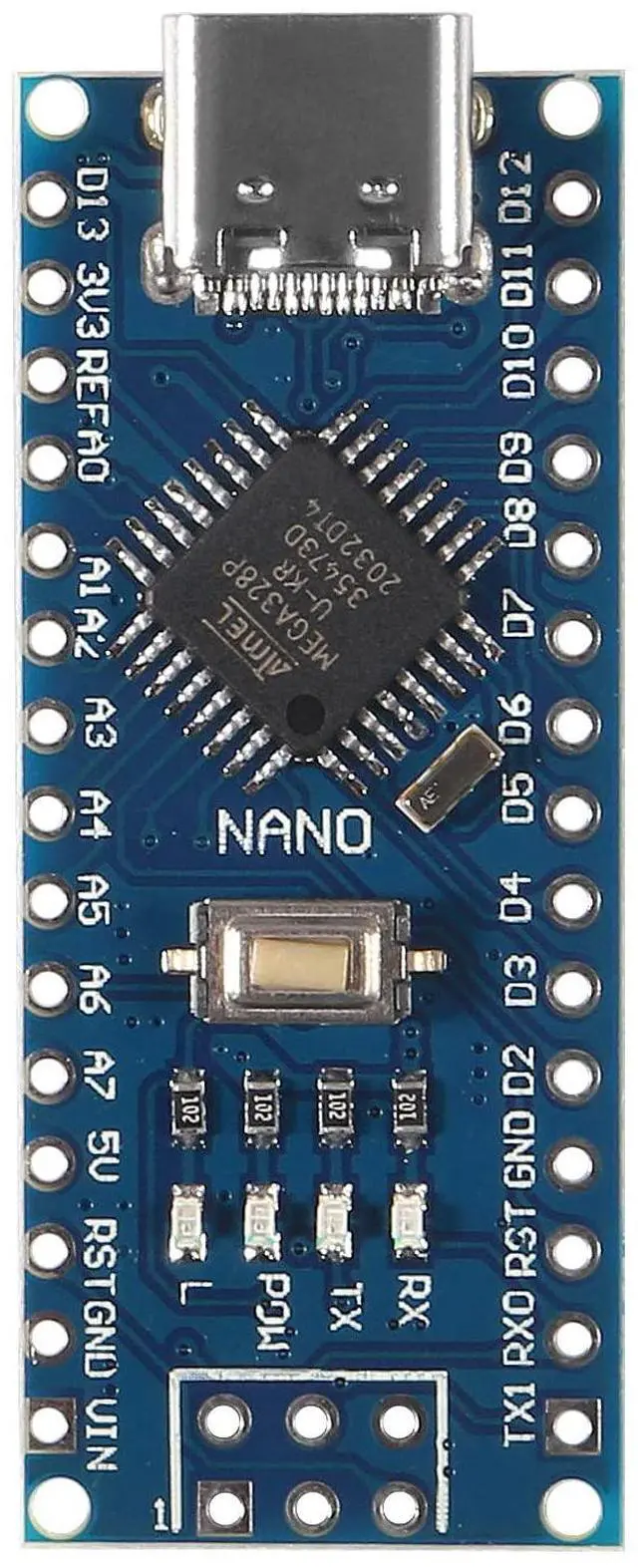

Features:
CH340G Replace FT232RL
Operating Voltage (logic level): 5V
8 analog inputs ports: A0 ~ A7
14 Digital input / output ports: TX, RX, D2 ~ D13
6 PWM ports: D3, D5, D6, D9, D10, D11
1 pairs of TTL level serial transceiver ports RX / TX
Using Atmel Atmega328P-AU MCU
Support USB download and Power; external 5V ~ 12V DC power supply; power supply by 9V battery; Support ISP download
Package included:

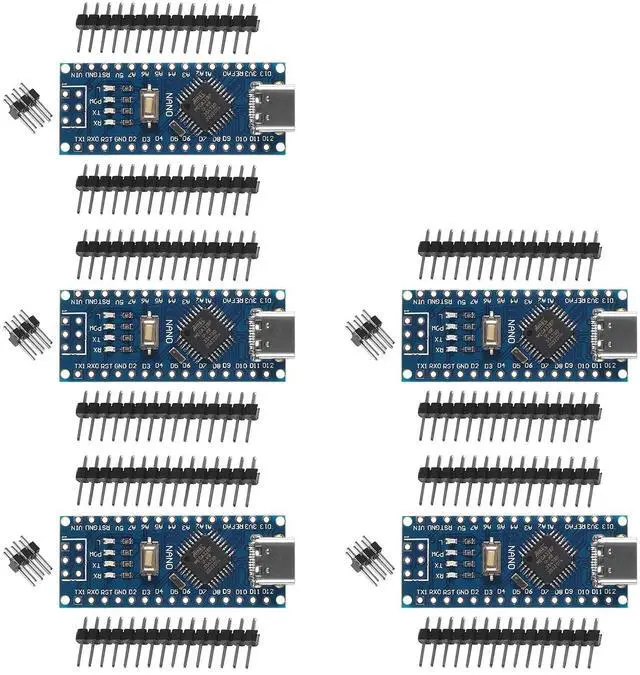

5 pcs USB Type-C Connector for Nano V 3.0 ATmega328P CH340G Controller Board (not soldered)
CH340G Replace FT232RL
Operating Voltage (logic level): 5V
8 analog inputs ports: A0 ~ A7
14 Digital input / output ports: TX, RX, D2 ~ D13
6 PWM ports: D3, D5, D6, D9, D10, D11
1 pairs of TTL level serial transceiver ports RX / TX
Using Atmel Atmega328P-AU MCU
Support USB download and Power; external 5V ~ 12V DC power supply; power supply by 9V battery; Support ISP download
Package included:
5 pcs USB Type-C Connector for Nano V 3.0 ATmega328P CH340G Controller Board (not soldered)
