$68.99
Meet Your Seller
Waveshare ESP32-S3 1.85inch Round Display Development Board 360x360, 32-Bit LX7 Dual-Core Processor, Up to 240MHz Frequency, Supports Wi-Fi & BLE 5, Accelerometer and Gyroscope Sensor, Without Touch

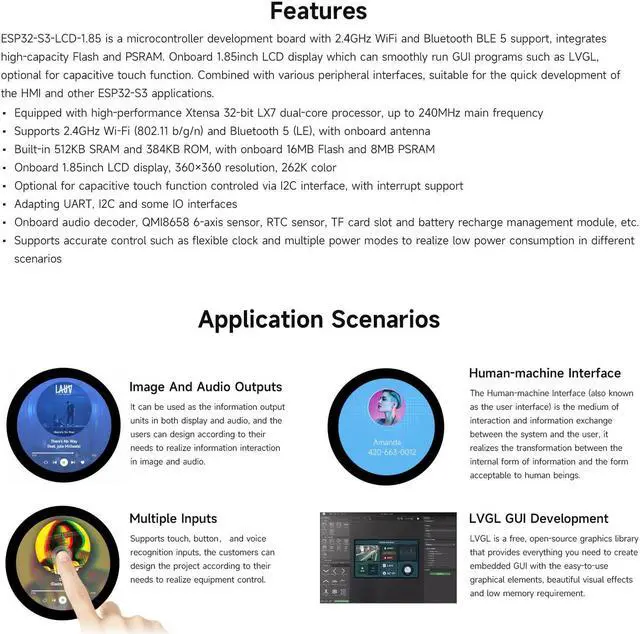

- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

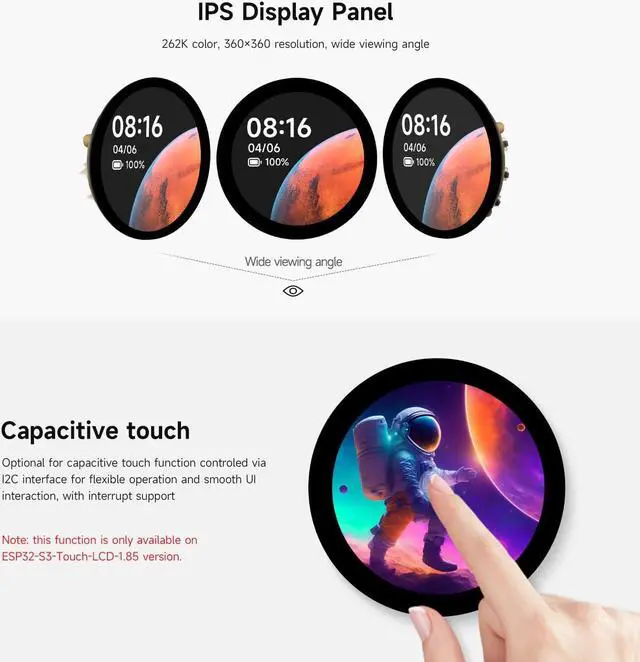

- Onboard 1.85inch LCD display, 360x360 resolution, 262K color. Optional for capacitive touch function controled via I2C interface, with interrupt support
- Adapting UART, I2C and some IO interfaces. Onboard audio decoder, Microphone, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
- Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
- Rich WiKi Resources: We provide official Wiki resources, please contact us for more information.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Waveshare ESP32-S3 1.85 inch Round Display Development Board 360x360, 32-Bit LX7 Dual-Core Processor, Up to 240MHz Frequency, Supports Wi-Fi & BLE 5, Accelerometer and Gyroscope Sensor, Without Touch
