$81.99
Meet Your Seller

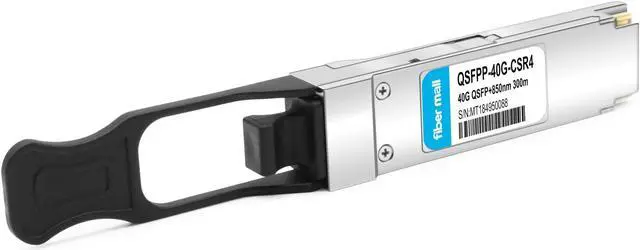

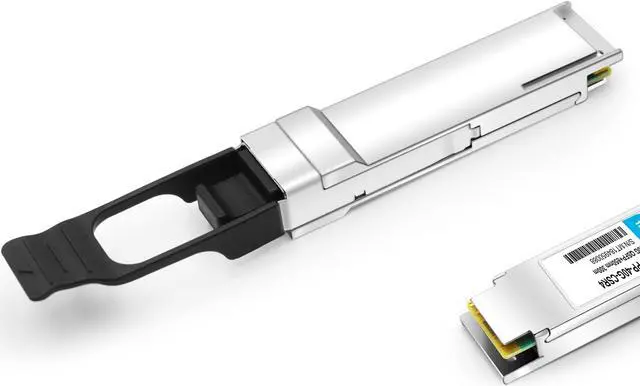

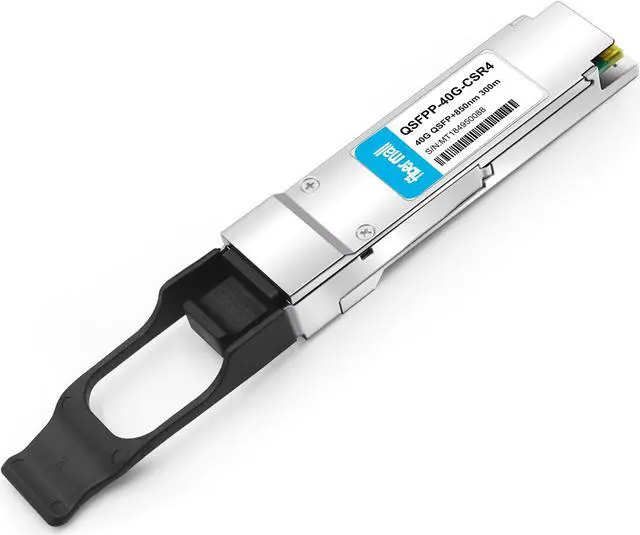

40G QSFP+ CSR4 for HPE H3C JG709A,40GBASE-CSR4 QSFP+ 850nm 400m MTP/MPO MMF DOM Optical Transceiver Module
- [(QSFP+ 40G)] HPE H3C JG709A 40Gigabit Ethernet, coding as HPE H3C JG709A also compatible
- [(40GBASE-CSR4)] QSFP+ transceiver module, 40Gbps,multimode 850nm, 400m, MTP/MPO connector, Four-channel full-duplex, Hot Pluggable, support DOM
- [(Protocols )] 40G Ethernet, MTP/MPO optical connector Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA Compliant
- [(3 Warranty)] - Enjoy Fibermall 30-Days Free-returned, 65-Days Free-replacement 5-Years Free-maintenance
- [(Customization)] Fibermall supports regular custom service for your options
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Fiber Mall HPEH3CJG709A Compatible QSFP+ Optical Transceiver Module is used in 40GBASE Ethernet throughput up to 400m over MMF at 850nm wavelength via MTP/MPO connector. It can also be used in 4x10G mode along with ribbon to duplex fiber breakout cables for connectivity to four 10GBASE-SR optical interfaces. It is compliant with the QSFP+ MSA, IEEE 802.3 ba 40GBASE-SR4 and IEEE 802.3 ae 10GBASE-SR standards.
Product Featuresv HPE H3C Genuine: JG709Av
Form Type: QSFPv 4 independent full-duplex channelsv Up to 11.2G bps per channel bandwidthv Aggregate bandwidth of > 40Gbpsv MTP/MPO optical connectorv QSFP MSA compliant v Digital diagnostic capabilitiesv Capable of over 300m transmissionv CML compatible electrical I/O v Single + 3.3V power supply operating v TX input and RX output CDR retiming v Built-in digital diagnostic functions v
Temperature range: 0degC to 70degC v RoHS Compliant Part Applicationsv Rack to rackv Data centersv Metro networksv Switches and Routersv Infiniband 4x SDR, DDR, QDR Platform Support HPE H3C JG709A is designed for a wide range of HPE H3C equipment. HPE H3C 7500HPE H3C 10500HPE H3C 5900HPE H3C 7900HPE H3C 12500HPE H3C 5930HPE H3C 11900HPE H3C 12900 Package1*sfp dust cover1 *pair 40Gbps CSR4 fiber transceiver module 1* package box
Product Featuresv HPE H3C Genuine: JG709Av
Form Type: QSFPv 4 independent full-duplex channelsv Up to 11.2G bps per channel bandwidthv Aggregate bandwidth of > 40Gbpsv MTP/MPO optical connectorv QSFP MSA compliant v Digital diagnostic capabilitiesv Capable of over 300m transmissionv CML compatible electrical I/O v Single + 3.3V power supply operating v TX input and RX output CDR retiming v Built-in digital diagnostic functions v
Temperature range: 0degC to 70degC v RoHS Compliant Part Applicationsv Rack to rackv Data centersv Metro networksv Switches and Routersv Infiniband 4x SDR, DDR, QDR Platform Support HPE H3C JG709A is designed for a wide range of HPE H3C equipment. HPE H3C 7500HPE H3C 10500HPE H3C 5900HPE H3C 7900HPE H3C 12500HPE H3C 5930HPE H3C 11900HPE H3C 12900 Package1*sfp dust cover1 *pair 40Gbps CSR4 fiber transceiver module 1* package box
