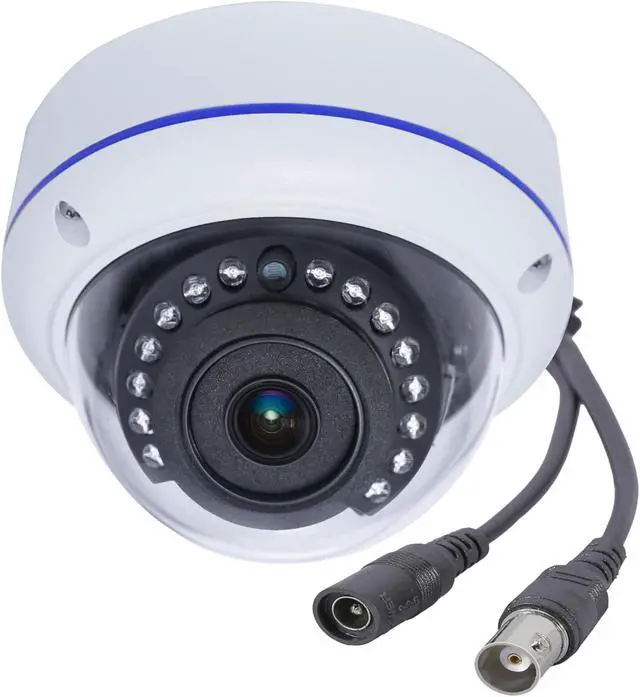

5MP 4MP 180 Degree Wide Angle Dome Security Camera HD-TVI/CVI/AHD/960H Analog 4 in 1 Super Hybrid HD CCTV Surveillance 1.7mm Fisheye Lens Outdoor/Indoor IR Day&Night Vision Home Cam

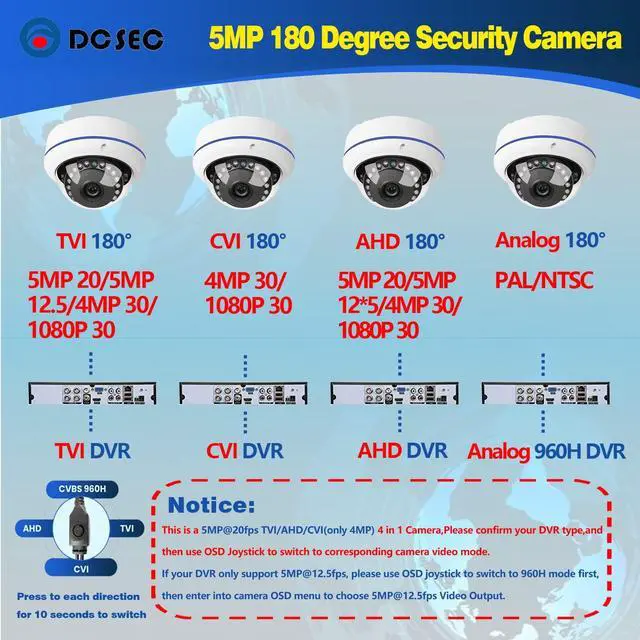

- [(Notice)] This is a 5MP@20fps TVI/AHD/CVI 4 in 1 camera, Please confirm your DVR type, and then use OSD Joystick to switch to corresponding camera video mode. If your DVR only supports [email protected], please use OSD joystick to switch to 960H mode first, then enter into camera OSD menu to choose [email protected] video output.
- This CCTV camera supports TVI/AHD/CVI/960H CVBS (Analog) 4 Modes of video output.The default video mode is Analog working mode(only 1200TVL,not very clear), please change to corresponding VIDEO MODE by Joystick cable according to your DVR before use.1/2.5" 5MP CMOS sensor Super Hybrid video output to ensure high image resolution.
- Camera working mode: TVI(5MP 20fps/5MP 12*5/4MP 30/1080P 30), AHD(5MP 20fps/5MP 12*5/4MP 30/1080P 30), CVI(4MP 30/1080 30),CVBS(NTSC/PAL),pls note that CVI do not have 5MP,only have 4MP
- 5MP High Definition 180 Degree Wide Angle Full Room Surveillance Monitor,Everything Is Under Control. 1 Camera Can Replace 3 Cameras,Cable Saved
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
See in the Dark without IR leds Sony CCTV Low Lux 0.00001L ux Day and Night Color Image Starlight CCD Dome indoor Security camera with fixed lens (Can not see at totally dark, need a little light, star light is enough)
Product Name: Color Image Day/Night CCTV Dome Camera
Product Model: DC-CL40CD
Video Sensor: 1/3'' Sony Super HAD II CCD
Pixel:
PAL: 976 (H) * 582 (VF) /
NTSC: 976 (H) * 494 (V)
Scanning: 2:1 Interlace
Sync.
Mode: Internal
Horizontal/vertical Frequency:
PAL: 15.625 kHz, 50.00 HZ /
NTSC: 15.734 kHZ, 59.94HZ
Resolution: Color 700TVL
Video output: 1.0V p-p/75O CVBS
S/N Ratio: >50dB (AGC off)
Illumination: 0.00001L ux/F 1.2 (color)
Gamma correction: 0.45
Power supply: 12VDC, 3W
Operation temperature and humidity: -10 degree ~ 50 degree, 20%~90% RH
Lens: 4/6/8/12 lens(Defaulty we will send the camera with 4mm lens, if you need 6 or 8mm or 12mm, pls leave us a message when you made the order)
Electronic shutter:
PAL: 1/50~1/100, 000s / NTSC: 1/60~1/100, 000s
Day/night mode: Color
Gain control: Auto
Sync.
Mode: Internal
Weight: 600g
Product Name: Color Image Day/Night CCTV Dome Camera
Product Model: DC-CL40CD
Video Sensor: 1/3'' Sony Super HAD II CCD
Pixel:
PAL: 976 (H) * 582 (VF) /
NTSC: 976 (H) * 494 (V)
Scanning: 2:1 Interlace
Sync.
Mode: Internal
Horizontal/vertical Frequency:
PAL: 15.625 kHz, 50.00 HZ /
NTSC: 15.734 kHZ, 59.94HZ
Resolution: Color 700TVL
Video output: 1.0V p-p/75O CVBS
S/N Ratio: >50dB (AGC off)
Illumination: 0.00001L ux/F 1.2 (color)
Gamma correction: 0.45
Power supply: 12VDC, 3W
Operation temperature and humidity: -10 degree ~ 50 degree, 20%~90% RH
Lens: 4/6/8/12 lens(Defaulty we will send the camera with 4mm lens, if you need 6 or 8mm or 12mm, pls leave us a message when you made the order)
Electronic shutter:
PAL: 1/50~1/100, 000s / NTSC: 1/60~1/100, 000s
Day/night mode: Color
Gain control: Auto
Sync.
Mode: Internal
Weight: 600g
