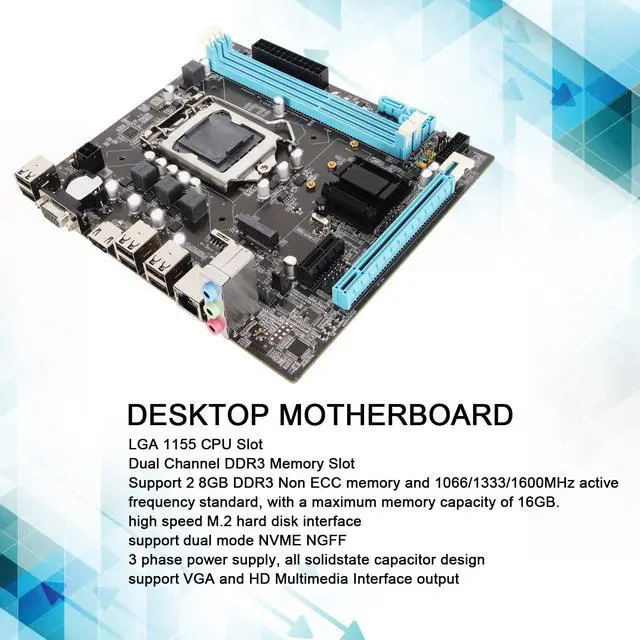

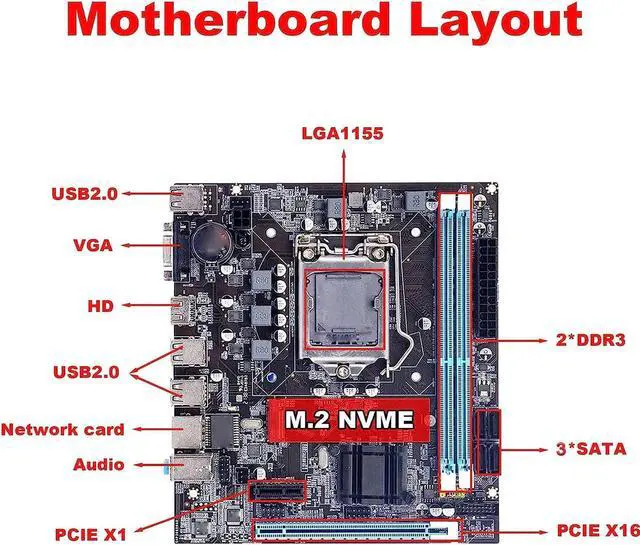

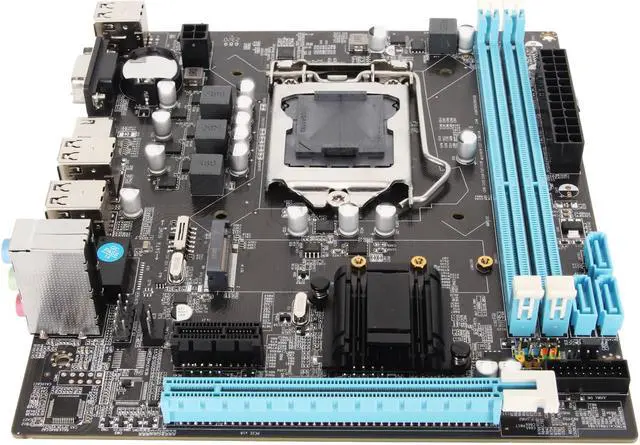

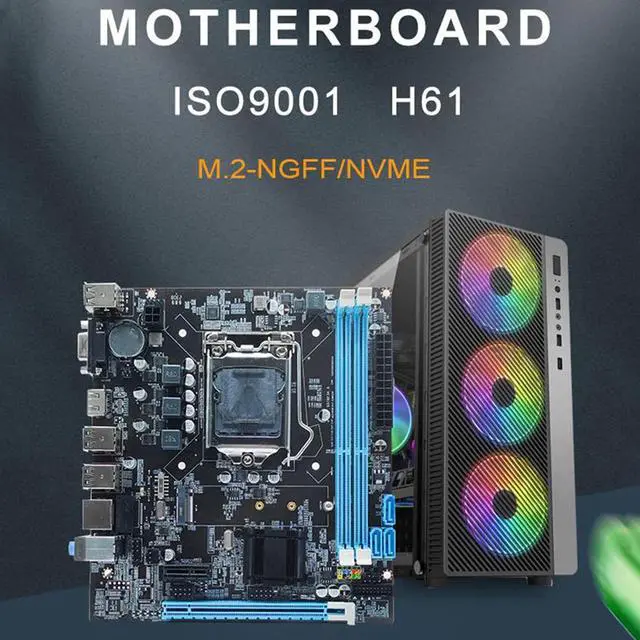

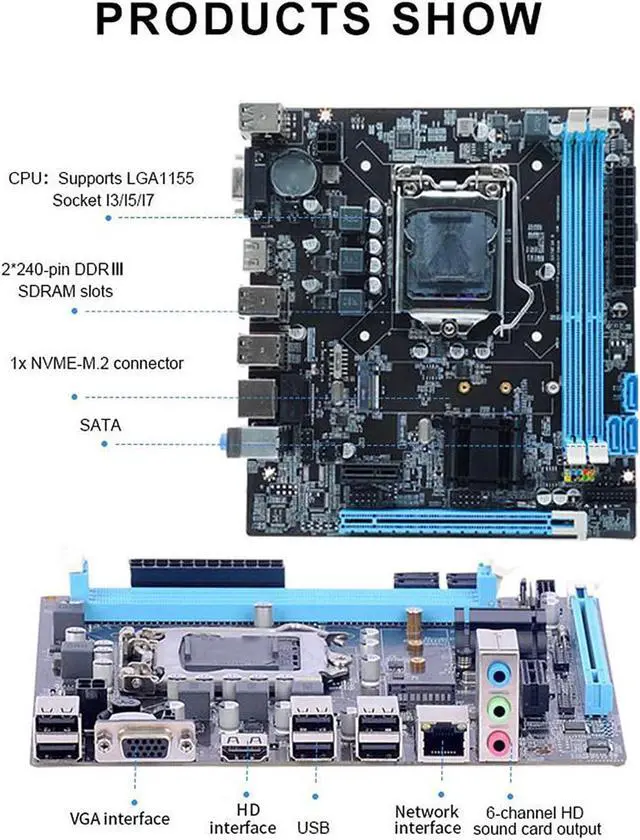

Micro ATX Motherboard, LGA 1155 CPU Slot, Dual Channel DDR3, M.2 NVMe NGFF, HD VGA Output, 3 Phase Power
- [POWERFUL COMPATIBILITY] Supports LGA1155 Socket for Intel i3/i5/i7 processors, as well as Pentium and Celeron series CPUs.
- [HIGH PERFORMANCE] Dual Channel DDR3 support with a maximum memory capacity of 16GB, ensuringmultitasking and faster data transfer.
- [FAST STORAGE] M.2 NVMe NGFF interface with options for high or low-speed PCIe hard disk and SATA2.0 channel, providing flexible storage solutions.
- [STABLE AND ] 3 phase power supply and all solid-state capacitor design ensure stable of the motherboard. Compatible with a range of PC accessories.
- [VERSATILE CONNECTIVITY] Featuring VGA and HD Multimedia Interface output, PCIe X16 graphics card slot, 6 USB 2.0 ports, and 3 SATA2.0 ports for easy connectivity and expansion.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Spec:
Item Type: Desktop Motherboard
Material: Printed Circuit Board
Battery: 240mAh CR2032 Battery (Inbuilt Battery Included)
CPU Slot Type: LGA 1155 I3/I5/I7/for Pentium/for Celeron Series CPU
Storage: 42.0 (3GB/s) Ports
LAN: 10/100Mbps LAN
Input and Output Interface: 6 x USB 2.0, 1 x VGA Port, 1 x HD Multimedia Interface Port, 1 x RJ45 Port, 1 x 3 in 1 Audio Port (Line Input/Line Output/Microphone Input)
Onboard Interface: 1 x 24Pin ATX Power Connector, 1 x 4Pin ATX 12V Power Connector, 2 x USB Port(Support 4 x USB 2.0 ), 1 x F Audio Connector, 1 x F Panel Connector, 1 x F Speaker Connector, 1 x Fan Connector, 1 x LPC Debug Connector
Expansion Slot: 1 x PCI Express X16 Slot, 1 x PCI Express X1 Slot, 1 x M. 2 NVMe/NGFF Slot
Integrated Audio: Onboard ALC 6 Channel HD Audio Codec, Provide Front Audio Interface, Front Stereo Mic
Structure: Micro ATX Structure (17 x 19cm / 6.7 x 7.5 in)
Package List:
1 xDesktop Motherboard
How To Use:
take out and use
Item Type: Desktop Motherboard
Material: Printed Circuit Board
Battery: 240mAh CR2032 Battery (Inbuilt Battery Included)
CPU Slot Type: LGA 1155 I3/I5/I7/for Pentium/for Celeron Series CPU
Storage: 42.0 (3GB/s) Ports
LAN: 10/100Mbps LAN
Input and Output Interface: 6 x USB 2.0, 1 x VGA Port, 1 x HD Multimedia Interface Port, 1 x RJ45 Port, 1 x 3 in 1 Audio Port (Line Input/Line Output/Microphone Input)
Onboard Interface: 1 x 24Pin ATX Power Connector, 1 x 4Pin ATX 12V Power Connector, 2 x USB Port(Support 4 x USB 2.0 ), 1 x F Audio Connector, 1 x F Panel Connector, 1 x F Speaker Connector, 1 x Fan Connector, 1 x LPC Debug Connector
Expansion Slot: 1 x PCI Express X16 Slot, 1 x PCI Express X1 Slot, 1 x M. 2 NVMe/NGFF Slot
Integrated Audio: Onboard ALC 6 Channel HD Audio Codec, Provide Front Audio Interface, Front Stereo Mic
Structure: Micro ATX Structure (17 x 19cm / 6.7 x 7.5 in)
Package List:
1 xDesktop Motherboard
How To Use:
take out and use
