$64.99
Meet Your Seller
FanyiTek HD-MI VGA LCD Display Controller Board for 21.5 inch LM215WF3 SDA1 1920x1080 30 Pin EDP LCD Screen
- [(Compatible Screen model )] 21.5 inch 1920x1080 FHD LM215WF3-SDA1 30pin eDP LCD screen
- [(LCD Controller Board)] Video input: HDMI VGA,Audio Output: Speaker Connector ,Pls ensure that the board is used in an insulated environment to avoid short circuits.
- [(Input Power Supply)] 12V DC more than 3A (power adapter not included in package ,should be prepared by yourself) .
- [(Compatible parts)] Speaker: 8ohm 2W 70x33x15mm 4Pin PH2.0 connection.

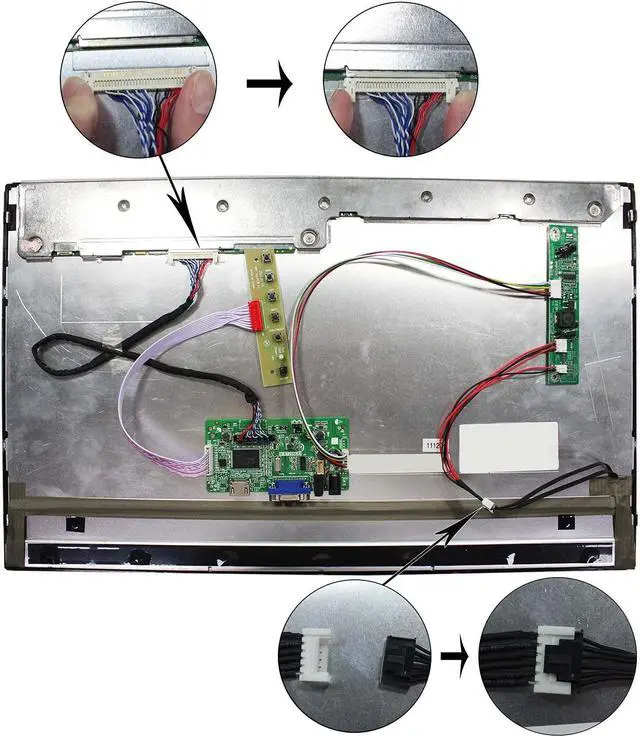

- [(Plug and play)] Connecting the cables and ports according to link picture details (if screen white screen ,or led light flash,that means the signal cable connecting wrong ) ,Power on ,enter HDMI/VGA signal cable ,Button light become green,the screen can work well.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

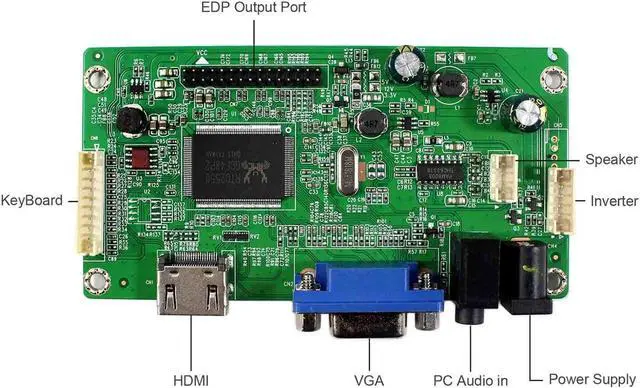

LCD Controller Board:
HDMI VGA Board Work for 30Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: HDMI PC-Audio In
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English
Board Size: 107mm x 55mm x 16mm
Compatible Work With:
21.5 inch 1920x1080:
LM215WF3-SDA1

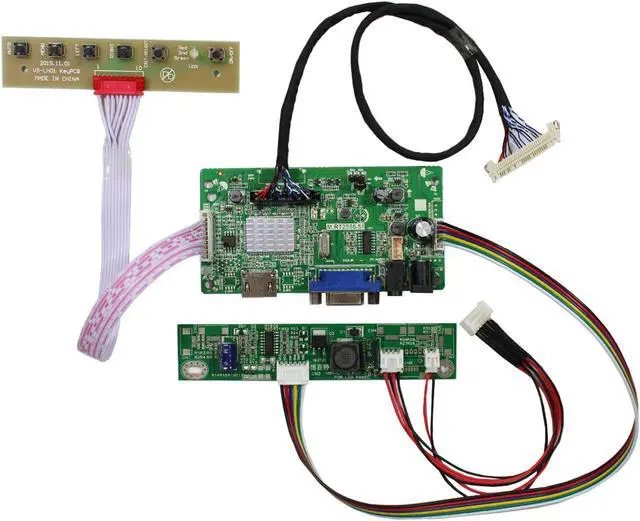

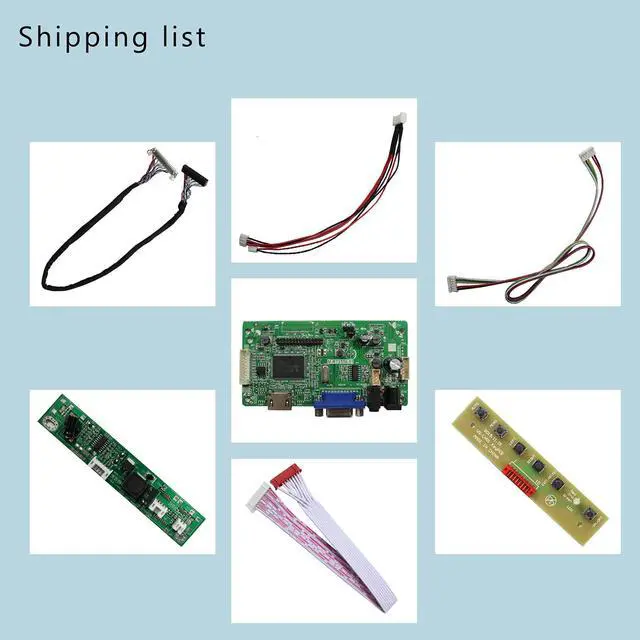

Packing list:
1x HD-MI VGA LCD Controller Board VS-RTD2556HV-V2
1x Signal Cable
1x Keyboard With Cable
HDMI VGA Board Work for 30Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: HDMI PC-Audio In
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English
Board Size: 107mm x 55mm x 16mm
Compatible Work With:
21.5 inch 1920x1080:
LM215WF3-SDA1
Packing list:
1x HD-MI VGA LCD Controller Board VS-RTD2556HV-V2
1x Signal Cable
1x Keyboard With Cable
