• $60.99
  • Free 30-day Returns
  • Price alert
    Shop it at NeweggBusiness.

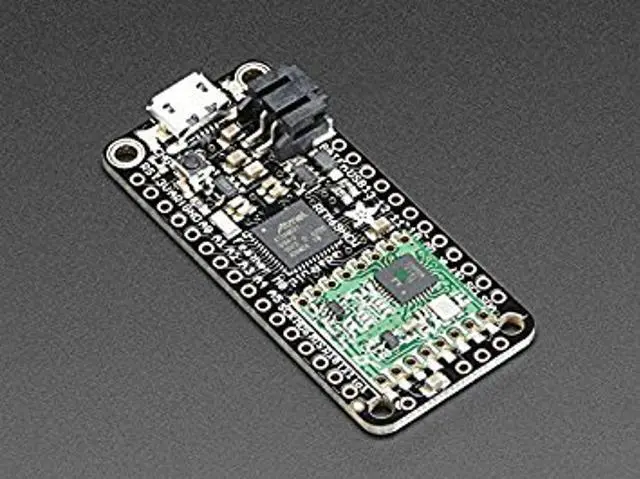

    Adafruit (PID 3176 Feather M0 RFM69HCW Packet Radio - 868 or 915 MHz

    • Measures 2.0" x 0.9" x 0.3" (51mm x 23mm x 8mm) without headers soldered in Light as a (large?) feather - 5.8 grams
    • ATSAMD21G18 @ 48MHz with 3.3V logic/power No EEPROM
    • 3.3V regulator with 500mA peak current output. Built in 100mA lipoly charger with charging status indicator LED
    • USB native support, comes with USB bootloader and serial port debugging You also get tons of pins - 20 GPIO pins
    • Hardware Serial, hardware I2C, hardware SPI support 8 x PWM pins 10 x analog inputs 1 x analog output
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Feather is the new development board from Adafruit, it is thin, light, and lets you fly! We designed Feather to be a new standard for portable microcontroller cores.
    This is the Adafruit Feather M0 RFM69 Packet Radio (868 or 915 MHz) - our take on an microcontroller with a RFM69HCW packet radio transceiver plus built in USB and battery charging. Its an Adafruit Feather M0 with a 900MHz radio module cooked in!
    The ATSAMD21G18 chip comes with built in USB so it has USB-to-Serial program & debug capability built in with no need for an FTDI-like chip.
    We added a connector for any of our 3.7V Lithium polymer batteries and built in battery charging. You don't need a battery, it will run just fine straight from the micro USB connector. But, if you do have a battery, you can take it on the go, then plug in the USB to recharge. The Feather will automatically switch over to USB power when its available.
    ISM band Radio Features:
    SX1231 based module with SPI interface
    Packet radio with ready-to-go Arduino libraries
    +13 to +20 dBm up to 100 mW Power Output
    50mA (+13 dBm) to 150mA (+20dBm) current draw for transmissions
    Range of approx. 350 meters, depending on obstructions, frequency, antenna and power output
    Create multipoint networks with individual node addresses
    Encrypted packet engine with AES-128
    Simple wire antenna or spot for uFL connector
    Comes fully assembled and tested, with a USB bootloader that lets you quickly use it with the Arduino IDE. We also toss in some headers so you can solder it in and plug into a solderless breadboard. You will need to cut and solder on a small piece of wire (any solid or stranded core is fine) in order to create your antenna. Lipoly battery and USB cable not included
