    Adafruit (PID 1946 FONA - Mini Cellular GSM Breakout UFL Version

    • Send and receive SMS messages
    • Send and receive GRPS data (TCP/IP, HTTP, etc)
    • Scan and receive FM radio broadcasts
    • NOT INCLUDED: Microcontroller, external antenna, SIM card, other components to complete your project
    • Soldering is required
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

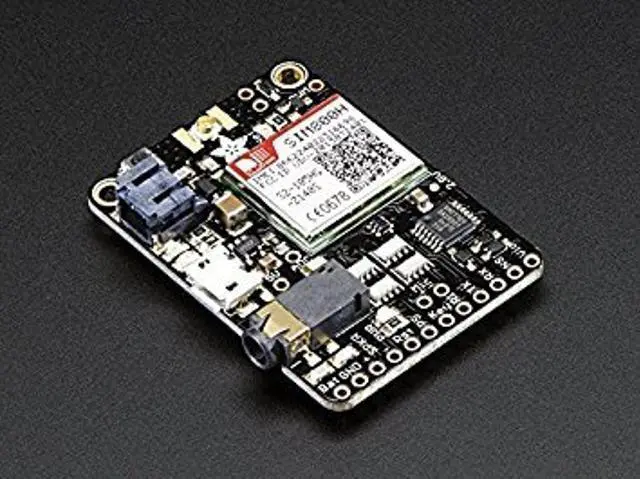

    Introducing Adafruit FONA MiniGSM, an adorable all-in-one cellular phone module that lets you add voice, text, SMS and data to your project in an adorable little package.
    This module measures only 1.75" x 1.25". At the heart is a GSM cellular module (we use the latest SIM800). This module can do just about everything. This version has a uFL connector.
    Quad-band 850/900/1800/1900MHz - connect onto any global GSM network with any 2G SIM (in the USA, T-Mobile is suggested)
    Make and receive voice calls using a headset OR an external 8 speaker + electret microphone
    Send and receive SMS messages
    Send and receive GPRS data (TCP/IP, HTTP, etc. )
    Scan and receive FM radio broadcasts (yeah, we don't exactly know why this was included but it works really well)
    PWM/Buzzer vibrational motor control
    AT command interface with "auto baud" detection
    Sounds delicious, right? So we plated this fine module onto a little breakout with all the extras you need to make your next project shine:
    Onboard LiPoly battery charging circuitry so you can take your project on the go. Use any 500mAh+ LiPoly or LiIon battery and recharge over the MicroUSB when necessary. Two LEDs let you know when its charging and done
    Standard 4-pole TRRS headphone jack. Use any 'Android' or 'iPhone'-compatible headset with mic
    Breakouts for external 8 speaker and electret mic if you don't want to use a headphone
    Level shifting circuitry so you can run it with 2.8V to 5V logic.
    Vibrational motor (buzzer) driver so you can have noiseless notifications
    uFL connections for external antenna
    Indicator LEDs for power and network connectivity
    Standard SIM slides into the back
    On its own, this module can't do anything. It requires a microcontroller to drive it! We suggest and use an Arduino but any 3-5V microcontroller with a UART can send and receive commands over the RX/TX pins.
