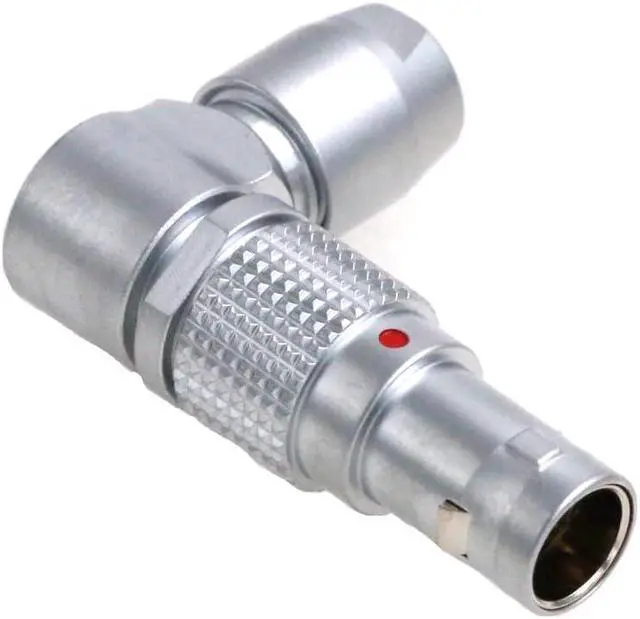

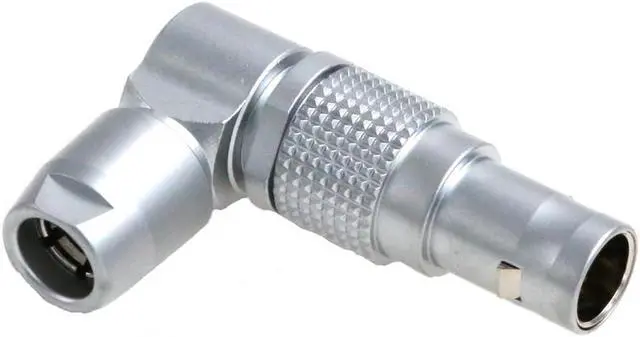

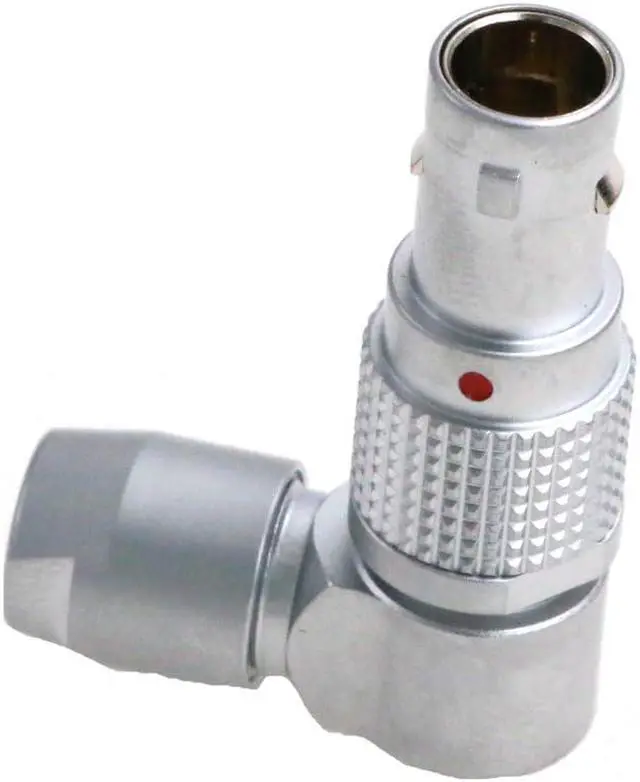

ZBLZGP FSG 0B 309 Adjustable L-Shaped 9 Pin Plug Male Rotatable Power Connector for RED Digital Cinema Komodo 6K V-Raptor Camera

Fully Compatible, Widely Used, Compatible to Replace Well-known Foreign Brands, Stable Transmission, Easy to Use, Push-pull Self-locking, High Precision.
The plating thickness of every product is strictly controlled to guarantee the high quality of the metal and the high precision quality. Save space and install more easily.
Super long life. Tested by industry standards, the plug and socket can be plugged and unplugged for about 5000 times without affecting the mechanical properties of the plug and socket.
Gold-plated copper plug. The inside of the plug is made of gold-plated material, which has strong conductivity, low resistance, corrosion resistance, longer service life and stable conduction.
Making it an ideal choice for test and measurement, instrumentation, medical devices, research and audio/video applications.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

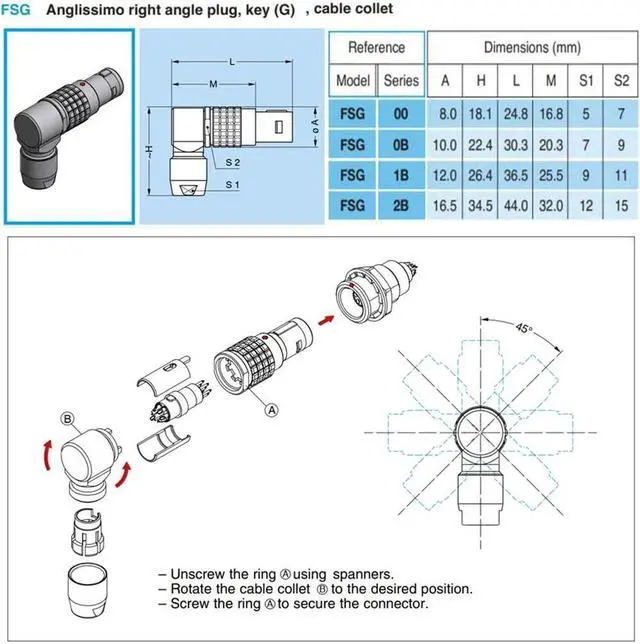

Right Angle plug: FSG. 0B (2 3 4 5 6 7 9 pin available).
2pin3pin:
Rated current (A): 10A
Diameter × contact number: 0, 9x2/0, 9x3
Rated voltage (ac. V. ): 500V (2 pins), 400V (3 pins)
Resistance voltage (A DC V) 1 minute: 1000V (2 pins), 875V (3 pins)
Contact resistance: 6m
Cable specification: <1.5m /16AWG

4pin5pin:
Nominal current (A): 7A
Diameter × number of contact: 0, 7x4/0, 7x5
Rated voltage (ac. V. ): 300V
Resistance voltage (A DC V) 1 minute: 875V (4 pins), 750V (5 pins)
Contact resistance: 7.5 m
Wire specification: <0.785m /18AWG

6pin7pin9pin:
Rated current (A): 5A (6, 7pin), 2A (9pin).
Diameter × contact number: 0.5 x6/ 0.5 x7/ 0.5 x9.
Rated voltage (ac. V. ): 750V(6, 7 pins), 600V (9 pins)
Resistance voltage (A DC V) 1 minute: 300V(6, 7 pins), 200V (9 pins)
Contact resistance: 5 M
Cable specification: < 0.785 m /18AWG
