    BPI-R4 OpenWRT Router WiFi 7 Version - 4GB RAM 8GB ROM 2x10G SFP/4xGbE Port Provide WIFI7 Expand - MediaTek MT7988A, OS Support OpenWRT Debian etc

    Be the first to review this product...
    • The Banana Pi BPI-R4 Router board is a high-performance open-source router development board. with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 design,4GB DDR4 RAM,8GB eMMC,128MB SPI-NAND flash onboard, also have 2x 10Gbe SFP, 4x Gbe network port, with USB3.2 port, M.2 support 4G/5G/NVME SSD.2x mini PCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card).
    • WIFI 7 version shipping List: 1x BPI-R4, 1xWIFI 7 module,1x12V5A PSU, 6xANT, 1x TTL USB debug, 1xFan; The 4G version adds EG25-G 4G modules and 2x 4G ANT. The 5G version adds RM520N-GL 5G modules and 2x 5G ANT.
    • Through expansion, it can support the WIFI6/WIFI7/4G/5G function and also supports the expansion POE function.2x 10Gbe SFP slot (option 1x 10GbE SFP and 1x SOC embedded 2.5GbE PHY. NOTE: Need to modify
    • Quick Start WIKI: docs.banana-pi.org/en/BPI-R4/GettingStarted_BPI-R4; Firmware Download: docs.banana-pi.org/en/BPI-R4/BananaPi_BPI-R4; Tips: If you need to use the WiFi7/4G/5G
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

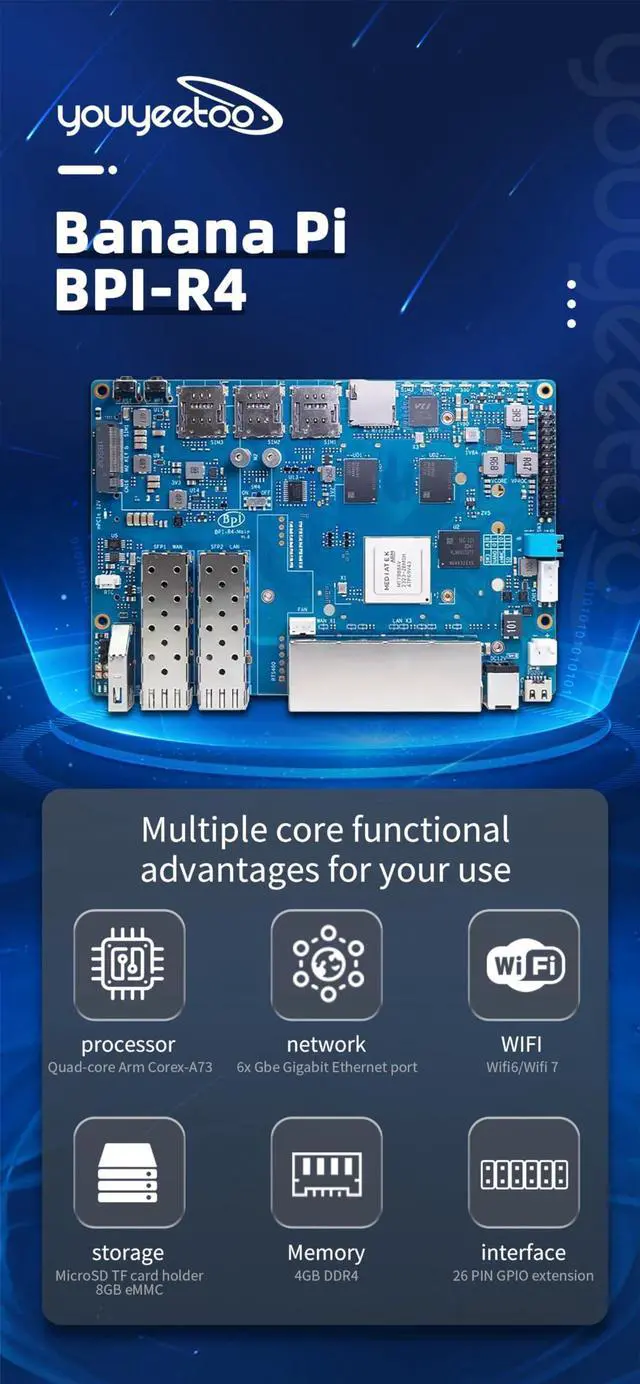

    The Banana Pi BPI-R4 Router board is a high-performance open-source router development board. with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 design, 4GB DDR4 RAM, 8GB eMMC, 128MB SPI-NAND flash onboard, also have 2x 10Gbe SFP, 4x Gbe network port, with USB 3.2 port, M. 2 support 4G/5G/NVME SSD. 2x mini PCIe slots with PCIe 3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card).

    Features MediaTek MT7988A (Filogic 880) 4GB DDR4 8GB eMMC flash 128MB SPI-NAND Flash Micro SD card slot 2x 10Gbe SFP slot (option 1x 10GbE SFP and 1x SOC embedded 2.5G bE PHY.

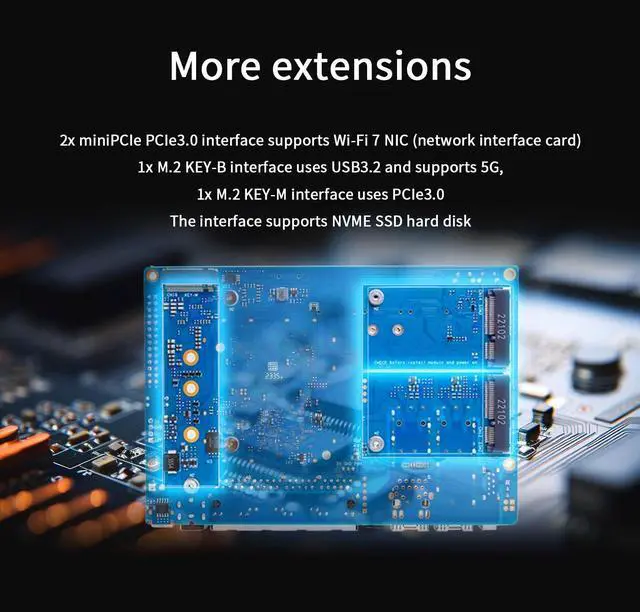

    NOTE: Need to modify hardware) 4x Gbe network port 1x USB 3.2 slot 1x M. 2 KEY-B slot with USB 3.2 /PCIe 3.0 interface for 5G 1x M. 2 KEY-M slot with PCIe 3.0 1lane interface for NVME SSD 2x mini PCIe slots with PCIe 3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card) 26 PIN GPIO Header for expanding application Application direction Internet service Router Wifi 7 Wireless Router 4G/5G Wireless Router Wireless Repeater Home security Gateway Home Automation Nas device Network and communication applications

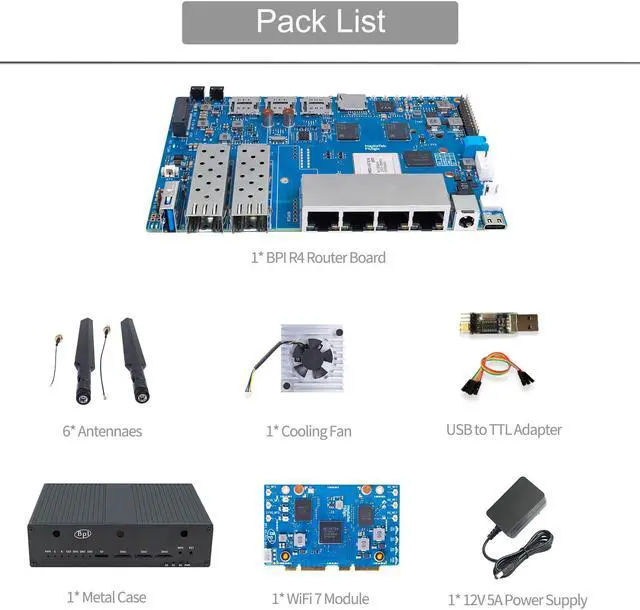

    Shipping List:

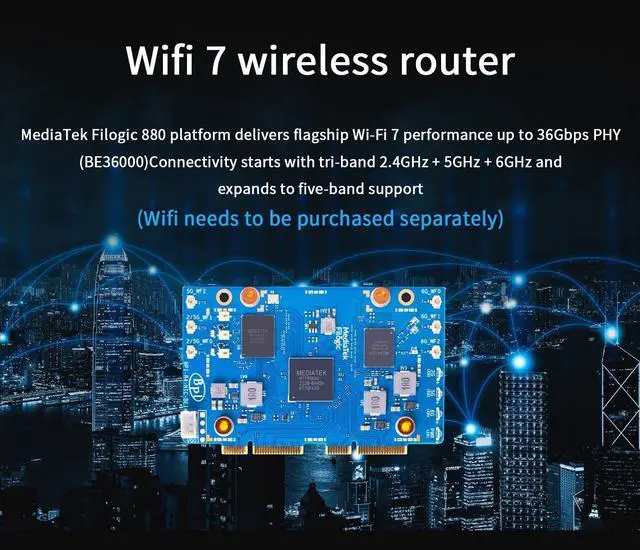

    WIFI 7 version: 1x BPI-R4, 1xWIFI 7 module, 1x12V5A PSU, 6xANT, 1x TTL USB debug, 1xFan; The 4G version adds EG25-G 4G modules and 2x 4G ANT. The 5G version adds RM520N-GL 5G modules and 2x 5G ANT.
    Tips: The WIFI 7 version has only 6 ANT.
    Tech Support: youyeetoo Discord or forum. youyeetoo. com or official forum
