VSDISPLAY 7" 7 inch 1024x600 400nit 50 pins IPS LCD Screen and Controller Board,with Micro USB Power Cable
- 7" TB070-I5024H45C-02 1024X600 IPS LCD Screen: Resolution 1024RGB)×600 Outline Size 164.9× 100×3.5 (H×V×D) Display Area 154.21 × 85.92 (H×V) Brightness 400 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (TM) Viewing Angle 85/85/85/85 (Typ.)(CR10) [Left / Right / Up / Down]
- LCD Board Work for 50P TTL Interface LCD Screen (Video Input: Audio: Earphone)
- Input Power Adapter: 5Vdc More than 2A Mirco-USB Connector. Power Connector: PH2.0 Micro USB. Support 5V 1A Power For PH2.0 Connector.
- Come In Standby Model When Not Input Signal. Standby Model <1W.
- Packing list : 1× LCD Controller Board VS-TY2660H-V812 1× 7inch TB070-I5024H45C-02 1024X600 IPS LCD Screen 1× USB Power Cable 1× Mirco-USB Power Cable 1× Keyboard With Cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

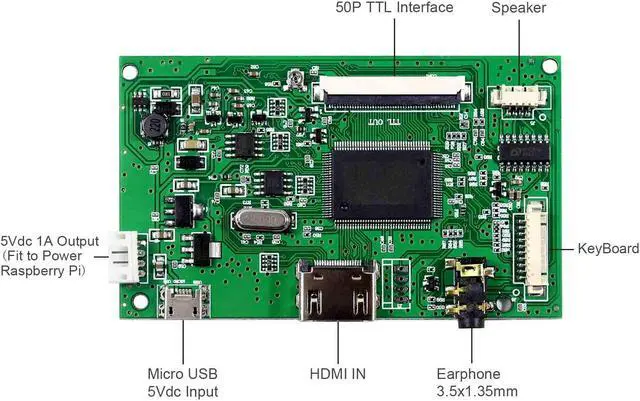

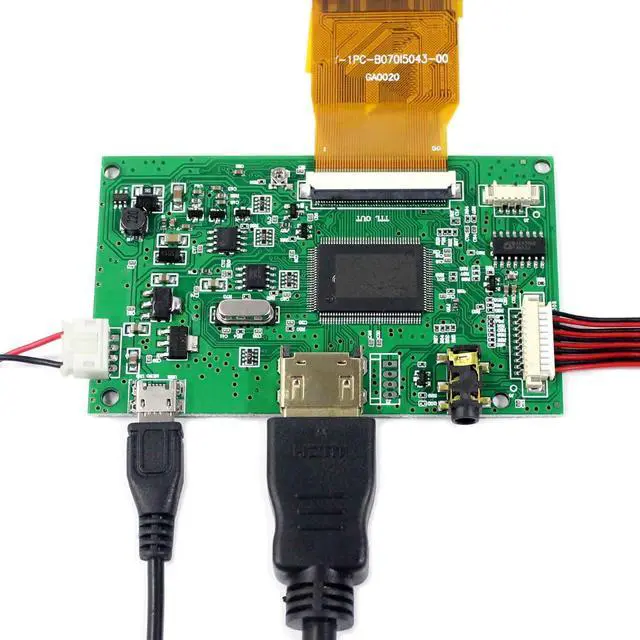

LCD Controller Board:
LCD Board Work for 50P TTL Interface LCD Screen
Power Connector: PH 2.0 Micro USB
Input Power Adapter: 5Vdc More than 2A Mirco-USB Connector
Support 5V 1A Power For Connector
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input:
Audio: Earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 88mm x 53mm x 7mm
7" TB070-I5024H45C-02 1024X600 IPS LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 1024RGB)×600
Outline Size 164.9 × 100× 3.5 (H×V×D)
Display Area 154.21 × 85.92 (H×V)
Brightness 400 cd/m² (Typ. )
Contrast Ratio 800:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit), 50 pins, FPC
Backlight WLED
Input Voltage 3.3V (Typ. )

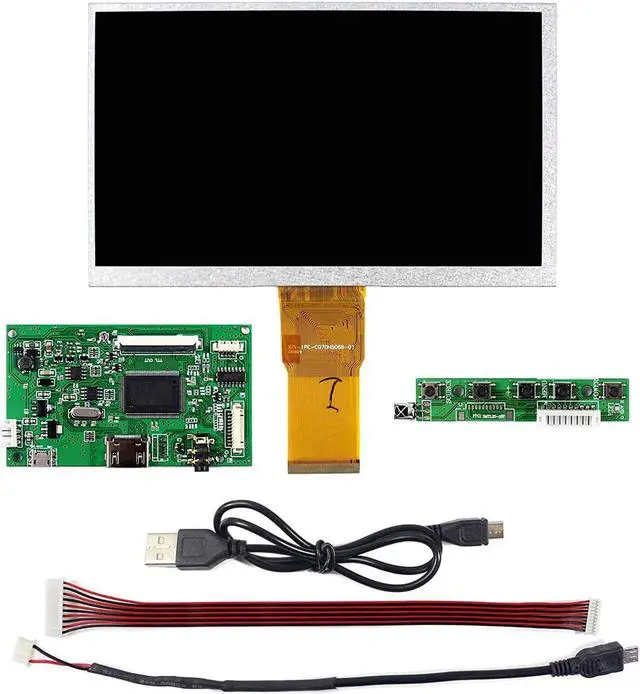

Packing list:
1× LCD Controller Board VS-TY2660H-V812
1× 7inch TB070-I5024H45C-02 1024X600 IPS LCD Screen
1× USB Power Cable
1× Mirco-USB Power Cable
1× Keyboard With Cable
LCD Board Work for 50P TTL Interface LCD Screen
Power Connector: PH 2.0 Micro USB
Input Power Adapter: 5Vdc More than 2A Mirco-USB Connector
Support 5V 1A Power For Connector
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input:
Audio: Earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 88mm x 53mm x 7mm
7" TB070-I5024H45C-02 1024X600 IPS LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 1024RGB)×600
Outline Size 164.9 × 100× 3.5 (H×V×D)
Display Area 154.21 × 85.92 (H×V)
Brightness 400 cd/m² (Typ. )
Contrast Ratio 800:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit), 50 pins, FPC
Backlight WLED
Input Voltage 3.3V (Typ. )
Packing list:
1× LCD Controller Board VS-TY2660H-V812
1× 7inch TB070-I5024H45C-02 1024X600 IPS LCD Screen
1× USB Power Cable
1× Mirco-USB Power Cable
1× Keyboard With Cable
