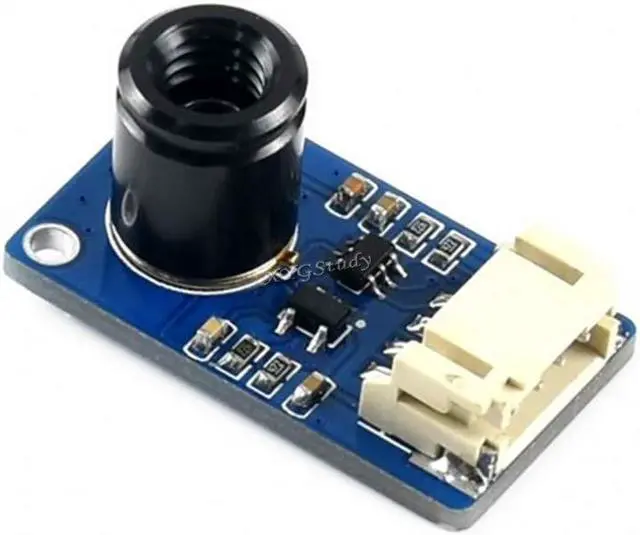

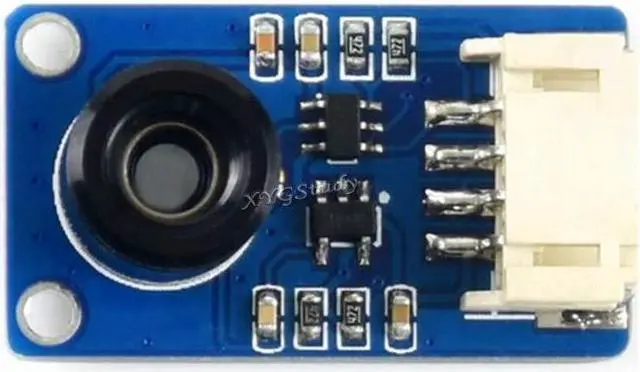

MLX90640 IR Array Thermal Imaging Camera 32×24 Pixels 55° Field of View I2C Interface 3.3V/5V Compatible with Raspberry Pi (ESP32) STM32 @XYGStudy (MLX90640-D55 Thermal Camera)
- Part Number: MLX90640-D55 Thermal Camera
- This is a 32×24 pixels, 55° field of view, IR array thermal imaging camera, communicating via I2C interface. It is compatible with 3.3V/5V operating voltage, supports host platforms such as Raspberry Pi/Arduino(ESP32)/STM32, etc.
- By utilizing the MLX90640 far-infrared thermal sensor array, this module can detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images. Due to the small form factor, it can be easily integrated into miscellaneous industrial or intelligent control applications.
- Adopts MLX90640 far-infrared thermal sensor array, 32×24 pixels, Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate)
- Noise Equivalent Temperature Difference (NETD) 0.1K RMS @1Hz refresh rate, Onboard voltage translator, compatible with 3.3V/5V operating voltage, Comes with development resources and manual (exa
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Operating voltage: 3.3V /5V
Operating current: 23mA
Communication interface: I2C (address 0x33)
Field of view (Horizontal×Vertical): 55°×35° (narrow angle FOV, suit for long range measuring)
Operating temperature: -4085
Target temperature: -40300
Resolution: ±1
Refresh rate: 0.5H z~64Hz (programmable)

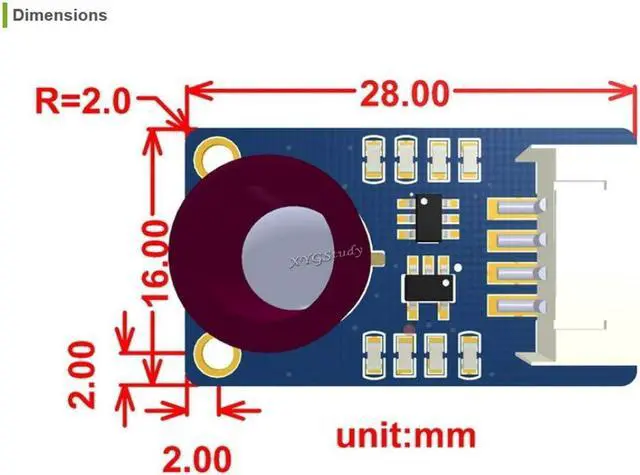

Dimensions: 28mm×16 mm
Mounting hole size: 2.0 mm
Applications
High precision non-contact temperature measurements
IR thermal imaging devices, IR thermometers
Smart home, intelligent building, intelligent lighting
Industrial temperature control, security monitoring, intrude/movement detection
Pinouts
In the case of working with MCU:
VCC 3.3V / 5V
GND GND
SDA MCU. I2C data line
SCL MCU. I2C clock line
Package Contains (Weight: 0.006 kg)

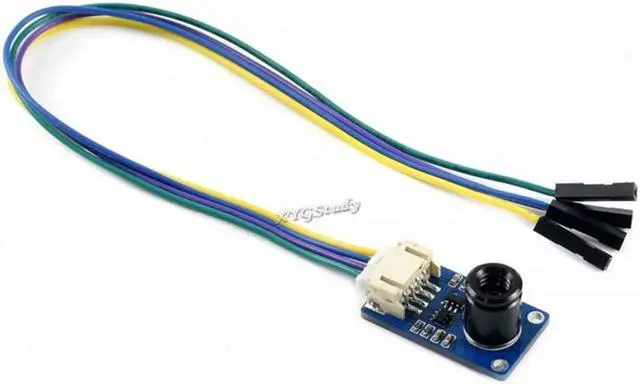

MLX90640-D55 Thermal Camera x1
PH 2.0 4PIN wire x1
For more resources you may need, pls contact me via Amazon message, i will send you then via attachment.
