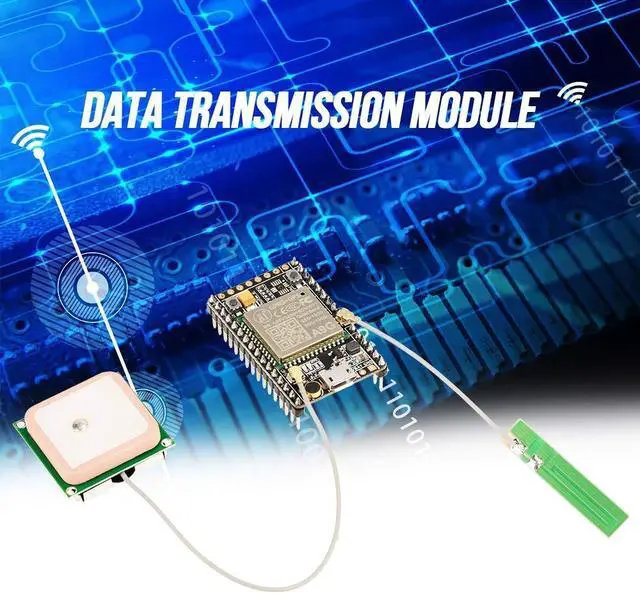

Module A9G Board, A9G Development Board GSM/GPRS and GPS/BDS Module Wireless Data Transmission and Positioning Board

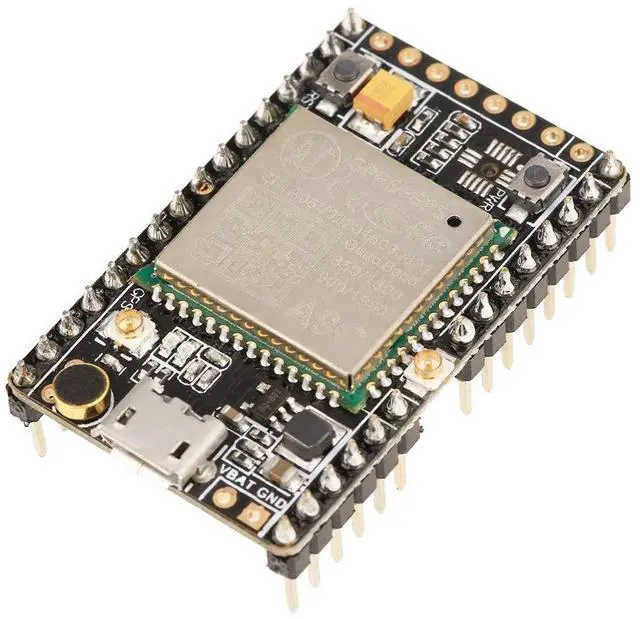

- [A9G Development Board] - The A9G development board is a versatile development board based on A9G GPRS / GSM + GPS / BDS module that can be used to validate the basic communication functions and peripheral functions of the A9G module.
- [Multifunction] - A9G development board with the basic phone / SMS, GPRS networking communications, GPS / BDS dual-mode positioning capabilities.

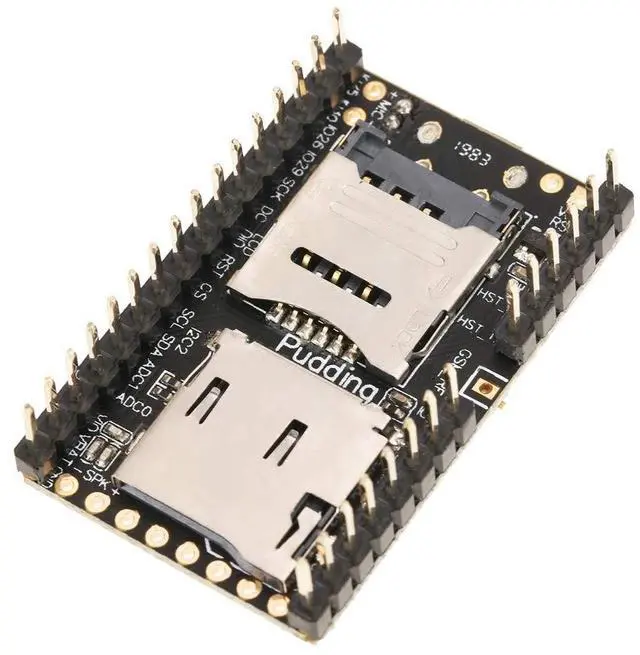

- [Specification] - A9G development board contains a lithium battery charging management, microphone, speaker interface, USB communication interface, multiple user keys / led, TF card slot, accelerometer, I2C2 interface, ADC interface.
- [External Interface] - A9G development board camera expansion board, an external 30W / 200W camera.A9G development board coin machine expansion board, can be external traditional coin machine.
- [After-Sale Service] -- Good day. every effort to provide customers with satisfactory service.If you have ANY questions, please email us and BELIEVE us, we will reply you soon.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: Based on the above features, A9G can be used for a variety of peripheral prototyping verification: Use GPRS + GPS, as well as acceleration sensors for vehicle immobilizer. Remote monitoring intercom using GSM and microphone / speakers Smart watch with 1.54 "capacitive touch screen using GPRS / GSM + GPS Use of GPRS / GSM + GPS, heart rate oximeter sensor, 1.54 -inch capacitive touch screen monitor the elderlyUse GPRS + TF + camera extension board remote monitoring camera Wechat payment slot machine scheme using slot machine Using onboard features, custom device based on
Lua programmingWiring: Use USB to TTL serial cable, VUSB to 5V; GND to GND; AT_TX to RX; AT_RX to TX Use USB cable to power the board, GND to GND; AT_TX to RX; AT_RX to TX Use lithium battery to power the board, VBAT to ( 3.3 v- 4.2 )V; GND to GND; AT_TX to RX; AT_RX to TX (Press power_key button for 2S)
Power on: 1. The A9G development board can be powered by lithium battery or USB. 2. The module will run automatically after 1~2S power on, and the serial port will output the information automatically. No operation is required for the whole process from power on to the development board working normally. 3. To reset, please press the Rst_Key button. 4. The module enters AT instruction mode by default.
Type: A9G
Development BoardWeight: 22gPackage

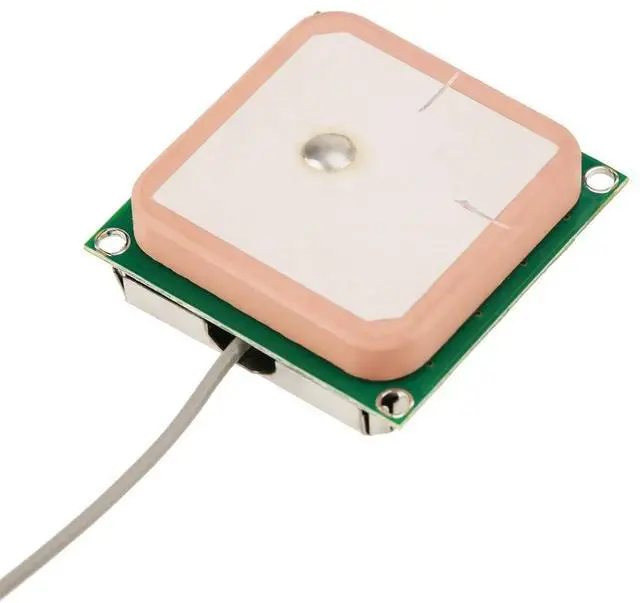

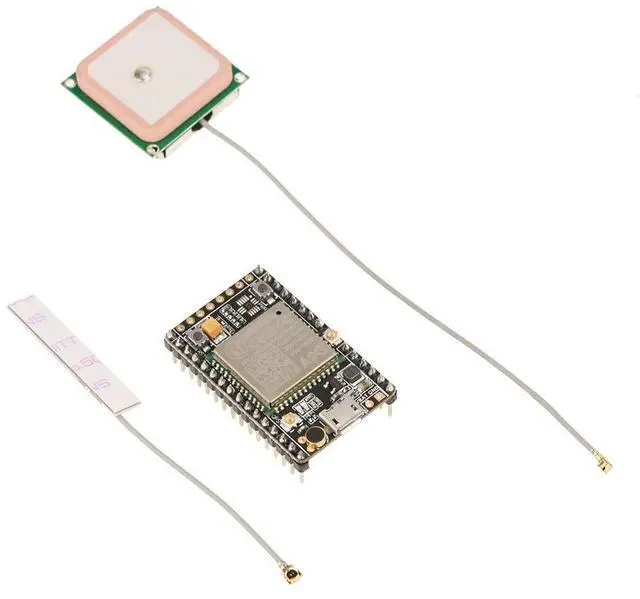

included: 1 x A9 Development Board 1 x GSM Antenna 1 x GPRS Antenna
Lua programmingWiring: Use USB to TTL serial cable, VUSB to 5V; GND to GND; AT_TX to RX; AT_RX to TX Use USB cable to power the board, GND to GND; AT_TX to RX; AT_RX to TX Use lithium battery to power the board, VBAT to ( 3.3 v- 4.2 )V; GND to GND; AT_TX to RX; AT_RX to TX (Press power_key button for 2S)
Power on: 1. The A9G development board can be powered by lithium battery or USB. 2. The module will run automatically after 1~2S power on, and the serial port will output the information automatically. No operation is required for the whole process from power on to the development board working normally. 3. To reset, please press the Rst_Key button. 4. The module enters AT instruction mode by default.
Specifications
:Type: A9G
Development BoardWeight: 22gPackage
included: 1 x A9 Development Board 1 x GSM Antenna 1 x GPRS Antenna
