Pico Plus RV1103 Linux Micro Development Board with Pre-Soldered Header, Integrate ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, with Ethernet Port, Support GPIO UART SPI I2C USB CSI Camera Interfaces
- Pico Plus RV1103 Linux Micro Development Board with Pre-Soldered Header, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, With Ethernet Port. Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
- Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
- Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
- Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
- Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture c
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

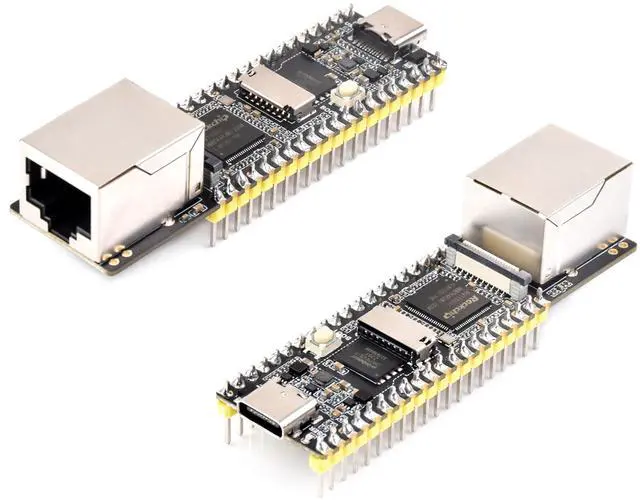

Pico Plus with Pre-Soldered Header is a cost-effective Linux micro development board, based on the Rockchip RV1103 chip to provide a simple and efficient development platform for the developers. Supports a variety of interfaces including MIPI CSl, RGB LCD, GPIO, UART, SPI, 12C, USB, etc, which is convenient for developing and debugging quickly.
SpecificationsProcessor: Cortex A7@ 1.2GH z +
RISC-VNPU: 0.5TOPS, supports int4, int8
and int16ISP: Input 4M @30fps (Max)
Memory: 64MB
DDR2USB: USB 2.0
Host/DeviceCamera: MIPI
CSI 2-laneGPIO: 25
GPIO pinsEthernet port: 10/100M Ethernet controller and embedded PHY
Default Storage: SPI NAND FLASH (128MB) FeaturesHighly integrated and powerful performance, Integrates CPU, NPU, ISP and other processorsSingle-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4Built-in self-developed third-generation ISP 3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc. Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage spaceBuilt-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second"Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidthsIntegrated with built-in POR, audio codec and MAC PHY
Package ContentPico Plus with Pre-Soldered Headerx1
SpecificationsProcessor: Cortex A7@ 1.2GH z +
RISC-VNPU: 0.5TOPS, supports int4, int8
and int16ISP: Input 4M @30fps (Max)
Memory: 64MB
DDR2USB: USB 2.0
Host/DeviceCamera: MIPI
CSI 2-laneGPIO: 25
GPIO pinsEthernet port: 10/100M Ethernet controller and embedded PHY
Default Storage: SPI NAND FLASH (128MB) FeaturesHighly integrated and powerful performance, Integrates CPU, NPU, ISP and other processorsSingle-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4Built-in self-developed third-generation ISP 3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc. Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage spaceBuilt-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second"Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidthsIntegrated with built-in POR, audio codec and MAC PHY
Package ContentPico Plus with Pre-Soldered Headerx1
