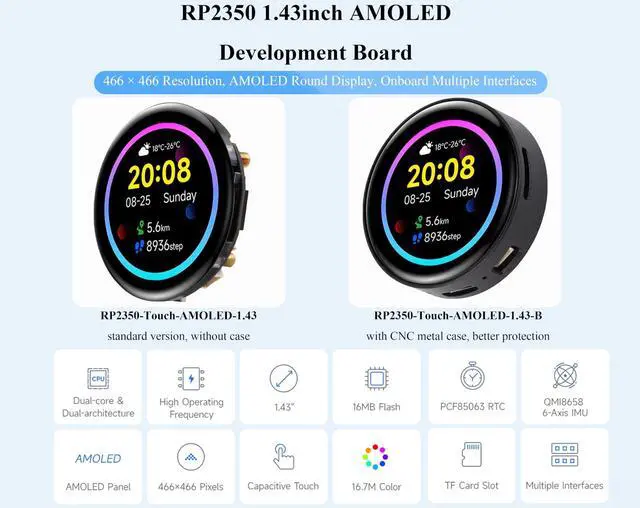

RP2350 1.43inch AMOLED Touch Display Development Board, 466x466, SPI Interface Round Display, Onboard Accelerometer and Gyroscope Sensor, USB, UART, I2C and GPIO, etc.

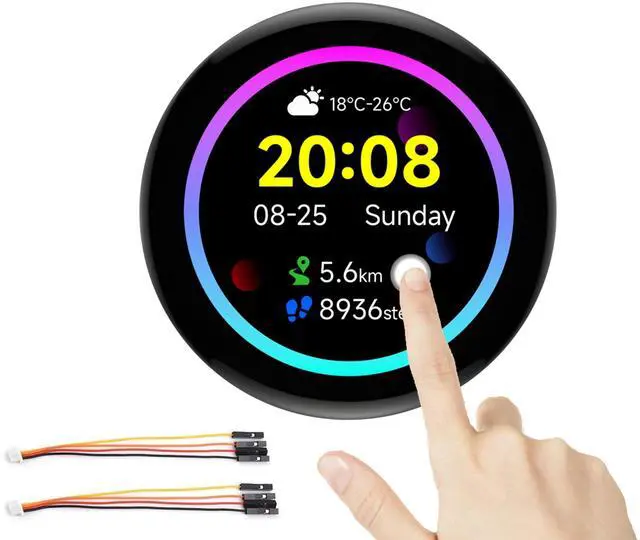

It adopts RP2350 chip with built-in high-capacity Flash memory, dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz. 520KB of SRAM, and 16MB onboard Flash memory. ^^ Onboard 1.43 inch AMOLED display, SPI interface, 466 x 466 resolution, 178 wide viewing angle, 16.7M color, capable of smoothly running GUI applications such as LVGL. Compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image.

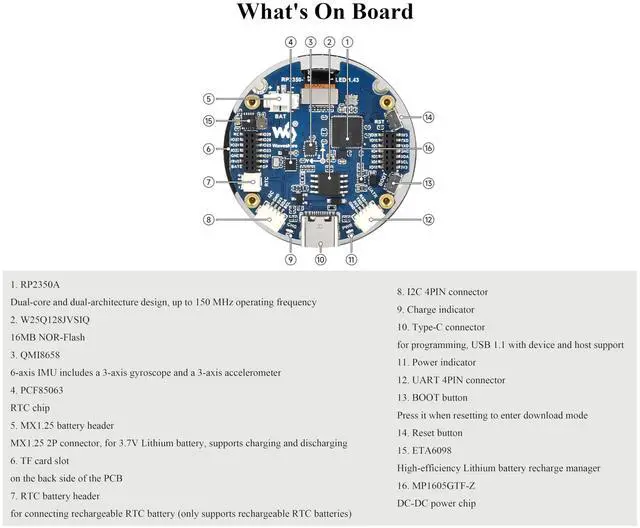

^^ Onboard rich peripheral resources such as R-T-C chip, QMI8658 6-axis IMU, TF card slot, Lithium ba^^tte^^ry header, etc., and reserved USB, UART, I2C and GPIO pin headers, offering strong expandability. It is suitable for the quick development of the RP2350 HMI applications. ^^ Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 R-T-C chip with reserved SH 1.0 ba^^tte^^ry header (supports charging) for R-T-C function requirement. Onboard 3.7V MX 1.25 Lithium ba^^tte^^ry recharge/discharge header.

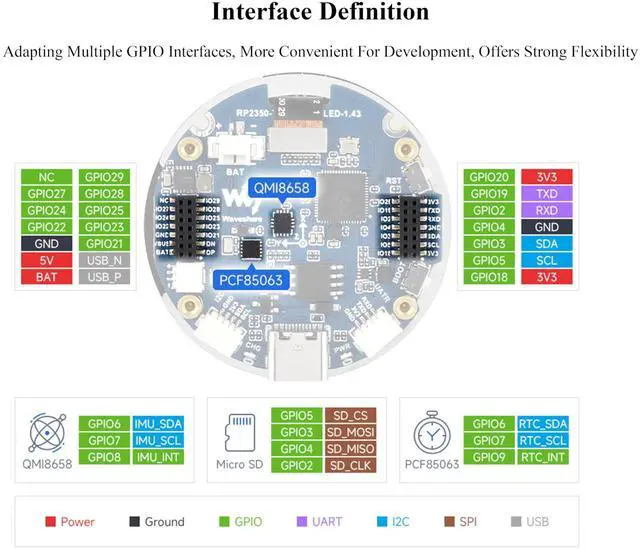

^^ Onboard RST and BOOT side buttons. Onboard TF card slot for external storage of pictures or files. Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use. Onboard UART and I2C SH 1.0 4PIN connector, reserved 2 14PIN 1.27 mm pitch GPIO headers. ^^ Comes with Online Tutorial Usage Guide and Online Development Resource, Please
check: n9. cl/dlco8
