ANMBEST 5PCS Panel Mounting Shielded CAT6A RJ45 Waterproof Connector Cat5/5e/6/6E 8P8C Ethernet LAN Cable Coupler Double Head Adapter with Waterproof/Dust Cap
- Shielded RJ45 female to female field installable coupler. Provides feed-through Cat5/5e/6 ethernet connectivity for data and PoE in industrial environments.
- NO ATTENUATION: The socket contacts are nickel-plated phosphor bronze alloy plugs, and the socket does not need to break or interrupt any connection, so there is no signal attenuation.

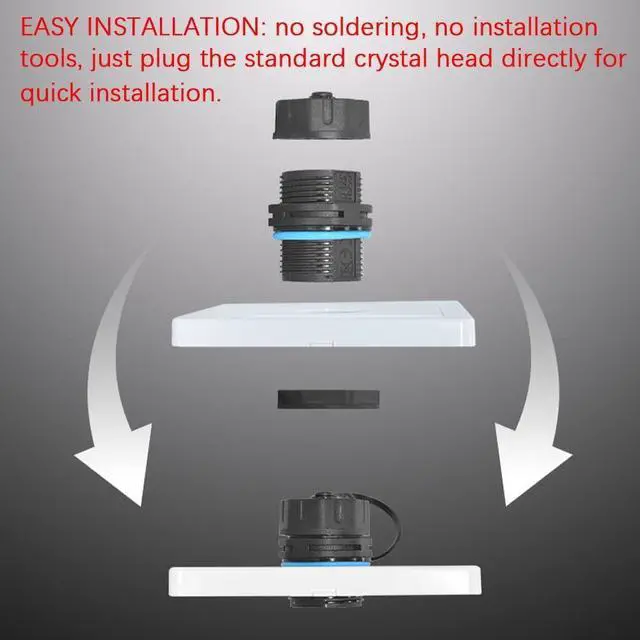

- EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 female to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.

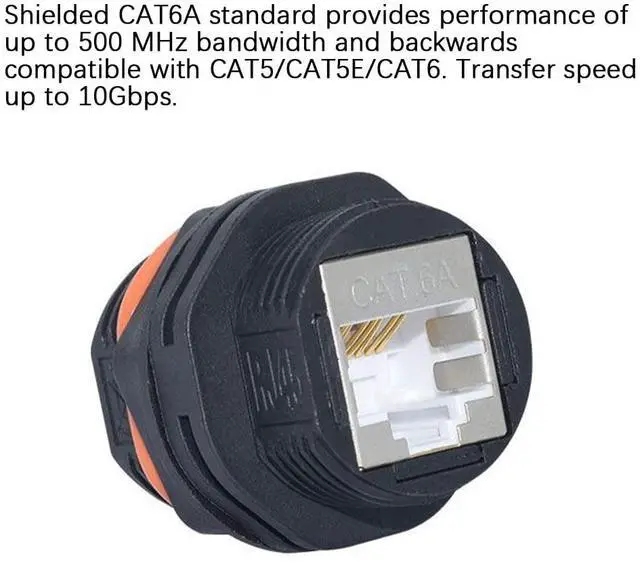

- CAT6A standard provides performance of up to 500 MHz bandwidth and backwards compatible with CAT5/CAT5E/CAT6. Transfer speed up to 10Gbps.
- Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Shielded Industrial Panel Mount is a Female/Female Couple. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference.

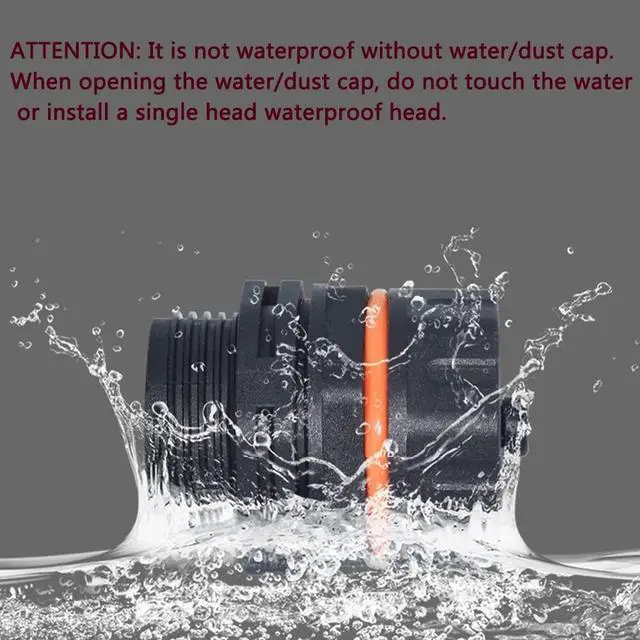

PROTECTION: IP68With
dust/waterproof capThread:
M23Color: Black, BlueNumber
of cores: 8 PIN
Connection type: RJ45Flame
retardant rating: UL94V-0Connection

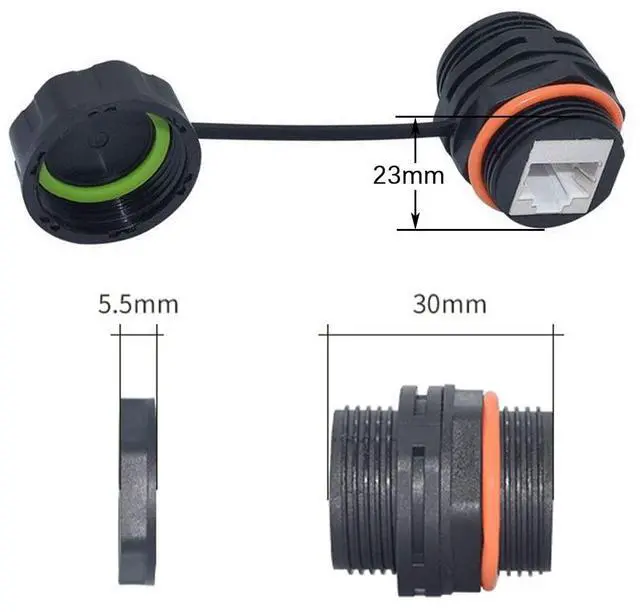

method: plug type + thread pressure lockMounting panel thickness: 0.5 ~7mm (not included)
Connector transmission classification: CAT5, CAT5E, CAT6, CAT6ATransmission
speed range:
Bandwidth: 500Mhz;
Data rate: 10GbpsElectrical
parameters: Rated
current: 1.5AR
ated voltage: 125VAC, 75VDC
Insulation resistance: 500MCompressive
strength: AC1000V 50HZ or 60HZ for 1 minuteContact resistance:
10mMaterial:
Shell: PA66 nylon plus fiber (UL94V-0)Socket contact pin: 0.5 mm diameter phosphor copper wireContact pin gold plating thickness: 6u
inchWaterproof rubber ring: siliconeEnvironmental
conditions: Working
temperature: -40120CelsiusStorage
temperature: -2585CelsiusAtmospheric
pressure: 86106kPaRelative
humidity: 90%
RHPackage Included: 5x M23 CAT6A Shielded Waterproof RJ45 Connector
Specifications
: INGRESSPROTECTION: IP68With
dust/waterproof capThread:
M23Color: Black, BlueNumber
of cores: 8 PIN
Connection type: RJ45Flame
retardant rating: UL94V-0Connection
method: plug type + thread pressure lockMounting panel thickness: 0.5 ~7mm (not included)
Connector transmission classification: CAT5, CAT5E, CAT6, CAT6ATransmission
speed range:
Bandwidth: 500Mhz;
Data rate: 10GbpsElectrical
parameters: Rated
current: 1.5AR
ated voltage: 125VAC, 75VDC
Insulation resistance: 500MCompressive
strength: AC1000V 50HZ or 60HZ for 1 minuteContact resistance:
10mMaterial:
Shell: PA66 nylon plus fiber (UL94V-0)Socket contact pin: 0.5 mm diameter phosphor copper wireContact pin gold plating thickness: 6u
inchWaterproof rubber ring: siliconeEnvironmental
conditions: Working
temperature: -40120CelsiusStorage
temperature: -2585CelsiusAtmospheric
pressure: 86106kPaRelative
humidity: 90%
RHPackage Included: 5x M23 CAT6A Shielded Waterproof RJ45 Connector
