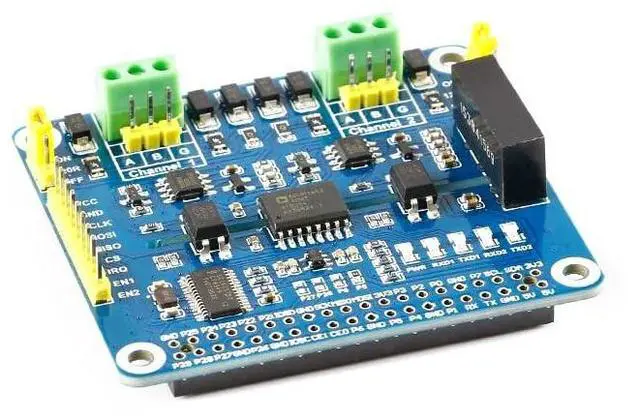

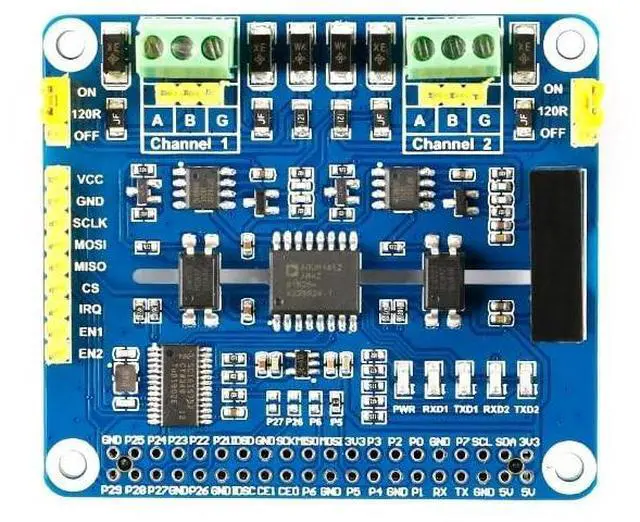

JESSINIE 2-Channel Isolated RS485 Expansion HAT Board Module SC16IS752 SP3485 Dual Chip Convert SPI to RS485 Data Rate up to 921600bps Embed Multi Protection Circuits for Raspberry Pi 4
- Tandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

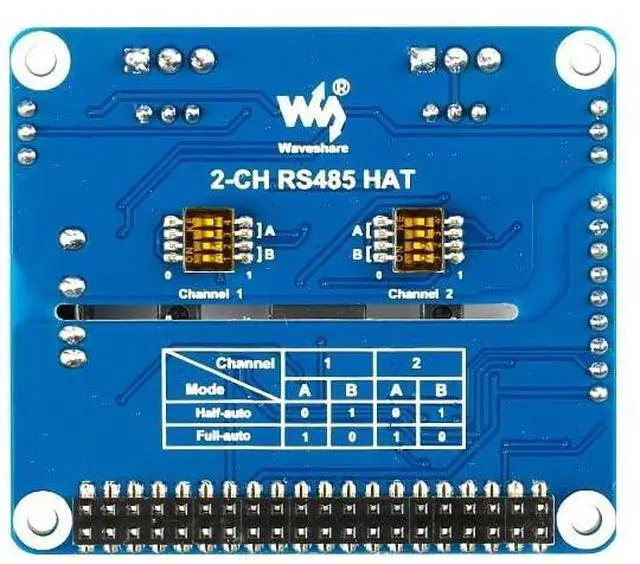

- Adopts SC16IS752+SP3485 dual chip combination, converts SPI to RS485, data rate up to 921600bps.Allows transceiving data manually or automatically, configured by DIP switch
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
- Onboard auto-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance.Onboard LEDs for indicating the power and transceiver status
- Breakout SPI control pins, for connecting with host control boards like Arduinocomes with development resources and manual (examples in C and Python)
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Serial port expansion chip: SC16IS752Working
voltage: 3.3V
/5VRS485 transceiver: SP3485Product

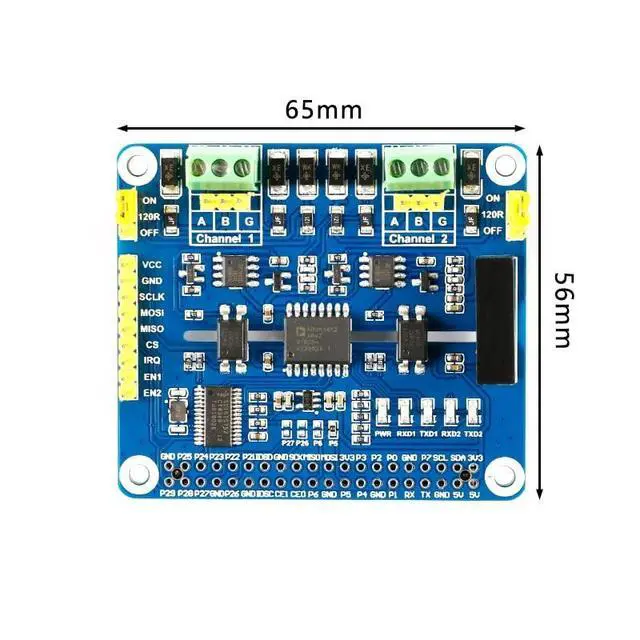

size: 65
X 56.5 mmCommunication interface: SPI
Through hole diameter: 3.0
mmCommunication speed: 300~921600 bps
voltage: 3.3V
/5VRS485 transceiver: SP3485Product
size: 65
X 56.5 mmCommunication interface: SPI
Through hole diameter: 3.0
mmCommunication speed: 300~921600 bps
