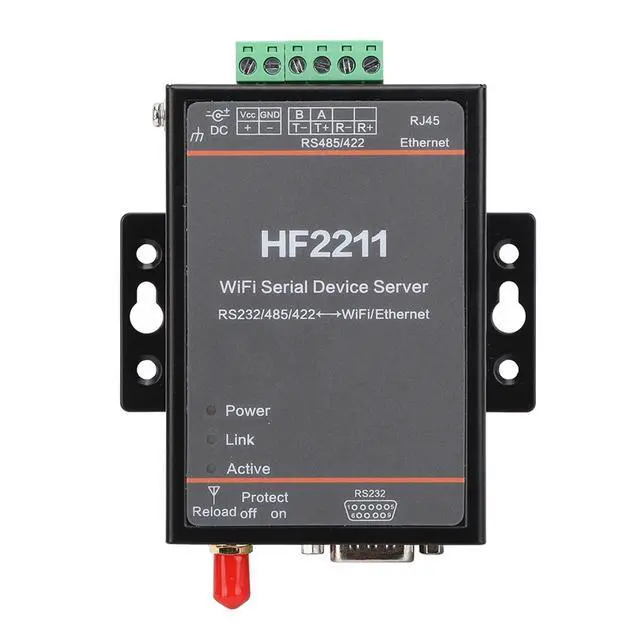

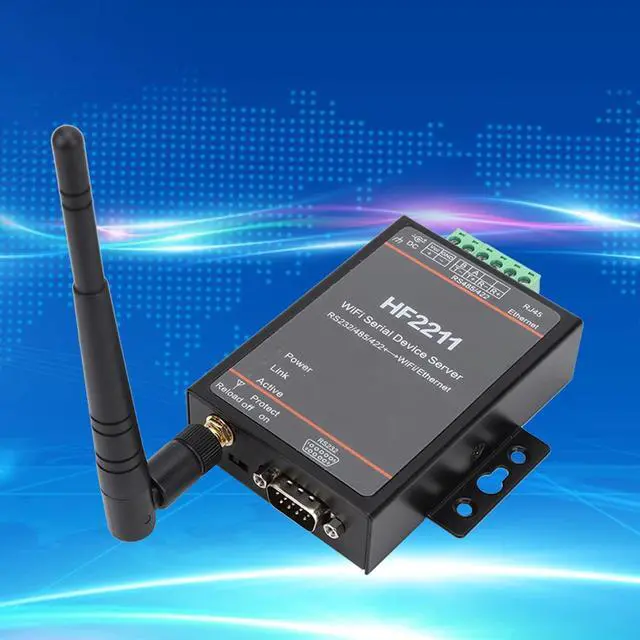

HF2211 Serial Network Server Serial Server Ethernet DTU Network Communication 5 to 36VDC with Device Servers
- Serial Interface Parameters: Number Of Serial Ports: 1 (RS232 / 485/422).Interface Standard: RS232: DB9 pin type.RS485 / RS422: 5.08mm terminal block.Baud Rate: 600-230400bps.Data Bits: 8.Stop Bits: 1, 2.Parity: None, Even, Odd, Space, Mark.
- OPERATING SYSTEM: This Serial Network Server is Using MCU (8MB for ) and 4MB Flash, based on eCos operating system. Passed FCC_CE_RoHS_SRRC_REACH certification.
- VIRTUAL SERIAL PORT SOFTWARE: For XP / for Vista / 7/8/10 (32bit 64bit), for Server 2003/2008/2012. Configuration Method: WEB page, CLI command, for file import, Telnet configuration, IOTService software
- Wi-Fi Interface Parameters: Standard: 802.11 b / g / n Network Mode: for STA / for AP / for STA + AP Network Protocol: for TCP / for UDP, etc. Maximum Number Of Connections: Maximum 15 STA
- Support RS232 / RS422 / RS485 to Wi-Fi / Ethernet data transmission, the maximum serial port speed is 230400 bps. Support for TCP / for IP / for Telnet / for Modbus protocol. Support working S
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Serial Interface Parameters: Number Of
Serial Ports: 1 (RS232 / 485/422).
Interface Standard:
RS232: DB9 pin type. RS485 / RS 422: 5. 08mm terminal block.
Baud Rate: 600-230400bps.
Data Bits: 8.
Stop Bits: 1, 2.
Parity: None, Even, Odd, Space, Mark.
^^ OPERATING SYSTEM: This Serial Network Server is Using MCU (8MB for ) and 4MB Flash, based on eCos operating system. Passed FCC_CE_RoHS_SRRC_REACH certification. ^^
VIRTUAL SERIAL PORT SOFTWARE: For XP / for Vista / 7/8/10 (32bit 64bit), for Server 2003/2008/2012.
Configuration Method: WEB page, CLI command, for file import, Telnet configuration, IOT
Service software ^^
Wi-Fi Interface Parameters:
Standard: 802.11 b / g / n
Network Mode: for STA / for AP / for STA + AP
Network Protocol: for TCP / for UDP, etc.
Maximum Number Of Connections: Maximum 15 STA ^^ Support RS232 / RS422 / RS485 to Wi-Fi / Ethernet data transmission, the maximum serial port speed is 230400 bps. Support for TCP / for IP / for Telnet / for Modbus protocol. Support working STA / AP / AP + STA. ^^ ^^ ^^ ^^ ^^
Serial Ports: 1 (RS232 / 485/422).
Interface Standard:
RS232: DB9 pin type. RS485 / RS 422: 5. 08mm terminal block.
Baud Rate: 600-230400bps.
Data Bits: 8.
Stop Bits: 1, 2.
Parity: None, Even, Odd, Space, Mark.
^^ OPERATING SYSTEM: This Serial Network Server is Using MCU (8MB for ) and 4MB Flash, based on eCos operating system. Passed FCC_CE_RoHS_SRRC_REACH certification. ^^
VIRTUAL SERIAL PORT SOFTWARE: For XP / for Vista / 7/8/10 (32bit 64bit), for Server 2003/2008/2012.
Configuration Method: WEB page, CLI command, for file import, Telnet configuration, IOT
Service software ^^
Wi-Fi Interface Parameters:
Standard: 802.11 b / g / n
Network Mode: for STA / for AP / for STA + AP
Network Protocol: for TCP / for UDP, etc.
Maximum Number Of Connections: Maximum 15 STA ^^ Support RS232 / RS422 / RS485 to Wi-Fi / Ethernet data transmission, the maximum serial port speed is 230400 bps. Support for TCP / for IP / for Telnet / for Modbus protocol. Support working STA / AP / AP + STA. ^^ ^^ ^^ ^^ ^^
