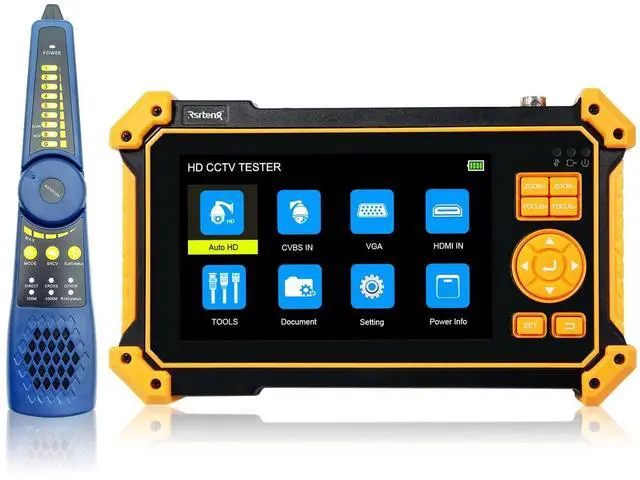

Rsrteng HD-3100C CCTV Tester HD Coaxial 4K 8MP TVI/CVI/AHD/CVBS Camera Tester with Cable Tracer 5 inch TFT-LCD Screen Monitor 5 in 1Support Support RS485 Audio HD VGA DC12V Output PTZ Control

4-in-1 Multifunction CCTV coaxial camera test. Support Analog CVBS camera test, NTSC/PAL (Auto adapt); 8MP TVI test, 3840 x 2160P 12.5 /15 FPS; 8MP AHD test, 3840 x 2160P 15 FPS; 8MP CVI test, 3840 x 2160P 12.5 /15FPS.

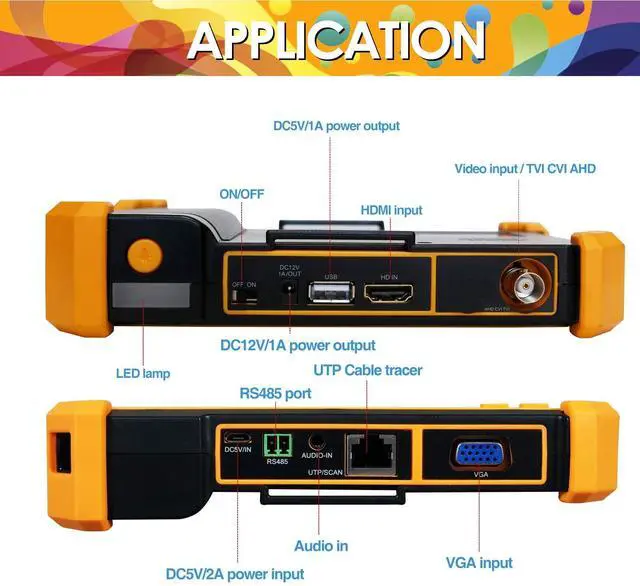

NOTE: THIS TESTER DOESNT SUPPORT IP NETWORK CAMERA TESTER ^^ 5 inch TFT-LCD screen, 800*480 resolution; Audio in, support record and save the audio LED lamp VGA input, up to 1920 x 1200 60fps HD Input, up to 4K 30fps, support snapshot, video record & playback DC12V/1A power output, supply temporarily power for the camera 5V 1A power output, support reading USB disk ^^ Auto HD app, auto recognize HD coax camera type and resolution, support video record & playback Coaxial PTZ (UTC control) & call OSD menu Support RS485 With Cable tracer, can quickly find out the target cable(BNC cable, network cable and telephone cable) from the mess cables. Support AC Voltage Detector. ^^ Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug Media player, 4K video files and MKV/MP4 media files play 1 channel audio signal input, test whether sound normal ^^
Working Temperature: -10~50C, Humidity 30%-90%.
Dimension/Weight: 184x110x41mm( 7.24 x 4.33 x 1.61 inch)/ 0.4 kg( 0.88 lbs)
