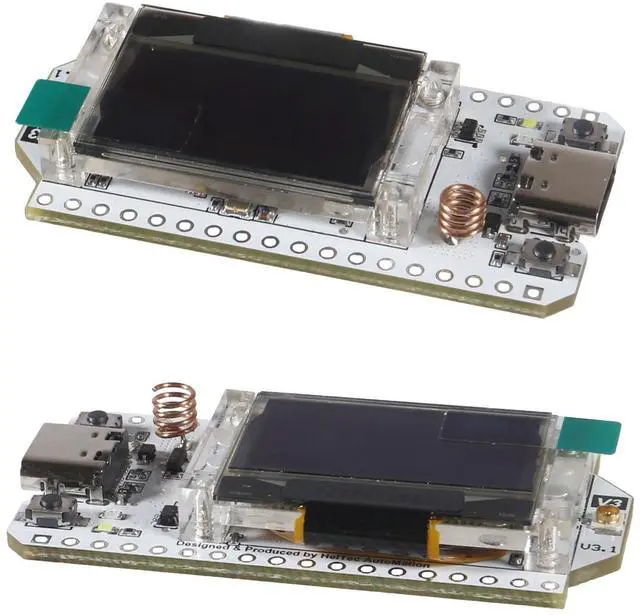

ESP32 LoRa V3 LoRa32 OLED Development Board 0.96inch OLED Display CP2102 915MHz Antenna Transceiver and Protective Case for Lora Board Compatible with Arduino ESP8266 NodeMCU IOT Smart Home
- ESP32 on-board display unit is a 0.96inch 128 * 64 dot-matrix OLED display that can be used to display debugging information, battery power, and other information
- Type C type USB interface, equipped with complete voltage regulator, ESD protection, short circuit, circuit protection, RF shielding, and other protection measures.
- On-board SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switch).
- Integrated CP2102 USB turn serial port chip, convenient program download, debugging information printing.
- It is the best choice for smart city, farm, home, industrial control, housing security, wireless meter reading, and Internet of Things developers.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The LoRa chipset: SX1262USB
to serial chip:
CP2102Frequency: 433~510MHz; 863~928
MHzMaximum emission power: 21 and 1 dBmMaximum reception sensitivity: -139
dBmWi-Fi: 802.11 b / g / n with a maximum of 150MbpsBluetooth: Bluetooth5Bluetooth
LE: Bluetooth
gridBattery: 3.7V lithium battery power supply and chargingPackage include: 1 x LoRa 32 V3 node development board1 x Connector antenna2 x Pin1 x SH 1.25 -2 cable1 x Case for LoRa 32 V3 node development board
to serial chip:
CP2102Frequency: 433~510MHz; 863~928
MHzMaximum emission power: 21 and 1 dBmMaximum reception sensitivity: -139
dBmWi-Fi: 802.11 b / g / n with a maximum of 150MbpsBluetooth: Bluetooth5Bluetooth
LE: Bluetooth
gridBattery: 3.7V lithium battery power supply and chargingPackage include: 1 x LoRa 32 V3 node development board1 x Connector antenna2 x Pin1 x SH 1.25 -2 cable1 x Case for LoRa 32 V3 node development board
