Nanopi R5C Wireless Mini WiFi Router OpenWRT with Rockchip RK3568B2 Soc 0.8T NPU 4GB LPDDR4X RAM 64GB eMMC Onboard Dual PCIe 2.5Gbps Ethernet Ports M.2 BT WiFi Module Slot Support Debian Ubuntu

[WIRELESS MOBILE MINI TRAVEL ROUTER] Nanopi R5C Mini Wifi Router Adopt Rockchip RK3568B2 Soc, with 4GB LPDDR4x RAM and 64GB eMMC;
CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GH z;
GPU: Mali-G52 1-Core-2EE, supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full
Profile;

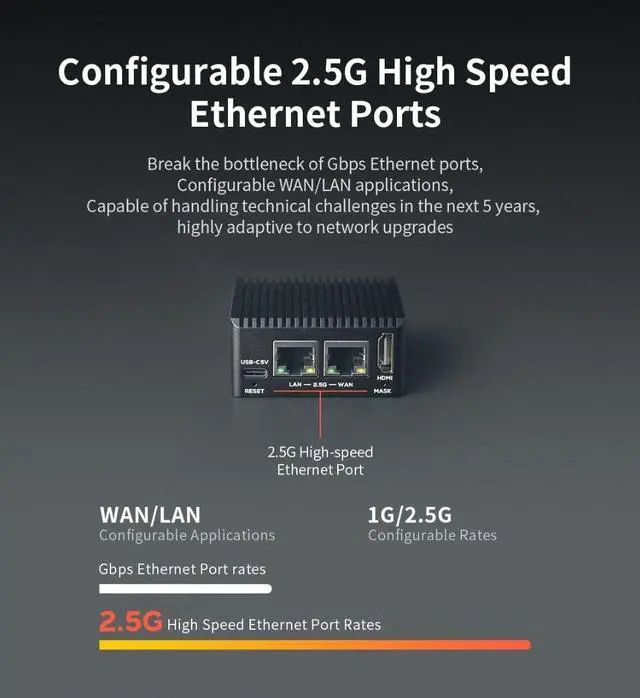

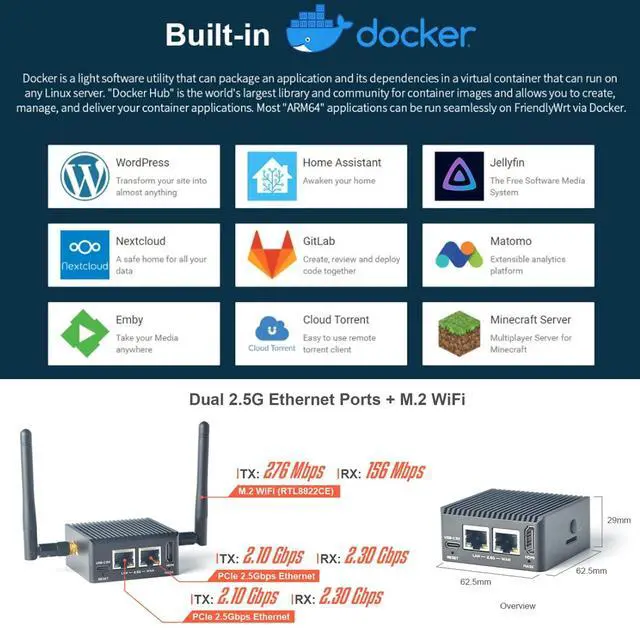

NPU: Support 0.8T. ^^ [OPEN SOURCE and Programmable] It can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home gateways, and more. It can also be used as a command line mode for geeks ^^ [Dual PCIe 2.5G GBPS ETHERNET PORTS] The NanoPi R5C Mini Router has dual PCIe 2.5G bps Ethernet ports; M. 2 WiFi (RTL8822CE) support 802.11 a/b/g/n/ac protocol, TX rate is 276Mbps, RX rate is 156Mbps. ^^ [LARGER EXTENSIBILITY & Interface] NanoPi R5C Router supports M. 2 WiFi and Bluetooth Module, with M.
2 Key E: PCIe 2.1 x1, USB 2.0 x1
PortsmicroSD: support UHS-I;
USB: two USB 3.2 Gen 1 Type-A ports;
Debug: one Debug UART, 3 Pin 2.54 mm header, 3.3V level; 1 x HDMI output interface;

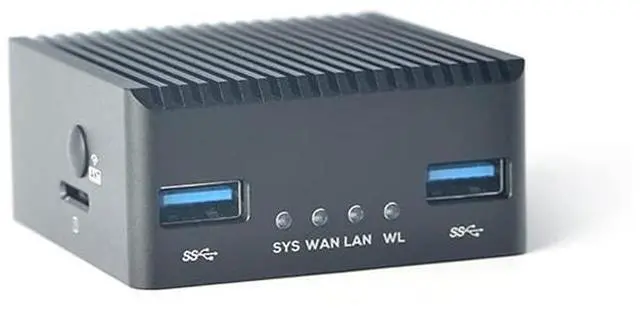

LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, WL) ^^ [OS/Software] NanoPi R5C Portable Router Running Android, FriendlyWrt 22.03 (64-bit), Debian Buster Desktop (64-bit), FriendlyCore Focal Lite(Base on Ubuntu 20.04 ), Buildroot;
Kernel version: Linux- 5.10 -LTS/U-boot- 2017.09. ^^ [4K Video Decoders and Encoders] NanoPi R5C mini portable travel Router support 4KP60 H. 265/H. 264/VP9 video decoder, 1080P60 H. 264/H. 265 video encoder.
^^ [USER MANUAL] WiKi: "wiki. friendlyelec. com/wiki/index. php/NanoPi_R5C". Pls feel free to email us to get the Datasheet or any questions of this module after you purchased it. How to email us? Click ''forum. youyeetoo. com/'' and ask a question.
