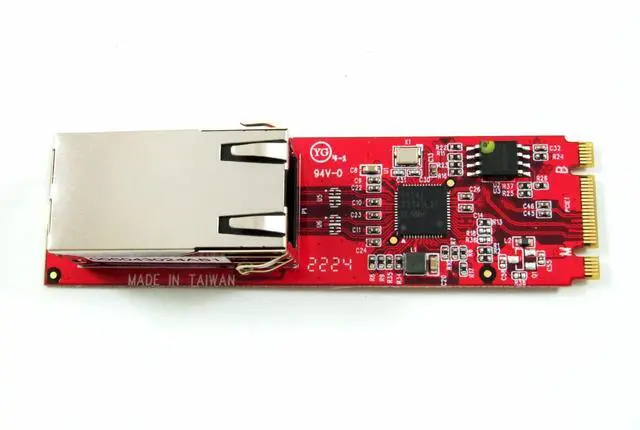

Main image of Ableconn M2NW108BM 2.5GbE M.2 2280 B+M Key PCIe Ethernet Module with RJ-45 Port for Embedded Systems & Mini PCs

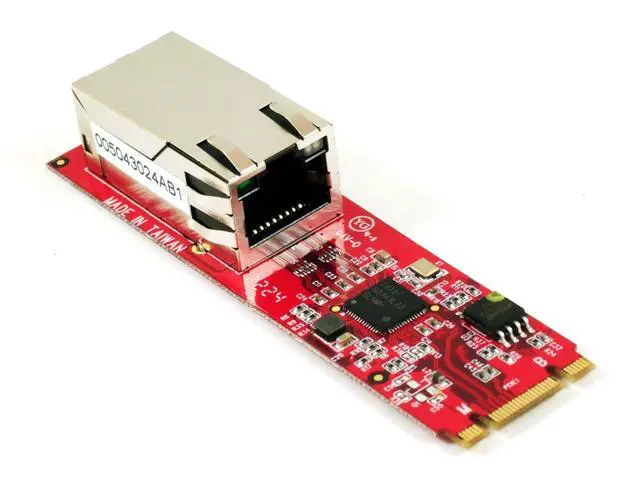

Alt view image 2 of 5 - Ableconn M2NW108BM 2.5GbE M.2 2280 B+M Key PCIe Ethernet Module with RJ-45 Port for Embedded Systems & Mini PCs

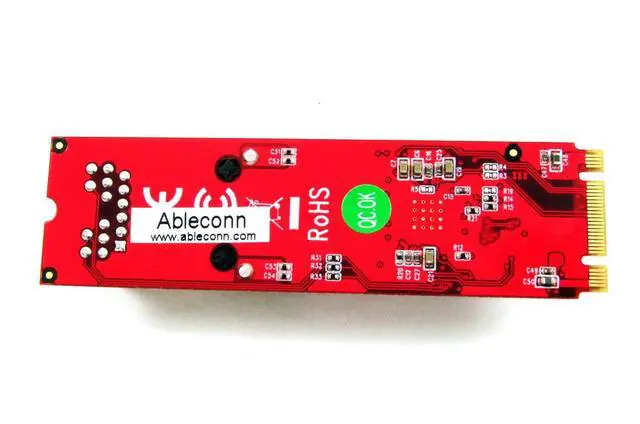

Alt view image 3 of 5 - Ableconn M2NW108BM 2.5GbE M.2 2280 B+M Key PCIe Ethernet Module with RJ-45 Port for Embedded Systems & Mini PCs

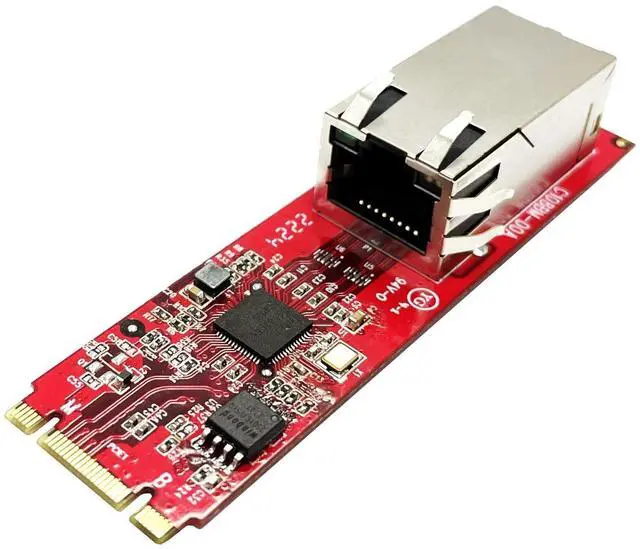

Alt view image 4 of 5 - Ableconn M2NW108BM 2.5GbE M.2 2280 B+M Key PCIe Ethernet Module with RJ-45 Port for Embedded Systems & Mini PCs

Alt view image 5 of 5 - Ableconn M2NW108BM 2.5GbE M.2 2280 B+M Key PCIe Ethernet Module with RJ-45 Port for Embedded Systems & Mini PCs

Shop All Adafruit Products | Visit Aptly Tech Store

Ableconn M2NW108BM 2.5GbE M.2 2280 B+M Key PCIe Ethernet Module with RJ-45 Port for Embedded Systems & Mini PCs

Add high-speed 2.5GbE wired networking to your system through an M.2 2280 B+M key slot, ideal for industrial PCs, embedded systems, mini PCs, and compact computing platforms.
M.2 NGFF 2280-D5-B-M form factor with dual B/M key notch (75-pin), PCIe x1 interface, and onboard RJ-45 Ethernet port for flexible integration.
Built with an I225 2.5GbE controller chip for low-latency and efficient network performance, supporting 2500/1000/100/10 Mbps BASE-T standards.
Broad OS support: native drivers in macOS 10.16.5+, Linux Kernel 5.8+ (RHEL 8.1/8.4, SLES 12, FreeBSD), and downloadable driver packages for Windows.
Supports jumbo frames up to 9K bytes, TSO offload, 4 Tx / 4 Rx queues, automatic polarity correction, PXE boot, ECC packet buffering, and IEEE 802.3u auto-negotiation.
Fully RoHS compliant. Made in Taiwan.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Add high-speed 2.5G bE wired networking to your system through an M. 2 2280 B+M key slot, ideal for industrial PCs, embedded systems, mini PCs, and compact computing platforms. ^^ M. 2 NGFF 2280-D5-B-M form factor with dual B/M key notch (75-pin), PCIe x1 interface, and onboard RJ-45 Ethernet port for flexible integration. ^^ Built with an I225 2.5G bE controller chip for low-latency and efficient network performance, supporting 2500/1000/100/10 Mbps BASE-T standards.
^^ Broad OS support: native drivers in macOS 10.16. 5+, Linux Kernel 5.8 + (RHEL 8.1 / 8.4, SLES 12, FreeBSD), and downloadable driver packages for Windows. ^^ Supports jumbo frames up to 9K bytes, TSO offload, 4 Tx / 4 Rx queues, automatic polarity correction, PXE boot, ECC packet buffering, and IEEE 802.3 u auto-negotiation. ^^ Fully RoHS compliant. Made in Taiwan.
