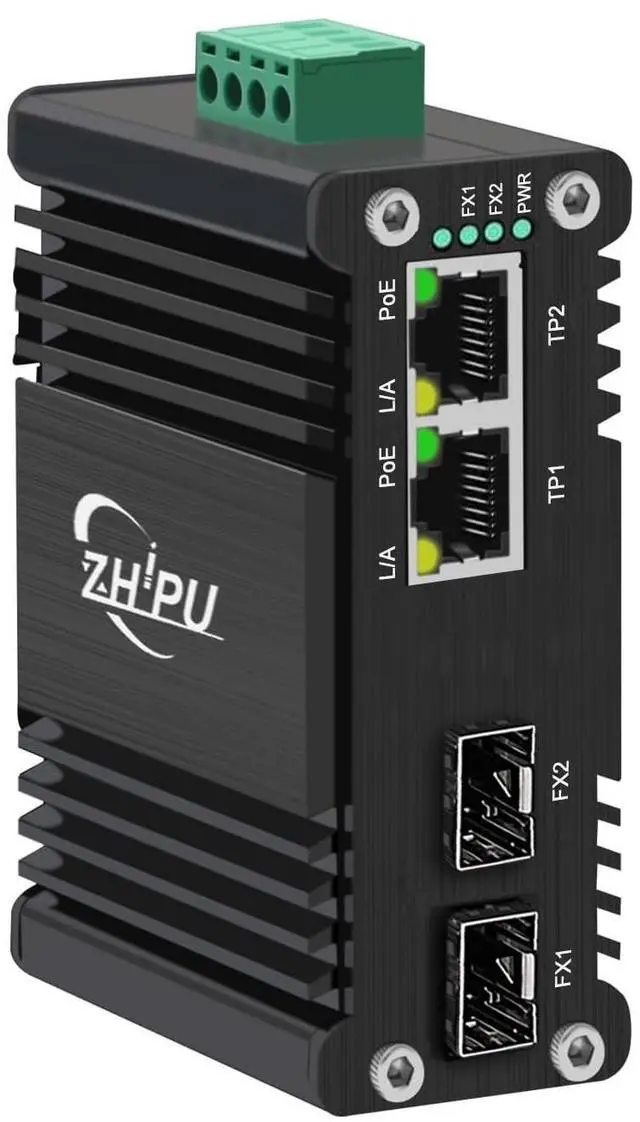

Yjntoximc Mini Industrial 2 Ports Gigabit PoE Switch with DC1248V Redundant Power Input, 12V PoE Switch with 2 SFP, IEEE802.3af/at @60W, Compact PoE Power for VoIP Systems/Solar Power/RV Truck

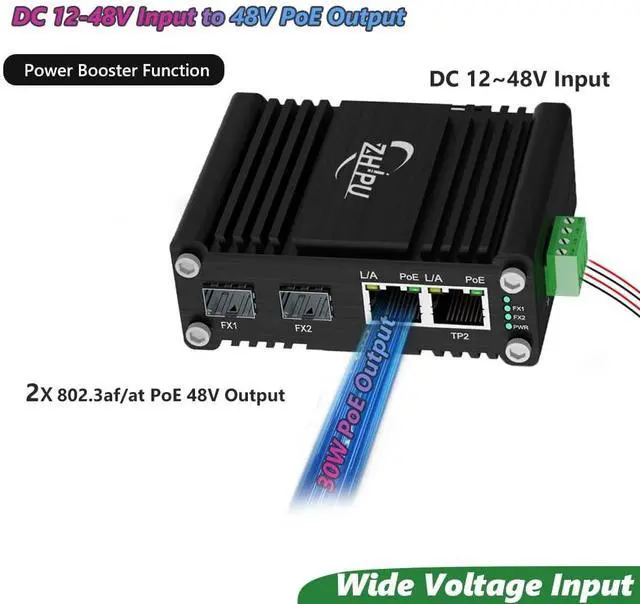

- Support DC1248V input and IEEE802.3af/at PoE output with built-in voltage booster. All PoE ports are compliant to IEEE802.3af/at. Total PoE budget 60W.
- Providing 2x 10/100/1000Base-T Ethernet PoE ports and 2x 1000Base-X SFP slot (SFP module not included).
- Compact IP40 rugged metal enclosure; Wide working temperature -40C to 80C (-40F to 176F); Support DIN-Rail installation.
- Utilizing hardware IEEE802.3af/at PoE chipset, it automatically powers up PD device with 4 steps (PD Detection -> PoE Classification -> Start Up -> Power ON). It allocates appropriate power to IEEE802.af/at PoE devices, and no power for non-PoE devices. It ensures high safety for PoE and Non-PoE devices.

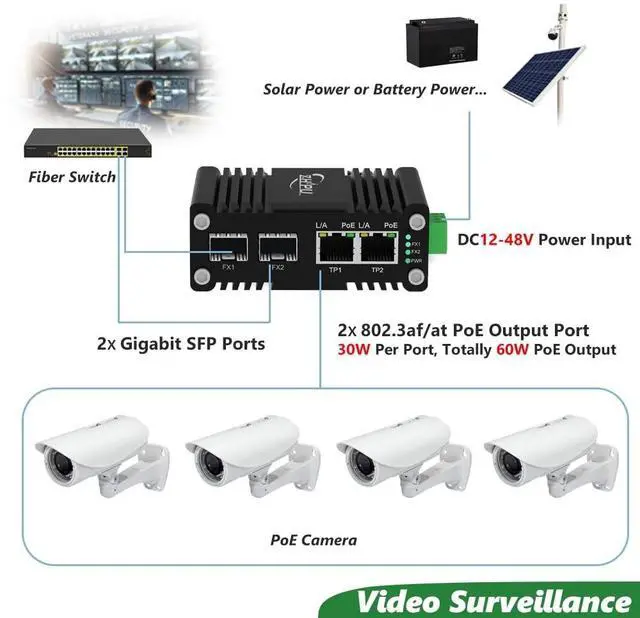

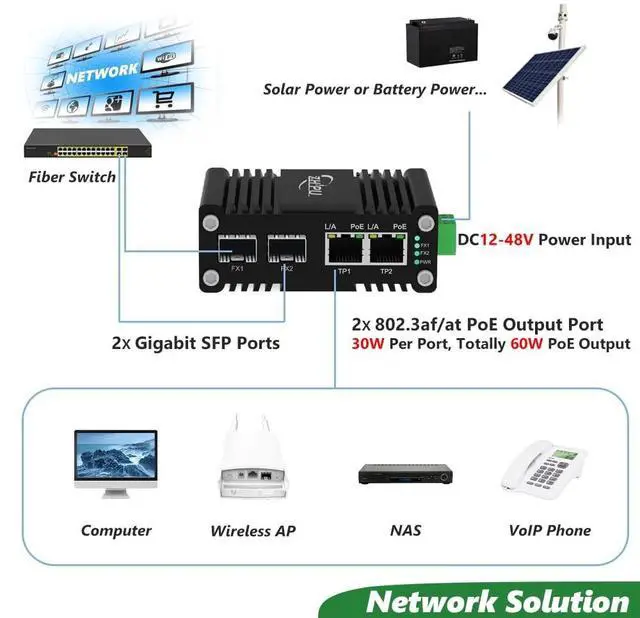

- Standard PoE supply in solar power system (DC12V/DC18V/DC36V input), RV/Vehicle/Truck/Bus (DC12V input), VoIP/Access control systems (DC24V input).
- Support 2 channel DC1248V redundant power inputs and auto failover, ensure high reliability networking system.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview: The Industrial Gigabit 2-Port PoE Switch has 2 Gigabit SFP port and 2 RJ45 port supports IEEE 802.3 af/at PoE supply. Each port supports gigabit transfer speeds, ensuring lightning-fast data transmission. With the industrial IP40 Al case, it can thrive in extreme environments between -40F and 176F, making it ideal for outdoor installations or industrial applications.
Features: 1. 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function2. 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection) 3. Supports IEEE 802.3 af PoE ( 15.4W ) or IEEE 802.3 at PoE+ (30W) 4. Supports Link Fault Pass Through5. Supports Full/Half-duplex, Auto-negotiation6. 9K Bytes Jumbo Frame7. Redundant Power Supply8. Power booster function with wide range 12~48VDC Power Input9. Supports DIN-Rail10. Environmentally hardened -40C to 80C (-40F to 176F) operating temperature11. Industry standard design, dustproof and close design IP40, rugged
high-strength metal caseSpecification: 1)
Connector: 2xRJ45, 2xSFP2)
Optical Port: 2 x SFP 1000Base-X or 100Base-FX (auto detection) 3)
SFP modules: single/multi-mode fiber, 1or 2 core4)
PoE Standard: IEEE 802.3 af/at5) Max.
Power per Port: 30W Max per port6) Packet
Buffer Memory: 1
Mbit7) Packet Length: 9K bytes8)
MAC Address Table: 2K9)
Forward & Filtering Rate: 14, 880pps (10Mbps), 148, 800pps (100Mbps), 1, 488, 000pps (1000Mbps) 10)
Input Power: 12~48VDC, 4-pin terminal block11)
Output Power: 48VDC12)

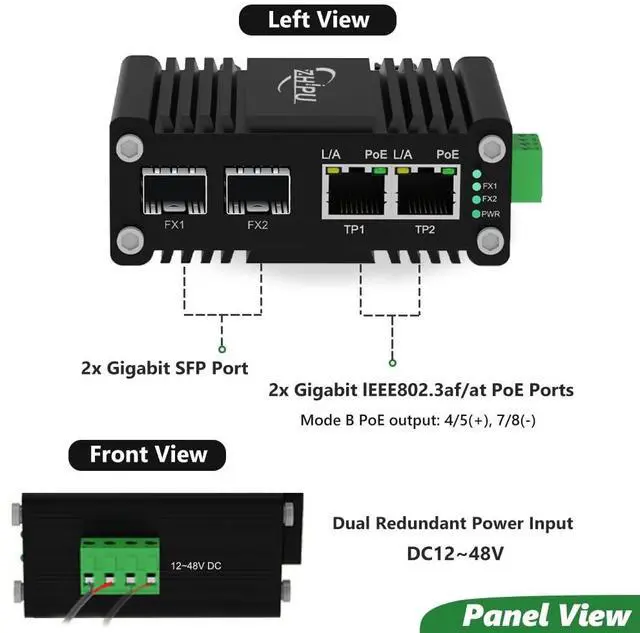

Power PIN Assignment: 4, 5(+); 7, 8(-) (Alternative B Mode) 13)
Certification: CE, FCC14)
Mounting Options: DIN-Rail15)
Operating Temperature: -40C to 75C (-40F to 167F)16)
Storage Temperature: -40C to 85C (-40F to 185F)17)
Dimensions (WxDxH): 5.45 x 4.17 x 1.61 inch18)
Weight: 0.25
kgPackages: 1* 2-port PoE Ethernet switch1* 4-pin terminal block1* User Manual
Features: 1. 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function2. 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection) 3. Supports IEEE 802.3 af PoE ( 15.4W ) or IEEE 802.3 at PoE+ (30W) 4. Supports Link Fault Pass Through5. Supports Full/Half-duplex, Auto-negotiation6. 9K Bytes Jumbo Frame7. Redundant Power Supply8. Power booster function with wide range 12~48VDC Power Input9. Supports DIN-Rail10. Environmentally hardened -40C to 80C (-40F to 176F) operating temperature11. Industry standard design, dustproof and close design IP40, rugged
high-strength metal caseSpecification: 1)
Connector: 2xRJ45, 2xSFP2)
Optical Port: 2 x SFP 1000Base-X or 100Base-FX (auto detection) 3)
SFP modules: single/multi-mode fiber, 1or 2 core4)
PoE Standard: IEEE 802.3 af/at5) Max.
Power per Port: 30W Max per port6) Packet
Buffer Memory: 1
Mbit7) Packet Length: 9K bytes8)
MAC Address Table: 2K9)
Forward & Filtering Rate: 14, 880pps (10Mbps), 148, 800pps (100Mbps), 1, 488, 000pps (1000Mbps) 10)
Input Power: 12~48VDC, 4-pin terminal block11)
Output Power: 48VDC12)
Power PIN Assignment: 4, 5(+); 7, 8(-) (Alternative B Mode) 13)
Certification: CE, FCC14)
Mounting Options: DIN-Rail15)
Operating Temperature: -40C to 75C (-40F to 167F)16)
Storage Temperature: -40C to 85C (-40F to 185F)17)
Dimensions (WxDxH): 5.45 x 4.17 x 1.61 inch18)
Weight: 0.25
kgPackages: 1* 2-port PoE Ethernet switch1* 4-pin terminal block1* User Manual
