    LVDs Controller Board 40pin for 17.3" 14" 1600x900 LP173WD1 N173FGE-L23 B173RW01 LTN173KT01 LTN173KT02 B140RTN02 N140O6 B140RW02 N140FGE-L31 WLED LCD Screen

    Be the first to review this product...
    • LCD Controller Board Work for 1600x900 WLED 40 Pin LVDs LCD Screen,Video input: VGA DVI Audio,Audio Output: Speaker Connector,Pls use in insulated environment.
    • Input Power Supply12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare powe adapter by yourself.
    • Compatible Screen models 14" B140RTN01.0 B140RW01 V.0 N140FGE-L31 LP140WD2 B140RTN02 N140O6 B140RW02 N140FGE-L31 17.3" LP173WD1 B173RW01 LTN173KT01-A01 N173FGE-L21 N17306-L02 LTN173KT02 LTN173KT03-301 CLAA173UA01A
    • Compatible partsSpeaker: 8ohm 2W 4Pin PH2.0 connection; Case:Controller Board Case Acrylic Material White Case For M.NT68676 Protect Case

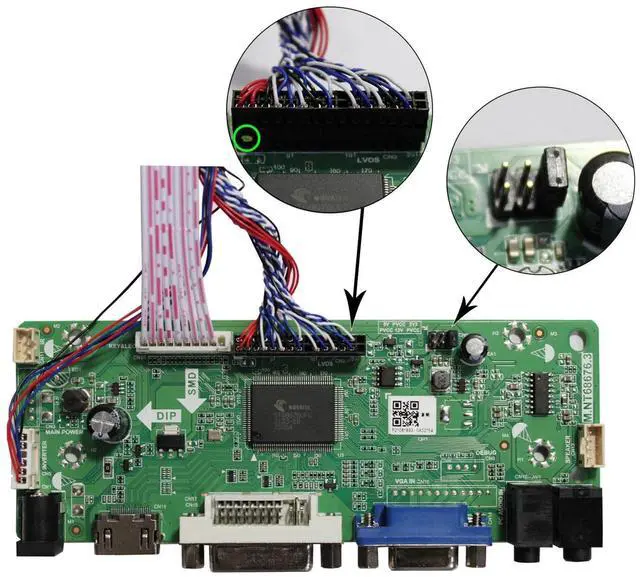

    • Plug and play Connecting the cables and ports according to link picture details ,Power on ,enter into H/D/VGA/DVI signal ,with correct resolution ,the screen can work well.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    LCD Controller Board: DVI VGA AUDIO LCD Board Work for LVDS Interface
    LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
    Model <1WVideo Input: DVI
    VGA
    Audio Input: Audio
    Output: Speaker

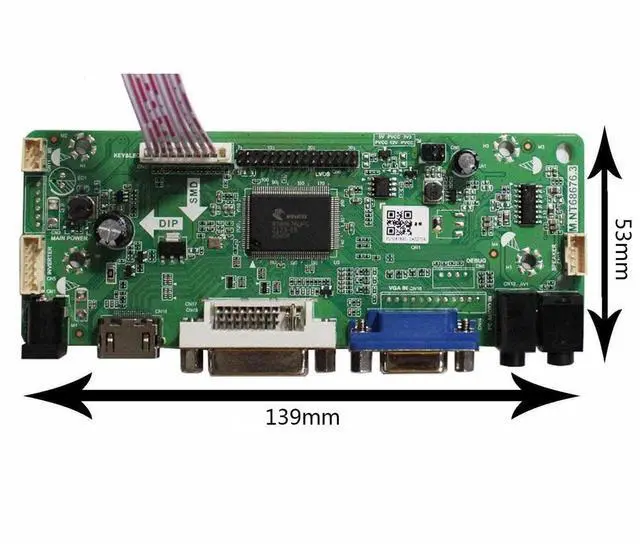

    ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 139mm x 53mm x 17mmCompatible
    Work With: 14inch

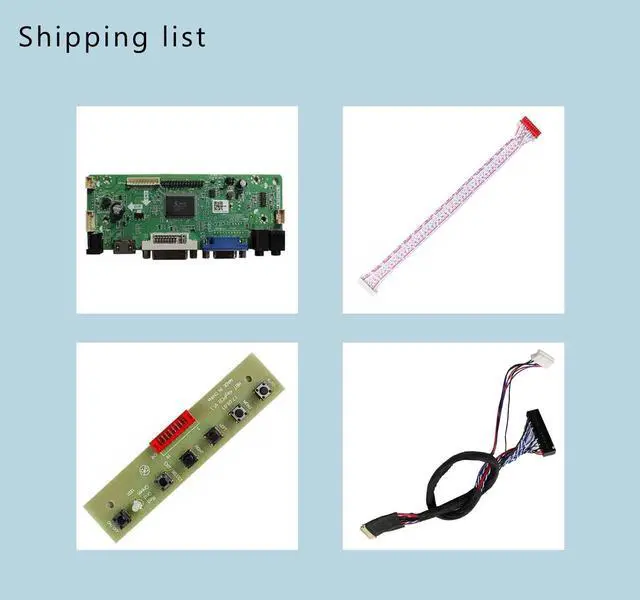

    1600x900: B140RTN 01.0 B140RW01 V. 0 LP140WD2-TLB140RTN02 N140O6 B140RW02 N140FGE-L 3117.3 inch 1600x900: LP173WD1 B173RW01 LTN173KT01-A01N173FGE-L21 N17306-L02 LTN173KT02 LTN173KT03-301Packing list: 1 VGA DVI LCD Controller Board M. NT686761 40Pin Signal Cable1 Keyboard With Cable
