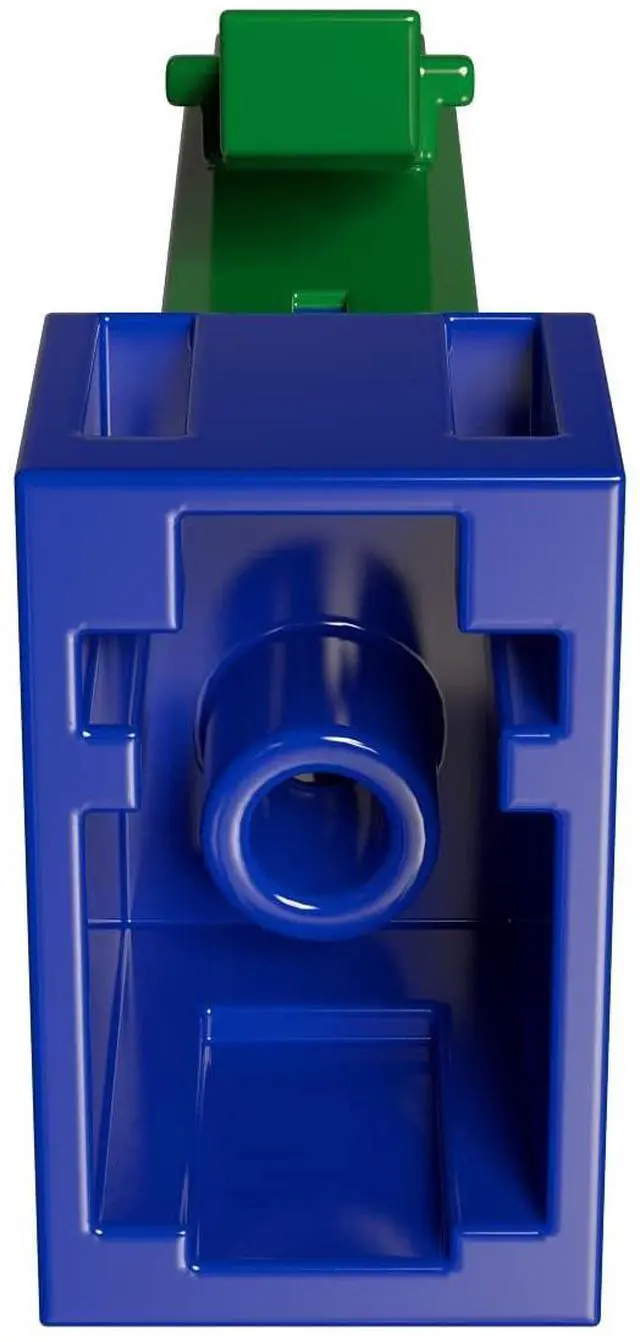

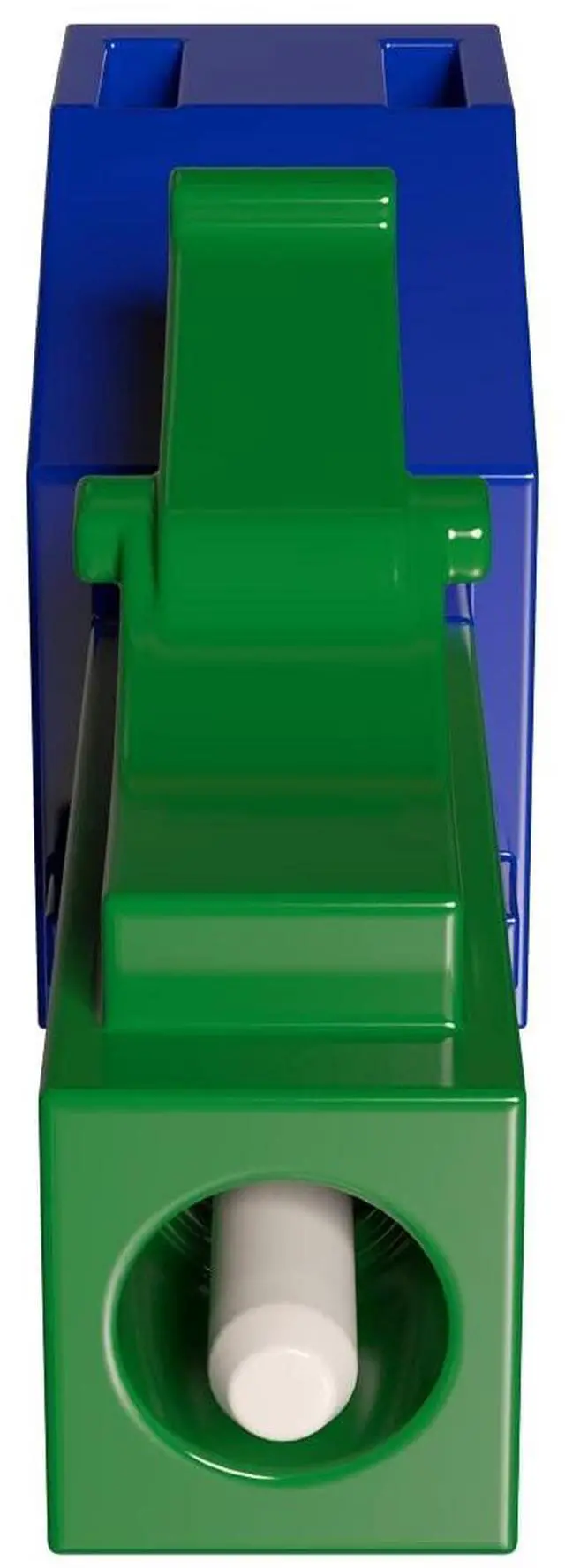

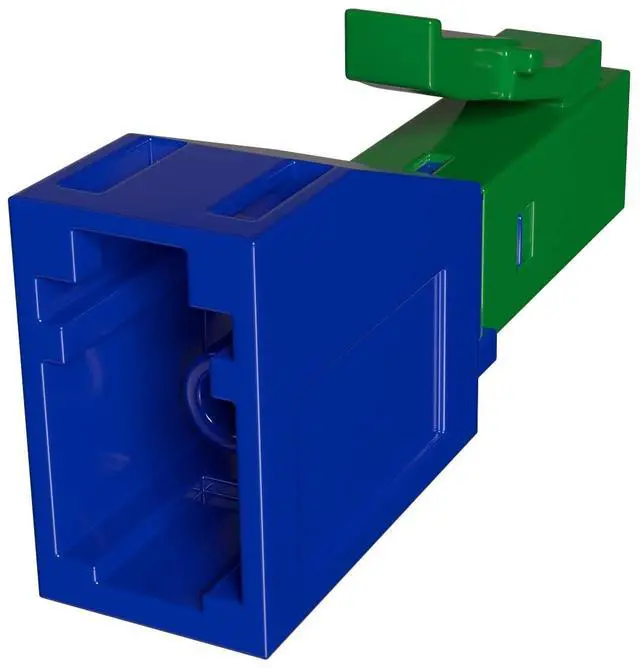

LC UPC Female to LC APC Angled Polished Male Fiber Optic Converter Single Mode SM 9/125 Hybrid Fixed 0dB, Metal Housing

With A PC connectors being used by most cable companies, other FTTX providers in outside plant applications, and passive optical applications (both GPO
Ns and passive optical LANs). Future higher-speed passive optical networks and other WDM applications that will use higher wavelengths via singlemode fiber will also likely require reduced return loss of A PC connectors. These connectors usually come in the green color. However, you cant plug them directly into most non-FTTx devices, such as fiber media converters, routers with fiber ports, switches, SFP modules, and so on. All this equipment requires LC UPC (blue) connectors. This is where ADnets LC to UPC adapters come in really handy it is a simple, fast, plug and play solution - just plug the LC A PC male side into A PC equipment, i.

e a fiber media converter, router, or switch, and plug the LC UPC patchcord into a female socket of the adapterThese are 0 dB loss devices, so no additional return or direct loss will be introduced into the whole fiber link. All These Important Features Are All Supported:
Type: Doped Fiber
Operation Wavelength (nm): 1310nm or 1550nm, Use a Single Mode Type only!
Attenuation (dB): 0
Connector Type: LC UPC female / LC A PC male Attenuation
Accuracy (dB):: +/- 0.5 dB
Return Loss (dB): PC>45, UPC>55, A
PC>65 Environment: Relative humidity; 5% to 90%
Operating temperature: -40 to +70
Celsius Dimensions: Check Out Dimensions Drawing In the Image GalleryQuestions during installation? Not sure it will work with your setup? We are always here to answer You and guide You through!
