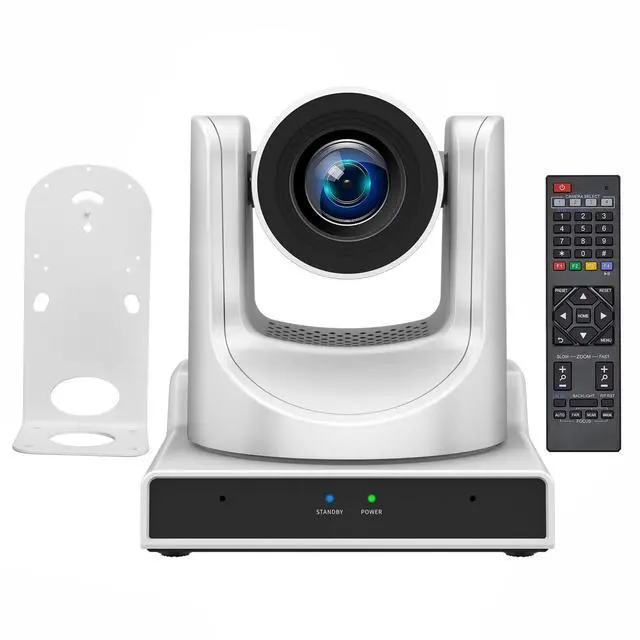

SMTAV PTZ Camera,20X NDI PTZ Camera with AI Tracking and HDMI/SDI/USB3.0/IP Streaming Outputs for Church,Conference,Events,Teaching

NDI PTZ Camera Spported 1080P60 FULL NDIachieved ultra high resolution and lossless image quality by network transmission.Technique of full interface and low latency -- All video output interface achieved low latency metrics. It supported transfering by 4 interfaces at the same time and 1080P60.
HDMI Camera is designed with rich ports to meet different usage environments, and supports 3G-SDI, HDMI, LAN, and USB output ports. Reduce the delay caused by the connection to ensure smooth and high-definition video. At the same time support live stream software. Easy and quick to complete the operation
SDI camera has undergone multiple generations of hardware upgrades, eliminating traditional technology and developing smart chips. Improved resolution and visual look and feel. The color is more realistic and the picture is clearer. smatv ptz camera provides the most professional camera for churches, conferences, education and live events
AI Tracking Camera--based on target's clothes,

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

PTZ Camera Sensor 1/ 2.8 -inch high-quality UHD CMOS sensor with a maximum of 2.07 million pixelsLens 20x, f 4.42 mm ~ f 132.6 mm, F 1.8 ~ F 2.8M inimal Illumination 0.5L ux @ (F 1.8, AGC ON)DNR 2D, 3D digital noise reductionVideo S/N 55dBH/V Angle of View 60.7 ~ 3.36 / 34.1 ~ 1.89H & V Flip SupportedImage Freeze SupportedPTZ Camera Number of Preset 255PTZ Camera Preset Accuracy 0.1A udio PTZ Camera Digital audio pickup Built-in dual microphone array, 100Hz to 16KHz frequency responseAnalog audio input Supported 3.5 mm Line-InNDI PTZ Camera Digital audio output Supported HDMI, USB, LAN, SDI, etc, adio outputAnalog audio output Supported 3.5 mm Line-OutUSB Featured PTZ Camera Operate System Windows 7 (only for 1080p and below), Windows 8.1, Windows 10 and up; macOS 10.10 and up; Google Chromebook Version 29.0.

1547.70 and up; Linux (only forUVC) Color System / Compression YUY2/MJPEG/H. 264Video Format Supported video format of multi frame rate and resolution ratio, up to 1080P60 YUY2 output. USB Video Communication Protocol UVC 1.1 or UVC 1.5UVC PTZ SupportedIP CameraVideo Compression H. 264Main Stream Resolution Max 1920x1080Sub Stream Resolution Max 1280x720Support protocols FULL NDI, NDIHX, TCP/IP, HTTP, RTSP, RTMP, Onuif, DHCP, Multicast, SRT, GB/T28281, etc. Input/Output InterfaceUSB 1-ch,
USB 3.0: Type-AHD Output 1x, HDMI: V 1.31 x, 3G-SDI: BNC type, 800mVp-p, 75, Comply with SMPTE 424M standardNetwork Interface 1xRJ 45:10 M/100M/1000M Adaptive Ethernet, supported PoEAudio interface 1x 3.5 mm Line In, 3.5 mm, 1x 3.5 mm Line Out, Communication Interface 1x,
RS232 In: VISCA/Pelco-D/Pelco-P, 1x, RS232 Out (VISCA network); 1x, RS485(VISCA/Pelco-D/Pelco-P)Power Jack JEITA TypeDC IN 12V
