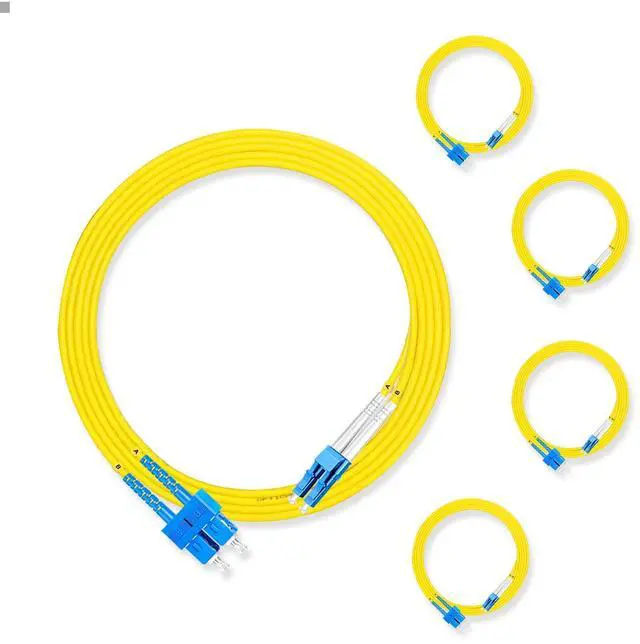

Lebrudos 5Pcs 3 Meter Fiber Optic Patch Cord SC UPC to LC UPC, Duplex Single Mode Fiber Cable Jumper OS2 G652D 9/125m, 1310nm/1550nm LSZH 3.0mm

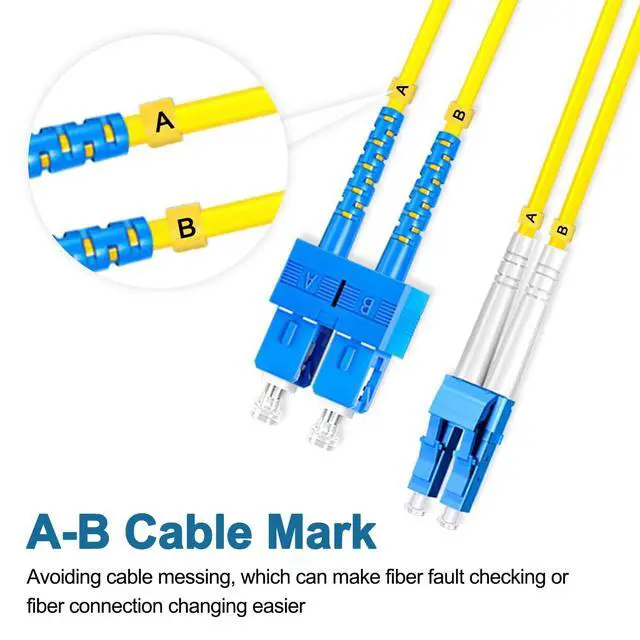

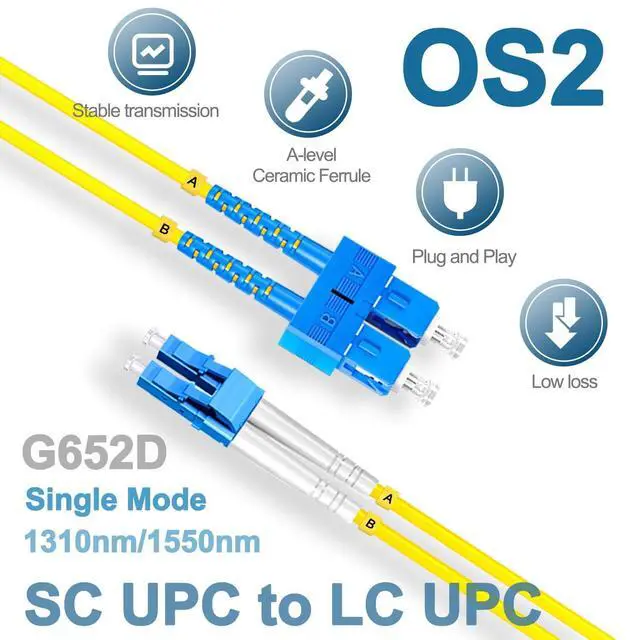

Main Parameters5Pcs 3 Meter ( 9.8 ft) SC UPC to LC UPC Single Mode Duplex OS2 Fiber Optic Patch Cord9/125 m G652D fiber core, which supports 1310nm/1550nm wavelength ^^ High PerformanceThe fiber patch cord 0.2 dB repeatability and interchangeability, 0.3 dB insertion loss, and 50dB return loss. The low insertion loss and high return loss ensure stable transmission. which can operates reliably in a temperature range of -20~70C. ^^ A-B Cable Mark the duplex fiber patch cable comes with A-B cable mark for distinguishing the fiber connection, which can make fiber fault checking or fiber connection changing easier.

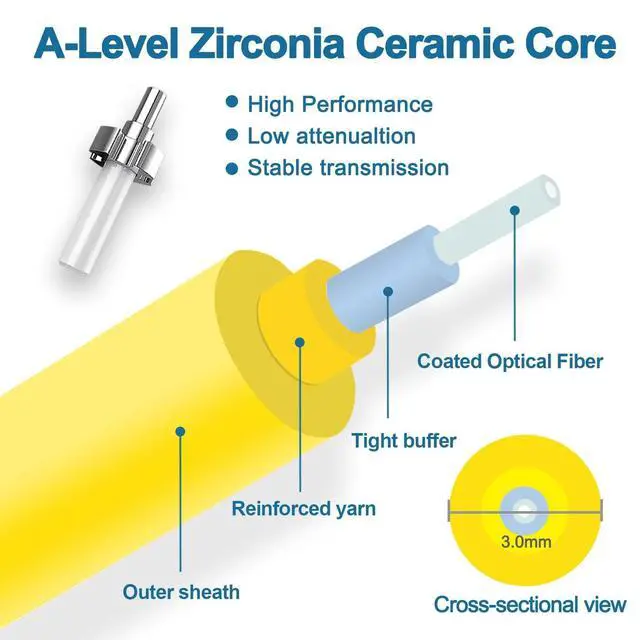

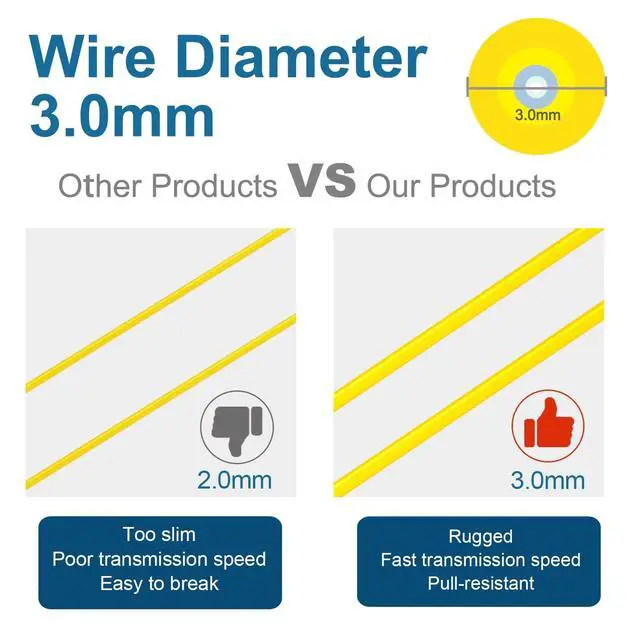

^^ 3.0 mm&LSZH Fiber Jacket The Fiber Optic Patch Cord is buffered to the specified size of 0.9 mm with LSZH material, and a para-aramid yarn is used as a strength member to wrap the 0.9 mm buffer layer. The 3.0 mm external LSZH jacket is used to protect the internal structure. It is equipped with an A-level zirconia ceramic ferrule, ensuring data transmission quality and providing good tensile performance and flame retardancy for the cable. ^^ OS2 9/125m FiberCompared to traditional Fiber Optic Patch Cords, the 9/125m OS2 bend-insensitive single-mode fiber optic patch cord has lower attenuation when bent or twisted, making installation and maintenance more efficient.

^^ Wide ApplicationOS2 fiber optic patch cords are suitable for various network connections, including SFP optical modules, and are widely used in data centers, enterprise networks, telecommunications rooms, servers, cloud storage networks, and other scenarios.
