$74.99
Meet Your Seller

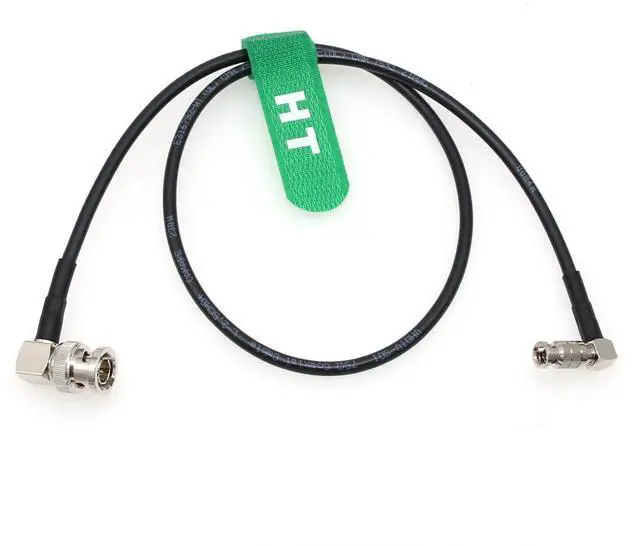

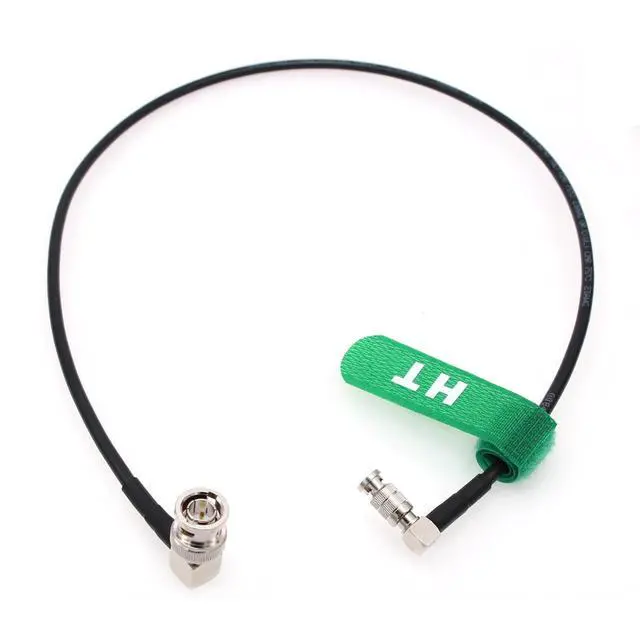

HangTon Micro BNC to BNC 6G SDI Video Cable for Blackmagic Video Assist 4K 5" Monitor, Micro Studio Camera 4K G2 DJI Lightbridge 2, Right Angle High Density HD Male 45cm
- 4K 6G 3G HD SDI video cable for Blackmagic Video Assist 5" 12G / 3G SDI monitor, for Blackmagic Micro Studio Camera 4K G2 and ATEM switcher, for DJI Lightbridge 2

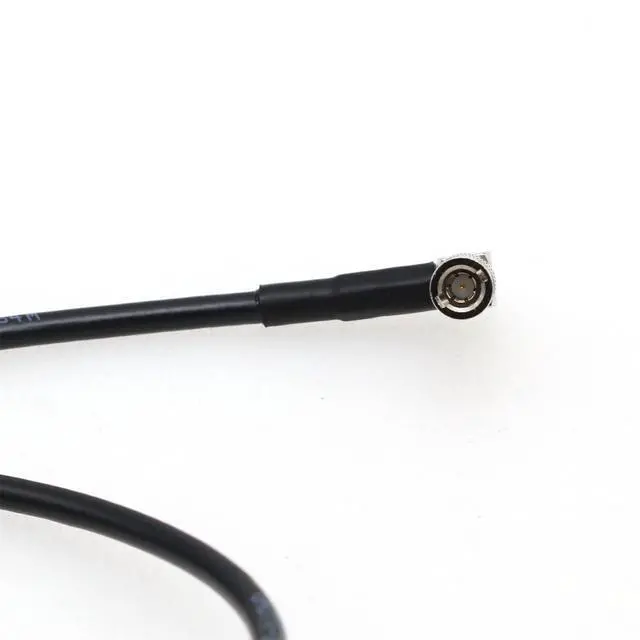

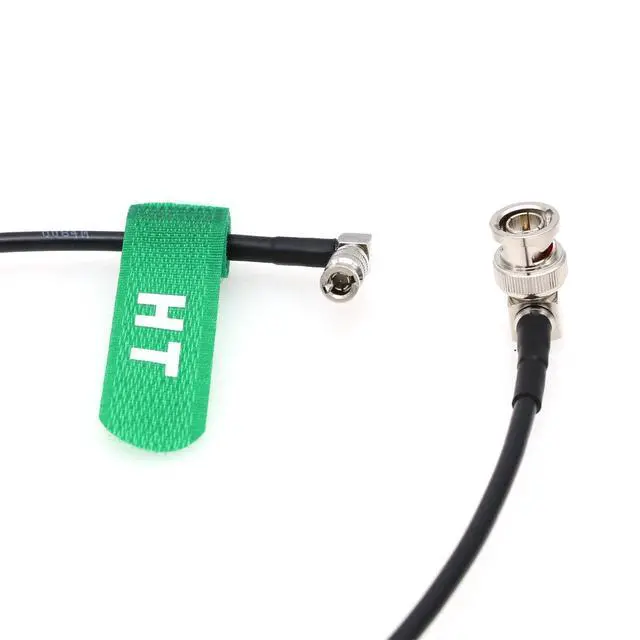

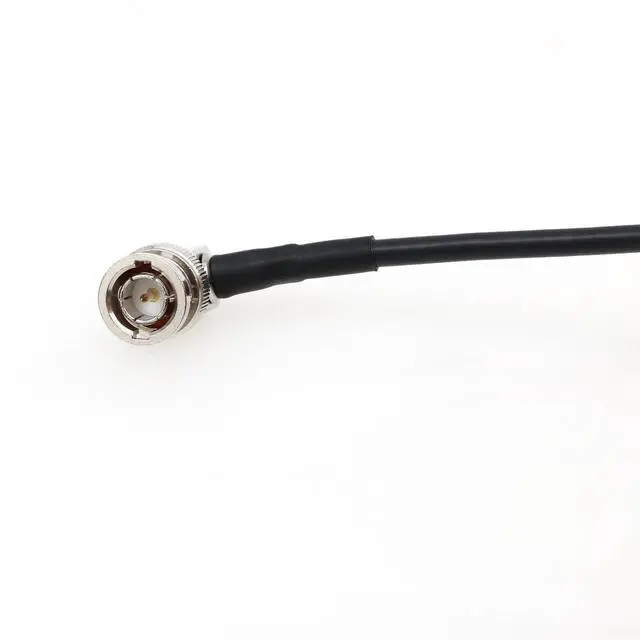

- Connectors right angle male micro BNC (high-density HD BNC) to 90-degree male standard full-size BNC. HD micro BNC is different from DIN 1.0/2.3 connector
- 75Ohm connectors and 75Ohm HD-SDI 6Ghz coaxial shielded cable. Support 4K@30fps, 3840 or 4096 x2160p@30/29.97/25/24/23.98HZ, 1920 or 2048 x 1080p@30/50/60HZ, 720p@30/50/60HZ resolution (not support 2160p50 2160p60 4K60). Meets SMPTE 424M, ST 2081-1 and ST2082-1 Standards
- SDI video cable for broadcast camera monitor, mobile broadcast, HD CCTV, digital audio cards and routers offering 4x the density of the standard BNC connector with the same reliable and secure bayonet locking mechanism
- Length 45cm / 18"
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
We make custom cables. 3G 6G SDI Video Cable HD Micro BNC to Male BNC for Blackmagic Micro Studio Camera 4K G2 and Video Assist 5"12G / 3G Monitor, 1080P60/50/30
