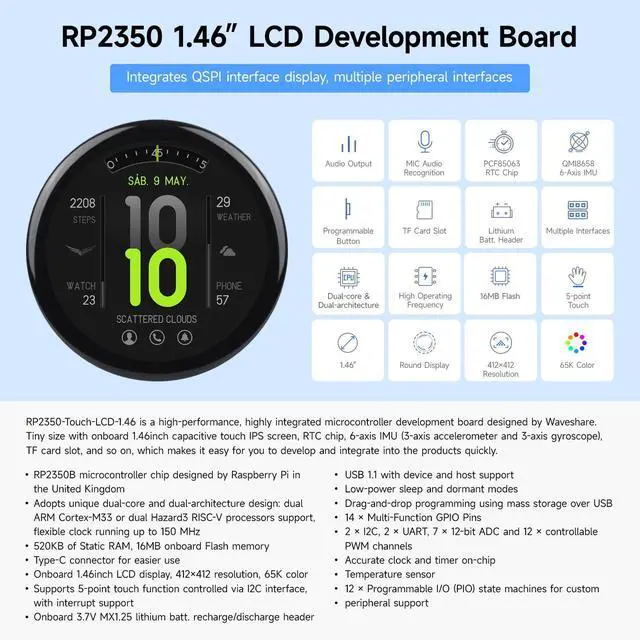

KLAYERS RP2350 All in One High-Performance Development Board with 1.46inch Round Display,480x480 IPS Capacitive Touchscreen, 6-Axis IMU, RTC, and Dual-Core ARM/RISC-V Processing,Without Cover Glass
- Powerful and Flexible Dual-Core Processing Heart: At its core is the Raspberry Pi-designed RP2350B microcontroller, offering a unique dual-core, dual-architecture design. Developers can leverage either dual ARM Cortex-M33 cores or dual Hazard3 RISC-V cores, running at speeds up to 150 MHz, providing exceptional computational power and architectural flexibility for complex applications.
- Exceptional System Integration and Onboard Peripherals: This board is a complete system-on-module, integrating a rich set of peripherals including a 6-axis IMU (accelerometer & gyroscope), a Real-Time Clock (RTC), a microSD (TF) card slot, a temperature sensor, and a lithium battery management header. This eliminates the need for multiple external components, accelerating product development.
- Rich I/O and Custom Peripheral Capabilities: It exposes 14 multi-function GPIO pins supporting a wide range of interfaces including 2x I2C, 2x UART, 7x 12-bit ADC, and 12x PWM channels. Most notably, it includ
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Powerful and
Flexible Dual-Core Processing Heart: At its core is the Raspberry Pi-designed RP2350B microcontroller, offering a unique dual-core, dual-architecture design. Developers can leverage either dual ARM Cortex-M33 cores or dual Hazard3 RISC-V cores, running at speeds up to 150 MHz, providing exceptional computational power and architectural flexibility for complex applications. ^^ Exceptional System Integration and
Onboard Peripherals: This board is a complete system-on-module, integrating a rich set of peripherals including a 6-axis IMU (accelerometer & gyroscope), a Real-Time Clock (RTC), a microSD (TF) card slot, a temperature sensor, and a lithium battery management header. This eliminates the need for multiple external components, accelerating product development. ^^ Rich I/O and

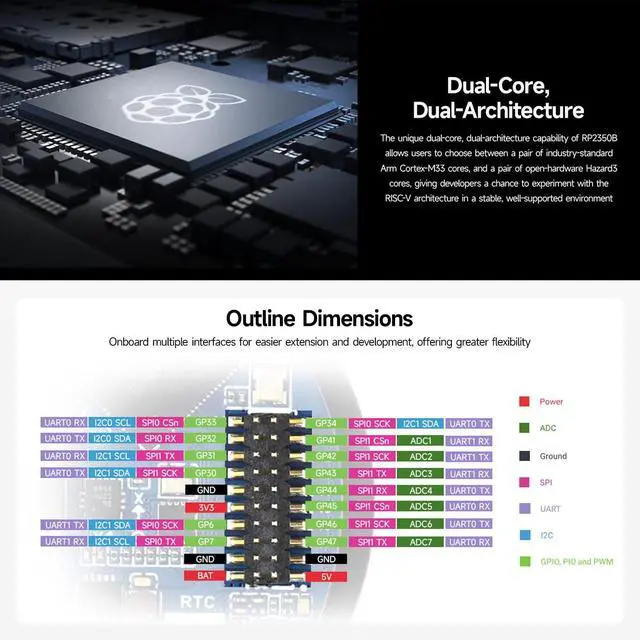

Custom Peripheral Capabilities: It exposes 14 multi-function GPIO pins supporting a wide range of interfaces including 2x I2C, 2x UART, 7x 12-bit ADC, and 12x PWM channels. Most notably, it includes 12 Programmable I/O (PIO) state machines, allowing you to create custom hardware interfaces and protocols, making it adaptable to virtually any sensor or peripheral. ^^ High-Resolution Round Display with

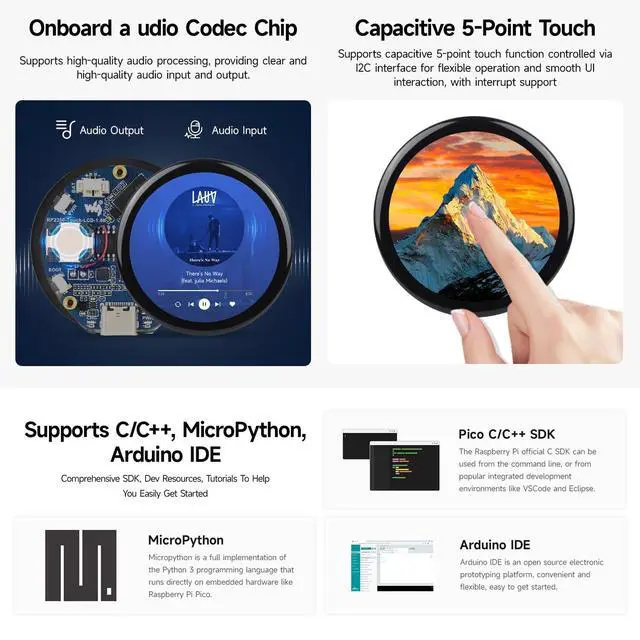

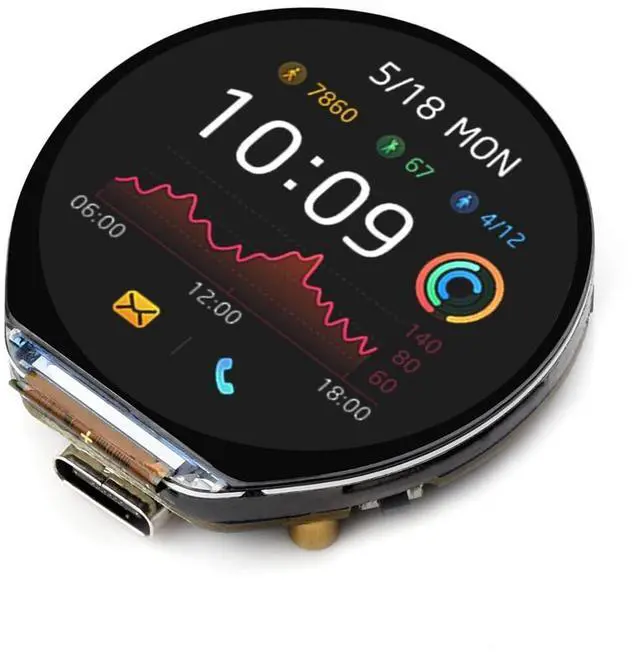

Advanced Touch: The board features a 1.46 -inch true 480x480 resolution IPS LCD panel, delivering sharp and vibrant 65K color visuals in a circular form factor. It supports a modern 5-point capacitive touch interface over I2C, enabling intuitive and multi-finger interactions for a superior user experience. ^^ Developer-Friendly Features for
Rapid Prototyping: Designed for ease of use, it features a USB Type-C connector for power and communication, drag-and-drop programming via Mass Storage Class, and low-power sleep/dormant modes. With 16MB of onboard Flash and 520KB Static Ram, it provides ample resources for sophisticated graphical and data-processing applications.
Flexible Dual-Core Processing Heart: At its core is the Raspberry Pi-designed RP2350B microcontroller, offering a unique dual-core, dual-architecture design. Developers can leverage either dual ARM Cortex-M33 cores or dual Hazard3 RISC-V cores, running at speeds up to 150 MHz, providing exceptional computational power and architectural flexibility for complex applications. ^^ Exceptional System Integration and
Onboard Peripherals: This board is a complete system-on-module, integrating a rich set of peripherals including a 6-axis IMU (accelerometer & gyroscope), a Real-Time Clock (RTC), a microSD (TF) card slot, a temperature sensor, and a lithium battery management header. This eliminates the need for multiple external components, accelerating product development. ^^ Rich I/O and
Custom Peripheral Capabilities: It exposes 14 multi-function GPIO pins supporting a wide range of interfaces including 2x I2C, 2x UART, 7x 12-bit ADC, and 12x PWM channels. Most notably, it includes 12 Programmable I/O (PIO) state machines, allowing you to create custom hardware interfaces and protocols, making it adaptable to virtually any sensor or peripheral. ^^ High-Resolution Round Display with
Advanced Touch: The board features a 1.46 -inch true 480x480 resolution IPS LCD panel, delivering sharp and vibrant 65K color visuals in a circular form factor. It supports a modern 5-point capacitive touch interface over I2C, enabling intuitive and multi-finger interactions for a superior user experience. ^^ Developer-Friendly Features for
Rapid Prototyping: Designed for ease of use, it features a USB Type-C connector for power and communication, drag-and-drop programming via Mass Storage Class, and low-power sleep/dormant modes. With 16MB of onboard Flash and 520KB Static Ram, it provides ample resources for sophisticated graphical and data-processing applications.
