SC SM 6Port Box +Cables Wall Mount Fiber Enclosure with Splicing Module and Loaded 6 Port SC-UPC Singlemode LGX Panel

Fiber Optic SC Kit 6-Port LGX Loaded Panel - Wall Mount Fiber Enclosure BoxComplete

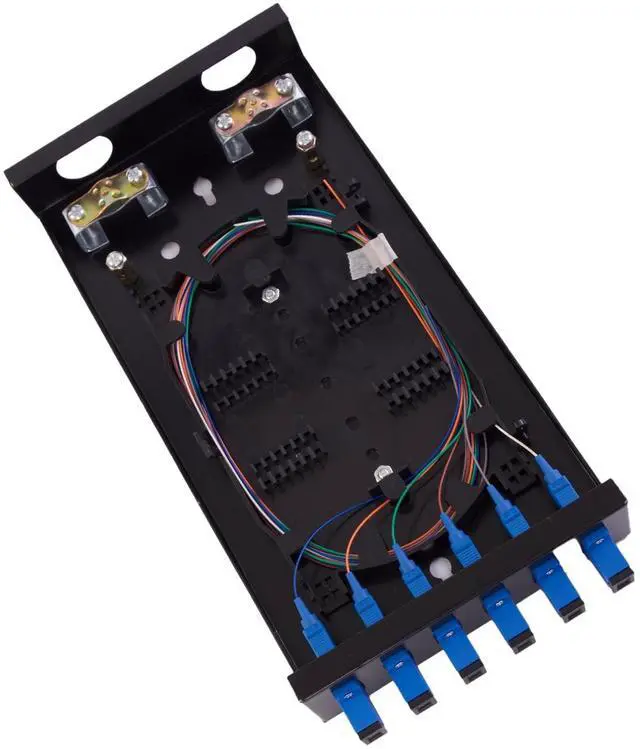

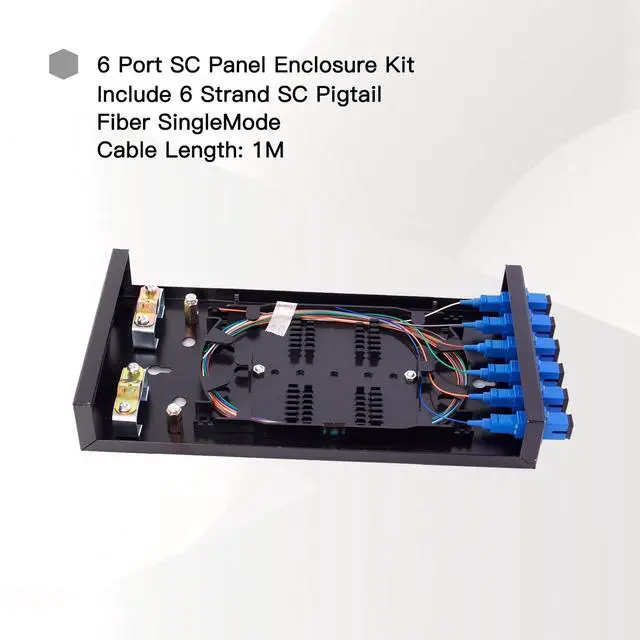

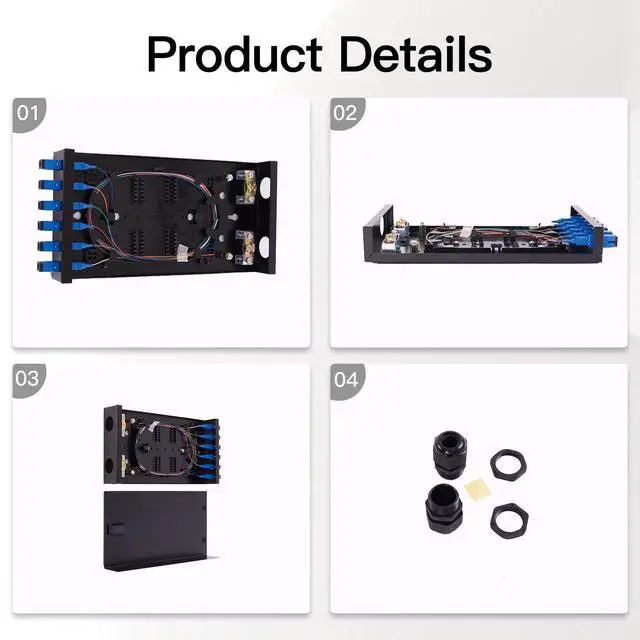

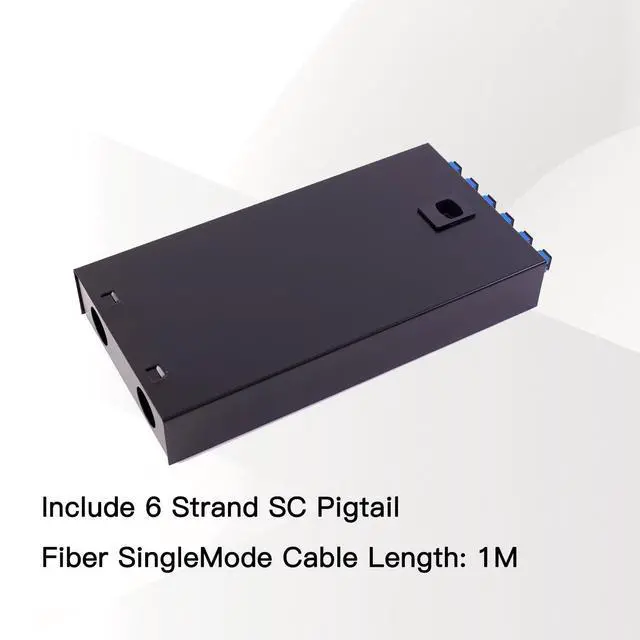

Accessory Set: - This comprehensive fiber optic SC kit includes a 6-port LGX loaded panel with all necessary accessories: 6 strands of SC singlemode pigtails and SC couplers. The optical fiber couplers are pre-configured, and the pigtail cables are neatly inserted, ensuring ease of use and organization.
Easy to Use: 1.
Secure and Versatile Enclosure: The fiber termination box features a fully enclosed fiber compartment, designed to blend seamlessly into wiring closets while providing exceptional security. It offers maximum flexibility, accommodating various types of fiber terminations. This wall-mount fiber enclosure supports both SC and LC connector types when used with compatible flanged couplers. 2.
Flexible Termination Solutions: Our fiber optic termination box allows for effortless deployment and versatility. Users are not restricted to choosing between SC or LC patch panels, as the enclosure supports both types, providing a comprehensive solution for diverse fiber termination needs. Cost-Effective and Built to
Last: 1.
Durable Construction: Constructed from commercial-grade materials, this SC fiber optic kit features SC connectors and an industry-standard OFNR PVC 2.0 mm zipcord cable jacket. It is compatible with all standard fiber optic equipment and connectors, making it suitable for indoor use. 2.
Compliance and

Specifications

: The kit adheres to ITU, UL, CE, IEC, TIA, and RoHS standards. It operates within wavelengths of 1310-1550nm, with a minimum bend radius of 5cm and an operating temperature range of -4 to 158F. The cable has a minimum bend radius of 15mm and a diameter of 2mm, ensuring reliable performance and durability.
Parameters: 1.
Fiber Type and

Specifications

: The kit includes 6 strands of singlemode 9/125 SC pigtails, with options for different connector types and lengths. It adheres to standards such as YD/T926I, ISO/IEC 11801, and TIA/EIA-568-B, offering flexibility in protecting and organizing fiber connections. 2.
Color-Coded Cables: Each of the 6 strands is individually color-coded, which simplifies installation and prevents incorrect patching. This feature saves time and enhances the accuracy of connections.
Applications: - Telecommunications and
Data Communications: Ideal for use in telecom and datacom networks.
- Storage Networks: Suitable for storage network applications.
- CATV & Multimedia: Perfect for cable TV and multimedia applications.
- Systems Integration: Effective for long haul, metro, and access networks. - Fiber to the (FTTX)
Testing: Utilized in various FTTX testing scenarios. This fiber optic SC kit offers a reliable, cost-effective solution for high-density fiber management, ensuring secure, organized, and efficient fiber connections in various applications.
