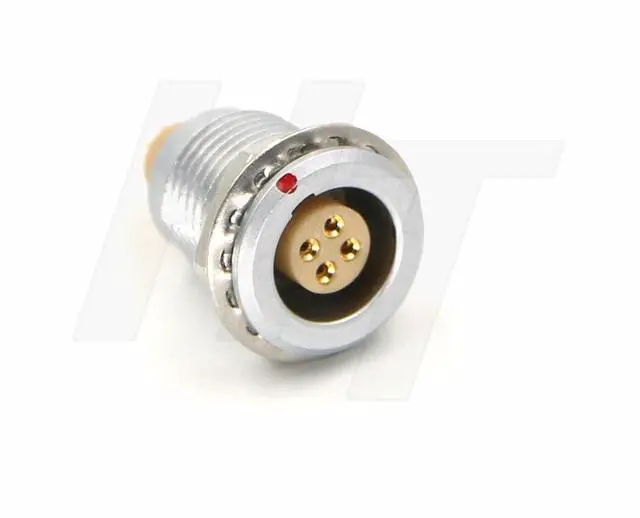

HangTon 0B Circular Push Pull Metal Connector Panel Mount Socket Egg 4 Pin Male Female Contacts (4P, Socket)
- 4 pin female socket connector, compatible for Lemo 0B.EGG.304
- Quick connect, female panel mount socket, solder termination, IP50 rating, circular metal aviation push-pull self-locking connector. Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance
- For data and power, medical equipment, test equipment, machinery, audio and video devices, broadcasting, telecommunications and military
- Rated current: 7 Amps. AWG wire size: 28 - 22, cable diameter: 2.5mm-5mm
- Contact diameter: 0.7 mm, stranded conductor section: 0.56 mm^2 (AWG 22)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

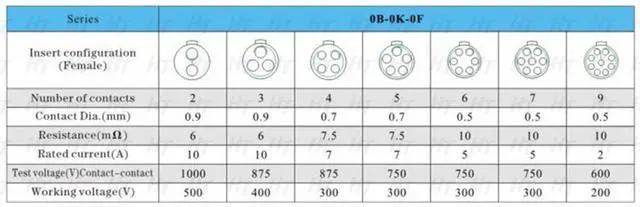

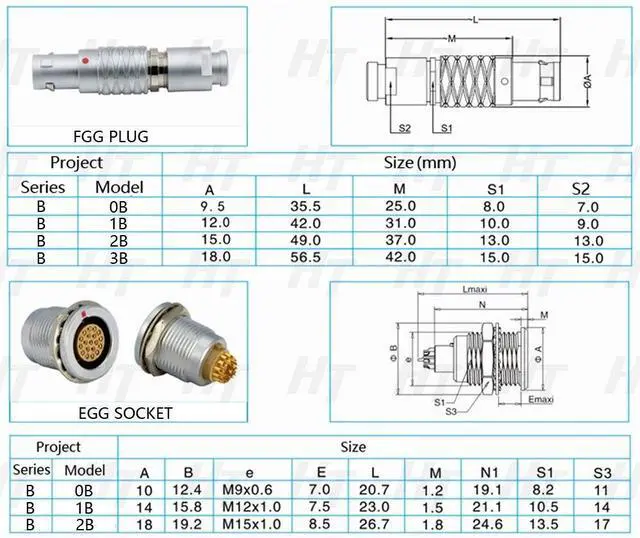

Compatible for LEMO 0B FGG EGG FSG FHG PHG connectors.
Contacts: 2 3 4 5 6 7 9Wire diameter max:
2-3pin: 20AWG
; 4-5pin: 22AWG
; 6-9pin: 28AWG
Cable Outer Diameter Range: 2mm-5mmProtection
Rating: IP50Shell
Material: Brass chrome platedContact
Material: Brass
gold platedTermination: SolderMating
Cycle: >4000 timesTemperature
Range: -45~+125We also supply all kinds of circular connectors( plug, panel mount socket, free socket, male or female contact, straight or right angle style, black / blue / golden / white anodized).
Features: In the harsh environment can provide a safe and reliable connection. 0B (buckle coupling) metal aviation push-pull self-locking connector is ideal for Medical Electronics, Test and Laboratory Equiment, Measurement Instrumentation, Data and Telecom Systems, Audio and Video Applications, Military and Aerospace, Industrial Controls, Machinery, used to transfer data and supplying power.
Contacts: 2 3 4 5 6 7 9Wire diameter max:
2-3pin: 20AWG
; 4-5pin: 22AWG
; 6-9pin: 28AWG
Cable Outer Diameter Range: 2mm-5mmProtection
Rating: IP50Shell
Material: Brass chrome platedContact
Material: Brass
gold platedTermination: SolderMating
Cycle: >4000 timesTemperature
Range: -45~+125We also supply all kinds of circular connectors( plug, panel mount socket, free socket, male or female contact, straight or right angle style, black / blue / golden / white anodized).
Features: In the harsh environment can provide a safe and reliable connection. 0B (buckle coupling) metal aviation push-pull self-locking connector is ideal for Medical Electronics, Test and Laboratory Equiment, Measurement Instrumentation, Data and Telecom Systems, Audio and Video Applications, Military and Aerospace, Industrial Controls, Machinery, used to transfer data and supplying power.
