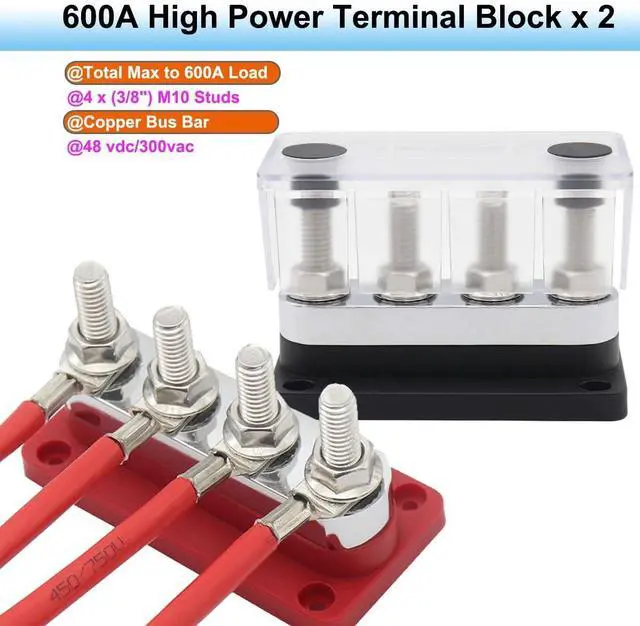

T Tocas 600 Amp Busbar,4*M10 Studs (3/8") Module Design Block Bus Bar with Cover Red&Black, 600A
- Max Voltage: 48V DC,Max Amperage: 600 Amps ,this battery distribution block will be suitable for both AC and DC systems

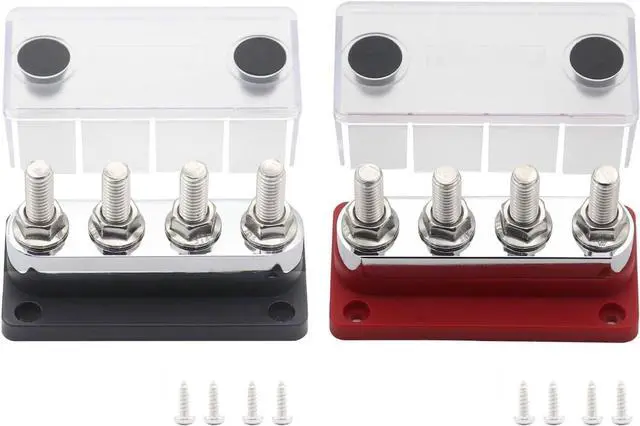

- Terminals: Bus bar 12v includes - M10 (3/8") terminal studs x 4, two power bus bars in the package - one positive bus bar and one ground bus bar

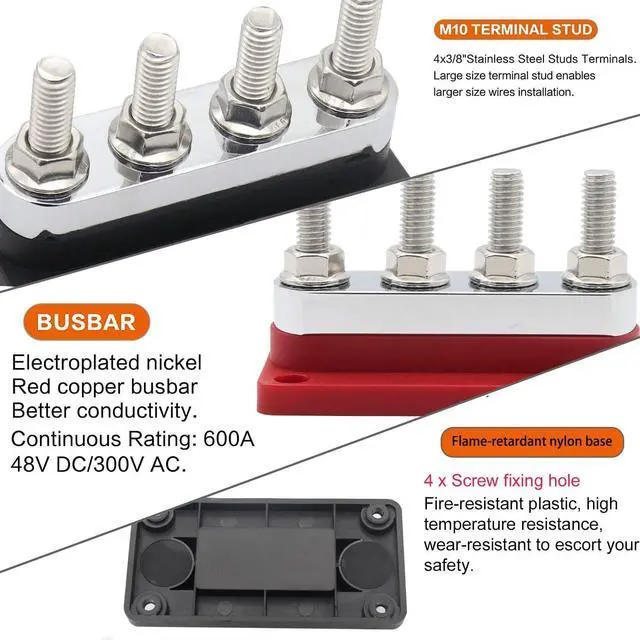

- Material: Nylon, Glass Fiber reinforced. Bus Material: Brass, Nickel plated,The base is made of flame-retardant

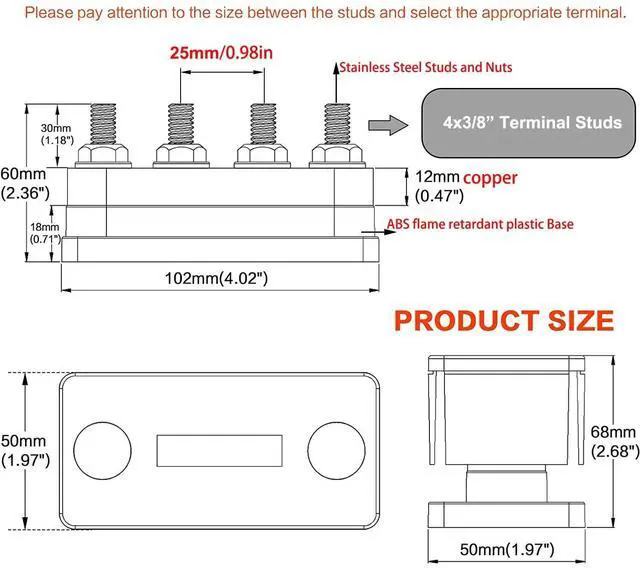

- Dimensions (L x W x H): 4.02X 1.97 X 2.36inch( 102X 50X 60mm),surface screw fixed installation, four mounting holes make this terminal block easier to be mounted in any orientation

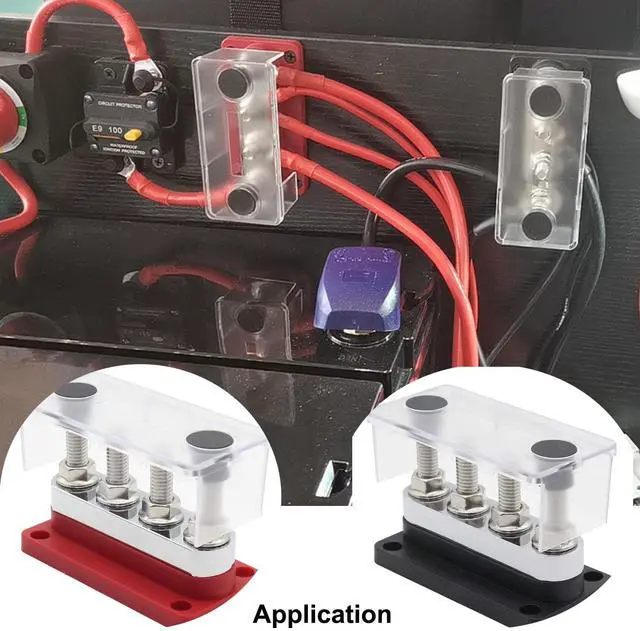

- Widely Used: The Junction block is widely used in12V-48V auto marine, boats, Trailers, trucks, RVs and so on
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Max Voltage: 48V DC, Max
Amperage: 600 Amps, this battery distribution block will be suitable for both AC and DC systems ^^
Terminals: Bus bar 12v includes - M10 (3/8") terminal studs x 4, two power bus bars in the package - one positive bus bar and one ground bus bar ^^
Material: Nylon, Glass Fiber reinforced.
Bus Material: Brass, Nickel plated, The base is made of flame-retardant ^^ Dimensions (L x W x
H): 4.02X 1.97 X 2.36 inch ( 102X 50X 60mm), surface screw fixed installation, four mounting holes make this terminal block easier to be mounted in any orientation ^^
Widely Used: The Junction block is widely used in12V-48V auto marine, boats, Trailers, trucks, RVs and so on
Amperage: 600 Amps, this battery distribution block will be suitable for both AC and DC systems ^^
Terminals: Bus bar 12v includes - M10 (3/8") terminal studs x 4, two power bus bars in the package - one positive bus bar and one ground bus bar ^^
Material: Nylon, Glass Fiber reinforced.
Bus Material: Brass, Nickel plated, The base is made of flame-retardant ^^ Dimensions (L x W x
H): 4.02X 1.97 X 2.36 inch ( 102X 50X 60mm), surface screw fixed installation, four mounting holes make this terminal block easier to be mounted in any orientation ^^
Widely Used: The Junction block is widely used in12V-48V auto marine, boats, Trailers, trucks, RVs and so on
