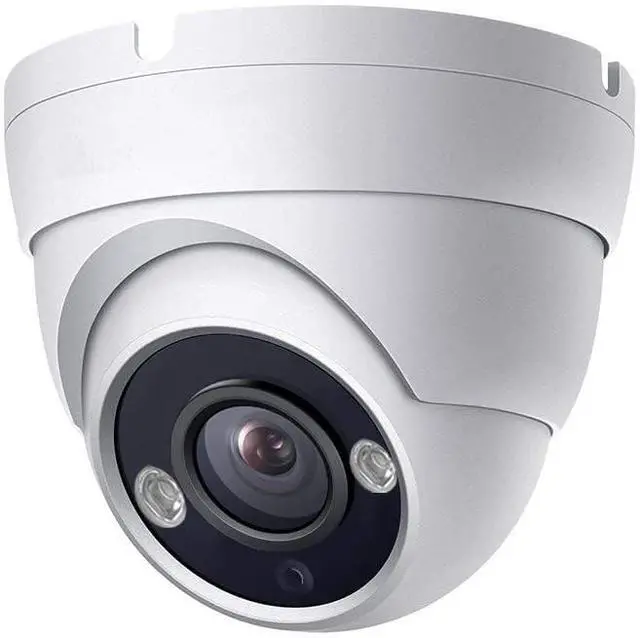

Real HD 5MP Analog Coax Dome TVI CVI CCTV Surveillance Security Camera, 2.8mm 100 Wide Viewing Angle, 65ft IR Night Vision, Outdoor, Full Metal Housing, ONLY Compatible with 5MP and 8MP DVR
- ONLY Works with 5MP and 8MP 4K DVR- This camera does NOT work with 4MP or lower resolution DVR, only work with 5MP or 4K 8MP DVR. This camera is 5 Megapixels high definition HD TVI/CVI/AHD/960H(1000 TVL), 65ft IR night vision range. It has a 2.8mm Fixed lens with 100 degree wide Field of View (FOV) to cover large areas
- Compatible with Most Brand CCTV System- This camera supports 5MP HD-TVI, HD CVI, AHD and 960H 1000TVL. Video format can be switched according to your DVR type.
- DIP Switch- Easy switch of your camera video output format (TVI/CVI/AHD/CVBS).
- Indoor and outdoor use weatherproof- This camera works indoor and order, come with IP66 weather-rated full metal housing, operating temperature is -40F ~ 140F
- Motion Detection and Remote ViewNote: This security camera does not come with recording or remote view feature by itself, but it is compatible with most 5MP or 8MP DVR that has motion detection or remote view feature. Video mode can be switched base on the DVR video mo
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HD-5EB28WAYou must know before you buy: 1. This 4-in-1 security camera requires a DVR for recording video. It supports 5MP or 4K 8MP TVI DVR, HD CVI DVR, AHD DVR, and 960H DVR. It does not support IP NVR. 2. In TVI, CVI, AHD DVR Mode, camera resolution is 5MP. In CVBS (960H) mode, resolution is 1000TVL. 3. Camera resolution is 5MP. If connect to 3MP, 1080P, 720P DVR or 960H DVRS, it wont work. Please make sure your DVR supports 1080P TVI/CVI/AHD signal input otherwise switch camera to Analog. 4. If need to remote view by App, customer needs to use the APP of DVR
Technical Parameters: - 1/ 2.9" color CMOS sensor-
Resolution: 5MP- 65ft
IR Range- TV System: NTSC-
Video Output: HD-TVI (5MP), (AHD/TVI/CVI/CVBS)-
Day &Night: Support (ICR) -
Frame Rate: 25fps (50HZ), 30fps (60Hz) -
Min illumination: 0.1 lux (LED ON) 0.01 lux(0-3 lux
LED)- S/N Ratio: >52dB (AGC off) -
Electronic Shutter: Auto 1/50s (1/60s)-1/ 100.000 s-
White Balance: Auto -
Gain Control: Auto- Weatherproof for indoor/outdoor-
Power Supply: DC12V 1000mA4 in 1 video model, provides flexible for your security applicationsHD-TVI/ CVI/AHD/960H technology delivers zero latency HD video over RG59 coax or any standard analog CCTV cabling up to
300. With convenient DIP Switch control of settings over coax cabling, you can eliminate the need for a separate cable.
Note: This camera does not have recording or remote view feature, require DVR for recording, not wireless and do not support mobile view. Default mode is HD AHD, if you are using other type of DVR, like Analog DVR, please switch the video type follow the user manuals.
Package included: 1 x Dome camera1 x Bag of mounting screws1 x Installing Template1 x Manual
Technical Parameters: - 1/ 2.9" color CMOS sensor-
Resolution: 5MP- 65ft
IR Range- TV System: NTSC-
Video Output: HD-TVI (5MP), (AHD/TVI/CVI/CVBS)-
Day &Night: Support (ICR) -
Frame Rate: 25fps (50HZ), 30fps (60Hz) -
Min illumination: 0.1 lux (LED ON) 0.01 lux(0-3 lux
LED)- S/N Ratio: >52dB (AGC off) -
Electronic Shutter: Auto 1/50s (1/60s)-1/ 100.000 s-
White Balance: Auto -
Gain Control: Auto- Weatherproof for indoor/outdoor-
Power Supply: DC12V 1000mA4 in 1 video model, provides flexible for your security applicationsHD-TVI/ CVI/AHD/960H technology delivers zero latency HD video over RG59 coax or any standard analog CCTV cabling up to
300. With convenient DIP Switch control of settings over coax cabling, you can eliminate the need for a separate cable.
Note: This camera does not have recording or remote view feature, require DVR for recording, not wireless and do not support mobile view. Default mode is HD AHD, if you are using other type of DVR, like Analog DVR, please switch the video type follow the user manuals.
Package included: 1 x Dome camera1 x Bag of mounting screws1 x Installing Template1 x Manual
